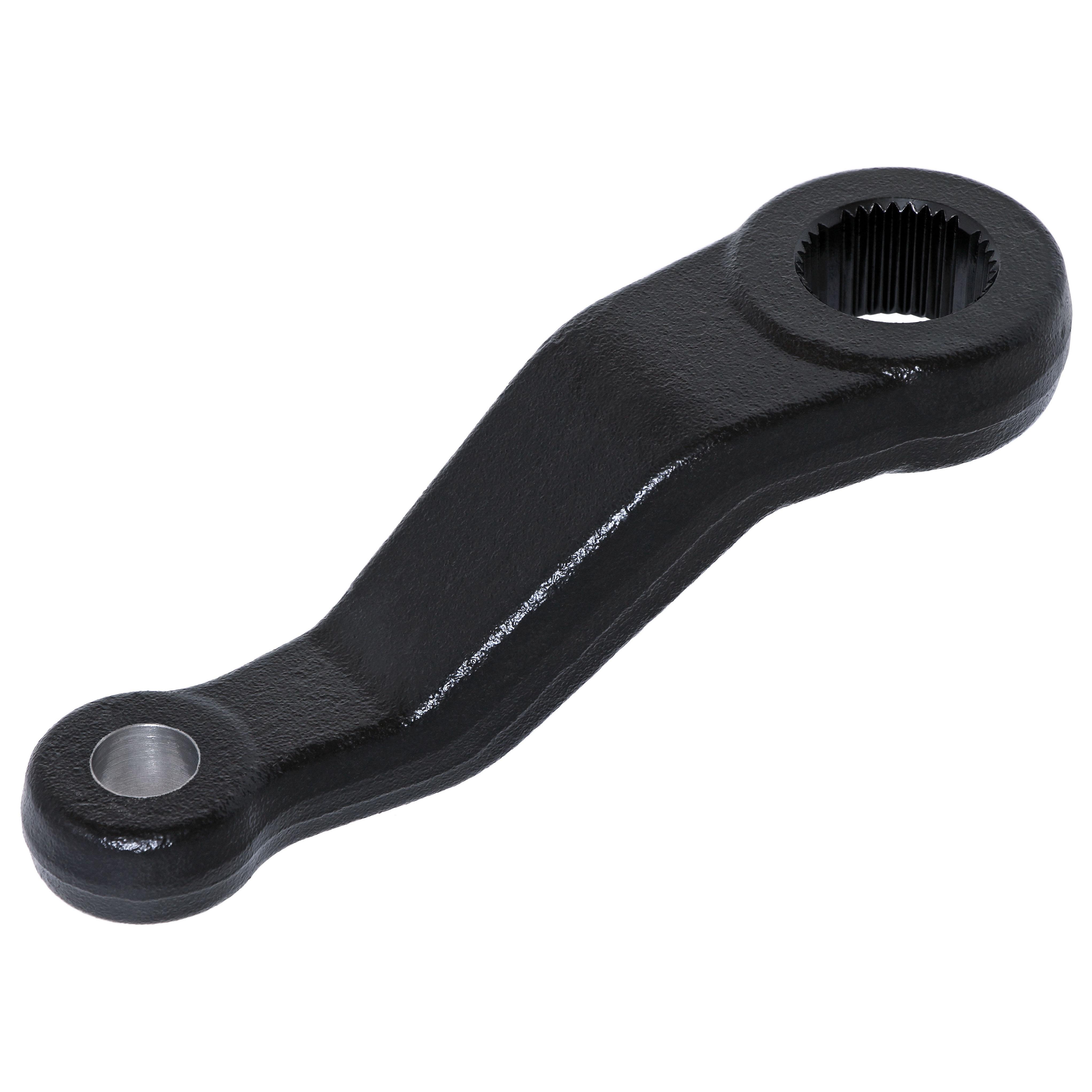

RJ-436100-1 - TJ/LJ/XJ/MJ/ZJ Pitman Arm w/ JK Taper

A JK axle swap into a TJ/LJ/XJ/MJ/ZJ will, among other necessary component needs (included in our RJ-420000-101 kit), require a way to attach the the steering! This pitman arm bolts to a TJ/LJ/LJ/XJ/MJ/ZJ steering box, but features the tapered hole specs. of a JK, so that a JK taper tie rod end will bolt-in properly.

Kit Fits:

• TJ Wrangler - All Models (when needing to attach JK steering)
• TJ Wrangler Unlimited (LJ) - All Models (when needing to attach JK steering)
• XJ Cherokee - All Models (when needing to attach JK steering)
• MJ Comanche - All Models (when needing to attach JK steering)
• ZJ Grand Cherokee - All Models (when needing to attach JK steering)

Kit Includes:

• (1)  Pitman Arm

Fitment Specs.:

• For use with factory JK taper steering rod ends
• Will fit a TJ/LJ/XJ/MJ/ZJ steering box, but note that this pitman arm mimics the drop of a TJ/LJ pitman arm. Factory XJ/MJ/ZJ pitman arms had 1 in. deeper drop than a TJ/LJ pitman arm.

Component Specs.:

• Material  =  forged steel
• Spline  =  TJ/LJ/XJ/MJ/ZJ steering box (1.215 in. ID)
• Taper  =  stock Jeep JK

Notes:

• Intended for use with 0 in.–4 in. of lift
• Be aware, in factory applications, a TJ/LJ pitman arm is 1 in. shallower drop than a factory XJ/MJ/ZJ pitman arm
