• RJ-232200-101 - Antirock Sway Bar Fabricated Steel Arms (21 in. Long, Bent)

RJ-232200-101 - Antirock Sway Bar Fabricated Steel Arms (21 in. Long, Bent)

Details

Details

21 in. Fabricated Steel Antirock Sway Bar Arms are available separately for custom builders or as upgrade parts for existing kits.
These arms would be replacements for our Jeep JK Wrangler rear Antirock kit.

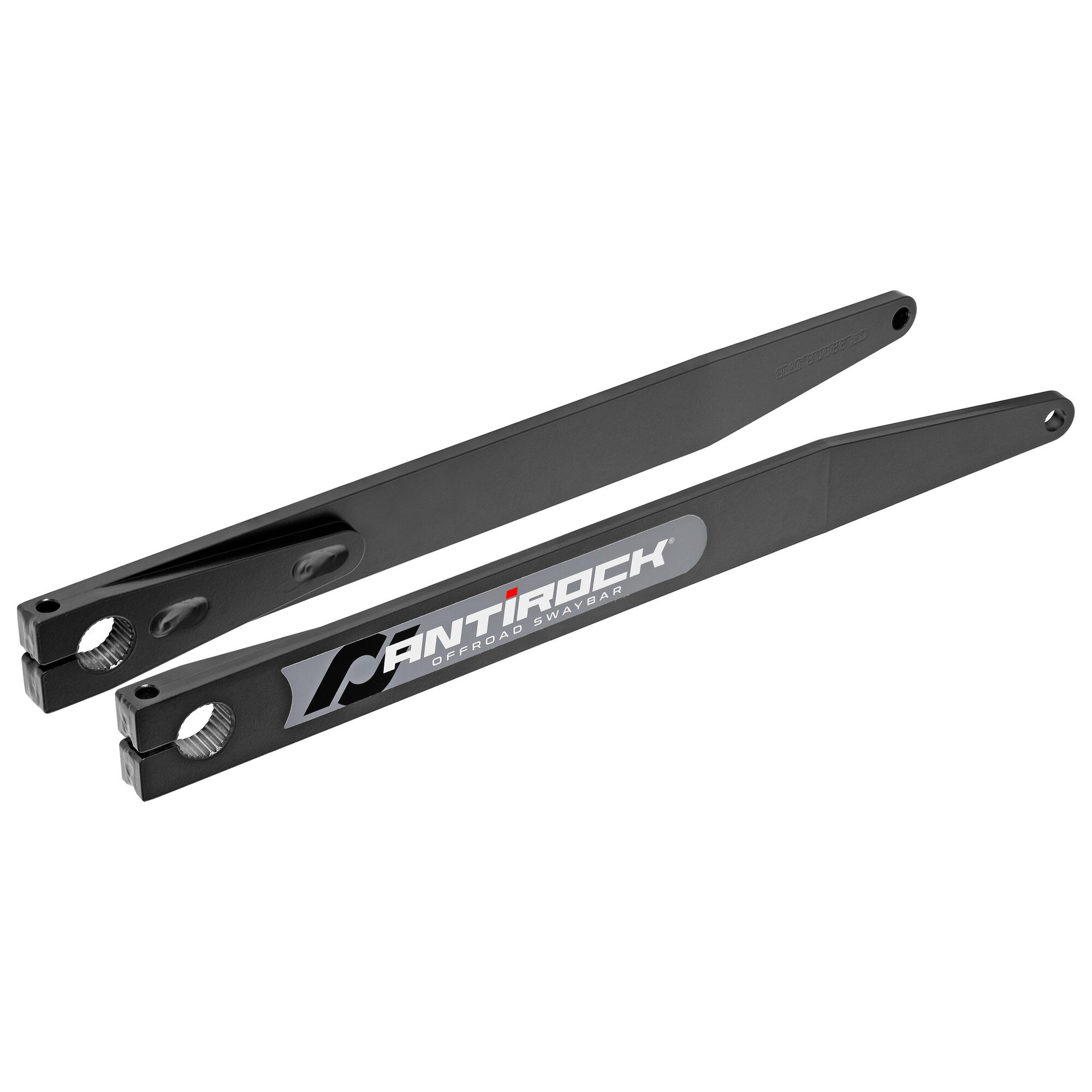

Arms are laser cut, formed and welded steel, 21 in. long, 3/8 in. thick and feature a slight bend at the tip (see product's photo gallery).


Arms Fits:

  • JK Wrangler (2-door) – R Antirock Sway Bar Kit
  • JK Wrangler Unlimited (4-door) – R Antirock Sway Bar Kit
  • Universal Applications

Kit Includes:

  • 21 in. Antirock Sway Bar Arms (pair)
  • Arm Stickers (pair)

Component Specs.:

  • Overall length  =  21 in.
  • Thickness  =  3/8 in.
  • Material  =  laser cut steel

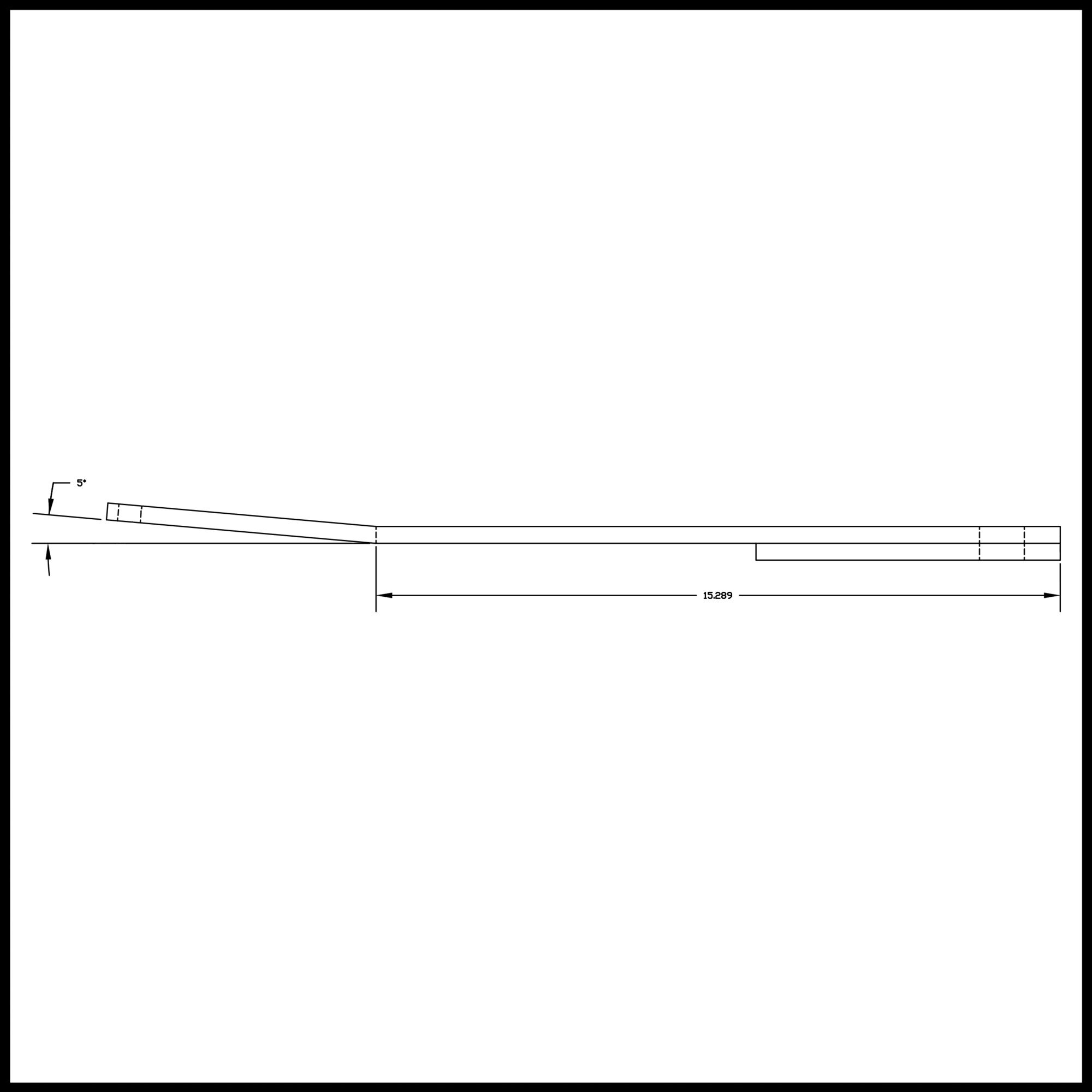

  • Bend  =  5 degrees outward, 6 in. inward from the small tip end (see product's photo gallery)
  • Spline count  =  25
  • Center of splined hole to center of 1/2 in. hole = 19.50 in.
  • Weight  =  9lbs. (for the pair)

Notes:

  • For use with any 25 spline torsion bars that we offer, however, these arms are NOT for use with our sway bar or our sway bar.
  • These are the replacement arms for our JK rear Antirock kits
  • An additional hole can be drilled at the end of these arms to allow for the use of our Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
  • See for arm hardware pack.
