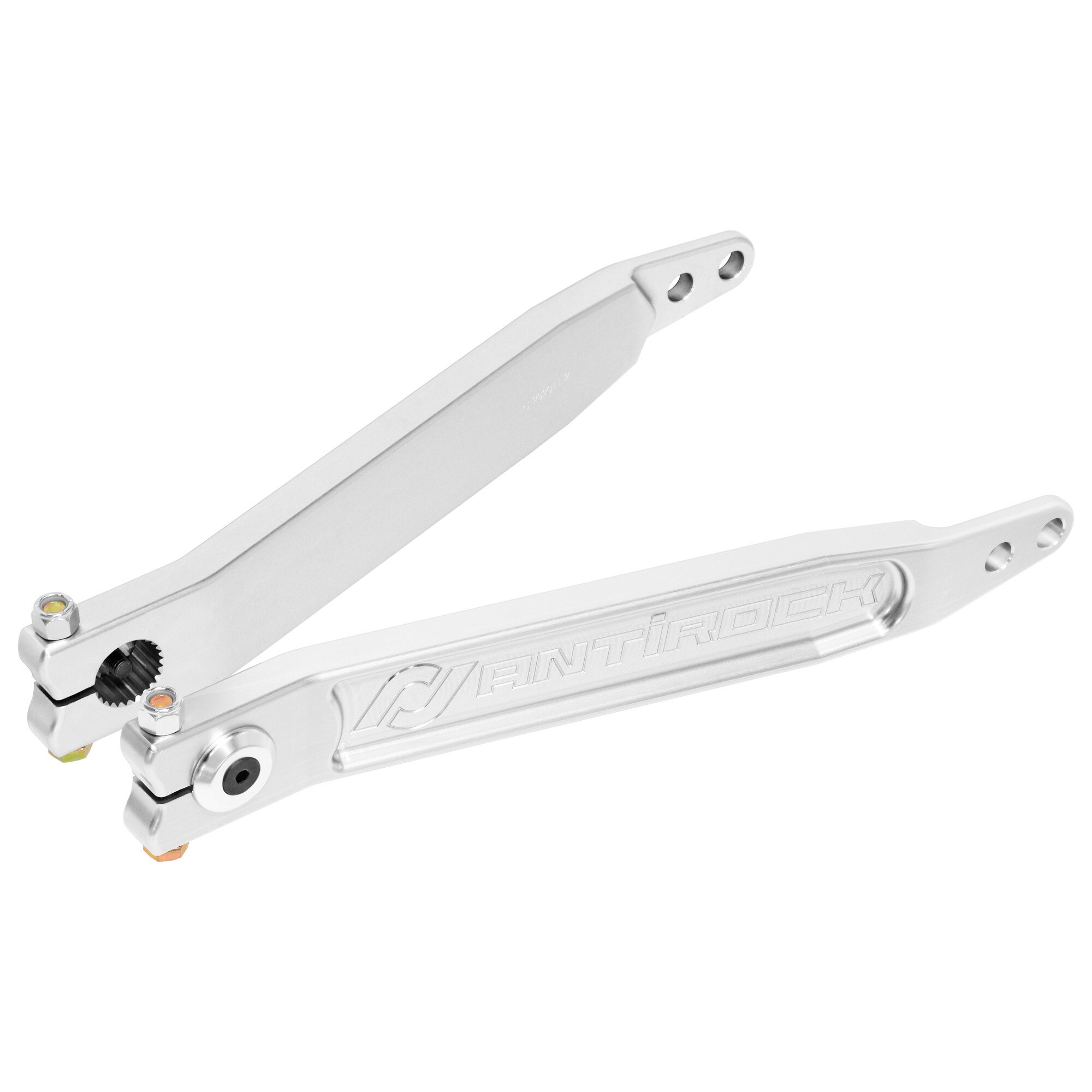

RJ-202011-101 - Antirock Sway Bar Billet 7075 Aluminum Arms (15 in.)
Details
Billet Aluminum Antirock Sway Bar Arms are beautifully constructed, yet offer race quality strength for aggressive off road applications!
Made entirely in house on our own machines, we start with premium 7075T6 aluminum material, CNC machine the arms to shape, CNC machine the pocketed design and the logo etchings, broach the 25 splines and finish them off in clear anodizing!
These specific arms are 15 in. long from tip to tip, 3/4 in. thick and feature a 2 1/2 in. offset bend to provide clearance in applications where it’s needed. At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars. Our billet aluminum finishing washers and flat head allen bolts that thread into the end of the sway bar torsion bar are also included, as well as the arm-to-torsion-bar pinch bolts and nuts.
At the end link mounting end, the arms trim down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.
Arms Fit:
- Universal Application (in 25 spline torsion bar applications)
- JL/JT front Antirock Kit (CE-9900JLF)
- JL/JT front Antirock Kit (RJ-246100-101)
- JL/JT front Antirock Kit (RJ-246100-103)
- JK front Antirock Kit (CE-9900JKF)
- JK front Antirock Kit (RJ-236100-101)
Kit Includes:
- (1) Pair of 15 in. long Billet Aluminum Antirock Sway Bar Arms
- (1) Arm Hardware Pack
Component Specs.:
- Overall length = 15 in. (measured on a flat plane)
- Material = 7075T6 aluminum
- Thickness: = 3/4 in. (3/8 in. at the tip where end links mount)
- Offset = 2 1/2 in.
- Spline count = 25
- Center of splined hole to center of nearest 1/2 in. hole = 11.75 in.
- Center of splined hole to center of farthest 1/2 in. hole = 12.75 in.
- Weight = 2.15 lbs. (for the pair)
