• CE-9904-18M - Antirock Aluminum Arms (18 in. Long, Thin Body)

CE-9904-18M - Antirock Aluminum Arms (18 in. Long, Thin Body)

Details

Details

For those looking for maximum cool factor for their off-road or rock crawling rig, RockJock’s CNC machined 6061T6 aluminum Antirock Sway Bar Arms have got you covered!
Available in various lengths and shapes to suite different builds and applications, the billet aluminum construction provides high-end, custom look that adds a nice bit of shiny detail to any build.

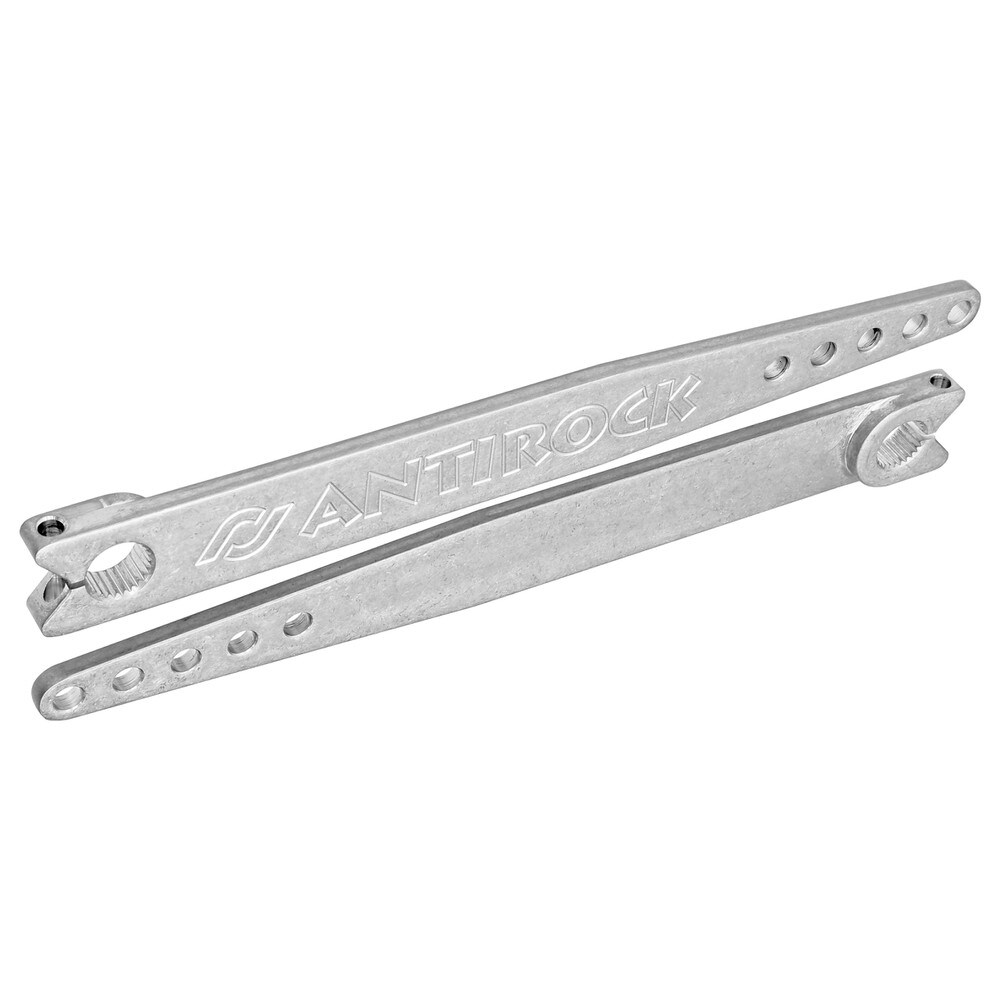

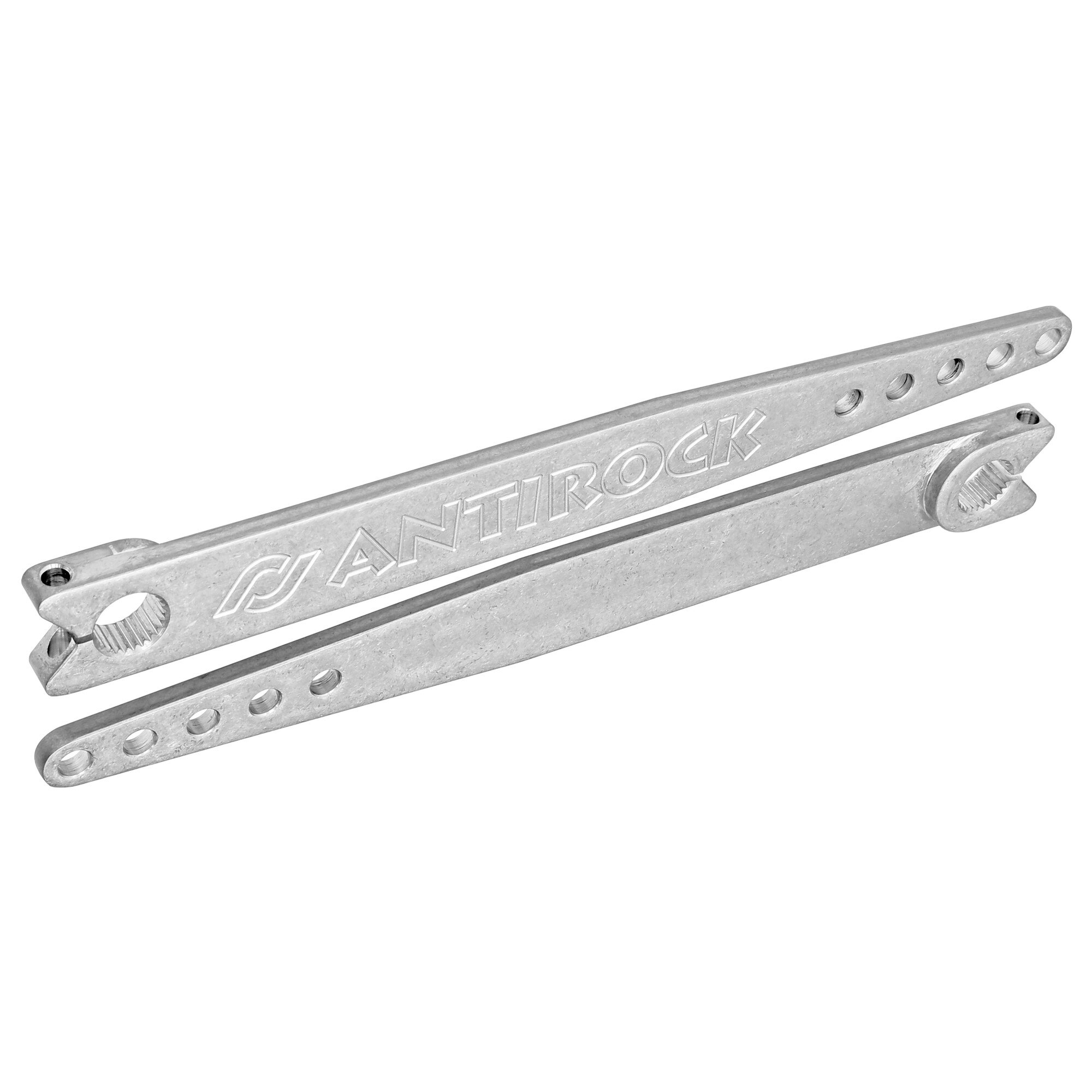

These specific arms are 18 in. long from tip to tip, 3/4 in. thick at the splines and 3/8 in. thick the balance of the length of the arm to provide extra clearance in tight spots (such as steering gear chassis bolts in TJ/LJ applications). At the mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical hole for attaching the arm to the bar. At the opposite end, you’ll find five 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar.
Arms are sold as a pair only and are finished in clear anodize.


Arms Fit:

  • Universal Application (in 25 spline torsion bar applications)
  • Included in TJ Wrangler front Antirock Kits
  • Included in TJ Wrangler Unlimited (LJ) front Antirock Kits

Kit Includes:

  • (1) Pair of 18 in. long billet aluminum Antirock Sway Bar Arms

Component Specs.:

  • Overall length = 18 in.
  • Thickness = 3/4 in. at the splines, 3/8 in. the balance of the length of the arm
  • Material = CNC machined billet 6061T6 aluminum
  • Logo = engraved
  • Spline count = 25
  • Center of splined hole to center of first (nearest) 1/2 in. hole = 12.195 in.
  • Center of splined hole to center of second 1/2 in. hole = 13.195 in.
  • Center of splined hole to center of third 1/2 in. hole = 14.195 in.
  • Center of splined hole to center of fourth 1/2 in. hole = 15.195 in.
  • Center of splined hole to center of fifth (farthest) 1/2 in. hole = 16.195 in.
  • Weight = 4 lbs. (for the pair)

Notes:

  • These arms are found in our TJ/LJ front Antirock Sway Bar Kits
  • Arms may be used in conjunction with our Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
  • See for sway bar arm hardware kit.
  • These arms should NOT be used with 1 in. diameter sway bars such as our - 36 in. x 1 in. bar, or our - 40 in. x 1 in. bar.
    All other are applicable to these arms.
