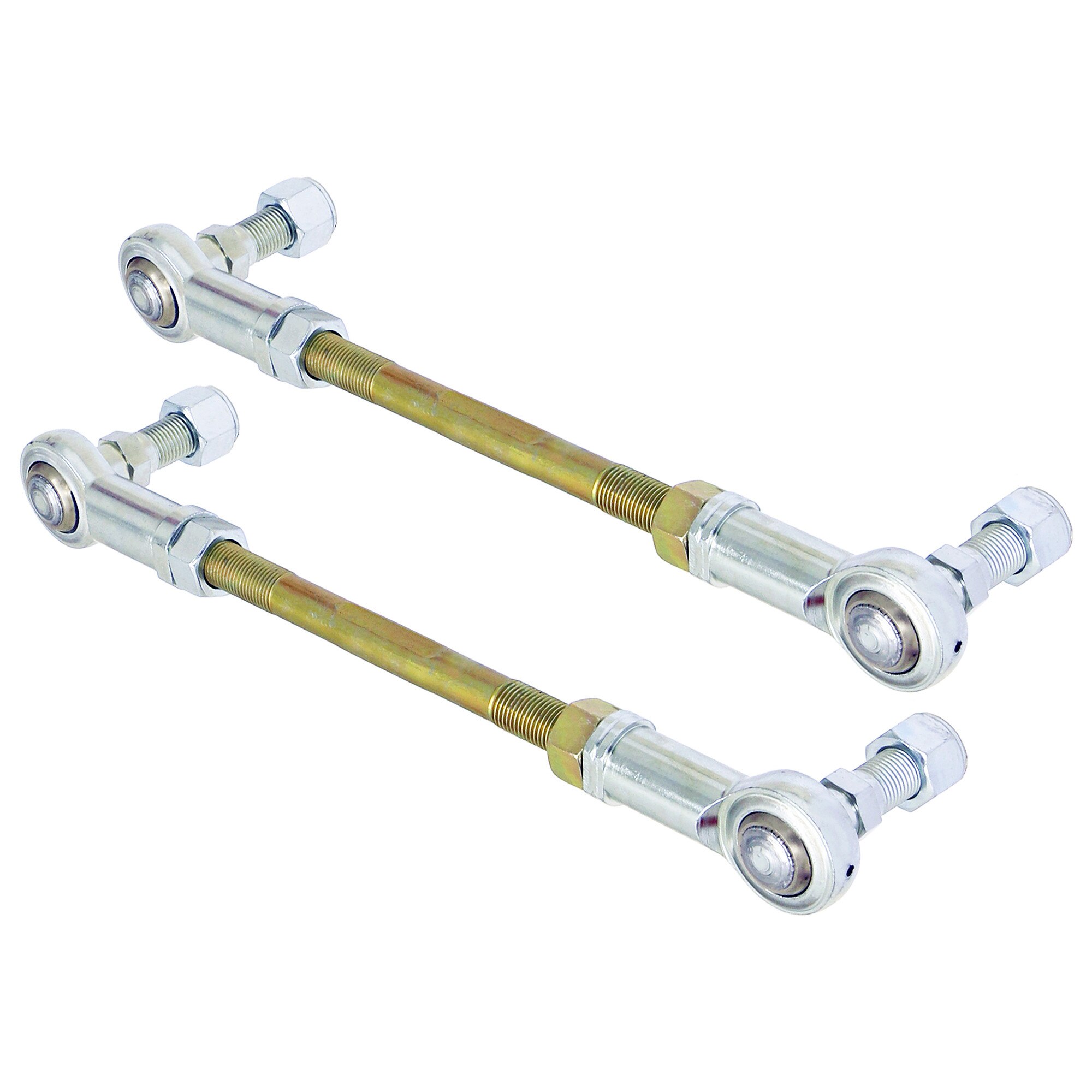

CE-99002RD3 - Antirock Sway Bar End Links w/ Heims (6 1/2 in. Rods)

Details

Details

RockJock’s Adjustable Sway Bar End Link Set features 6 1/2 in. long link rods with 2 in. of 1/2 in.-20 LH thread and 2 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
The heim joints in this kit feature 1/2 in.-20 RH thread studs and nyloc nuts and jam nuts are included.

Kit Fits:

Universal Use
Included in CE-9900XJF XJ Cherokee Front Antirock Sway Bar Kit
Included in CE-9900XJF MJ Comanche Front Antirock Sway Bar Kit

Kit Includes:

(2) 6 1/2 in. Link Rods (gold)

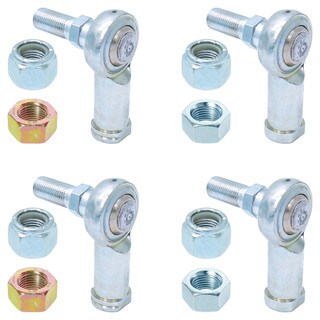

(2) 1/2 in.-20 LH Studded Heim Joint Kit
(2) 1/2 in.-20 RH Studded Heim Joint Kit

Adjustment Range:

Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the heims and jam nuts screwed on til they meet the smooth area of the rod), C-C is 7 3/8 in.
Extended – Uncut rods with heims installed safely adjust out to 9 1/2 in. C-C

Component Specs.:

Gold Rod Length = 6 1/2 in. Long
Gold Rod Diameter = 1/2 in.
Gold Rod LH Threads = 1/2 in.-20 x 2 in. Long
Gold Rod RH Threads = 1/2 in.-20 x 2 in. Long
Gold Rod Center Smooth Area = 2 1/4 in. Long
Gold Rod Wrench Flat = req. 11mm wrench
Heim Joints = req. 19mm wrench
Jam Nuts = req. 3/4 in. wrench

Notes:

These are the links that we include in our XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits

Parts List:

6 1/2 in. Link Rods (gold): CE-9901RD3
1/2 in.-20 LH Studded Heim Joint Kit: CE-99006LK
1/2 in.-20 RH Studded Heim Joint Kit: CE-99006K
