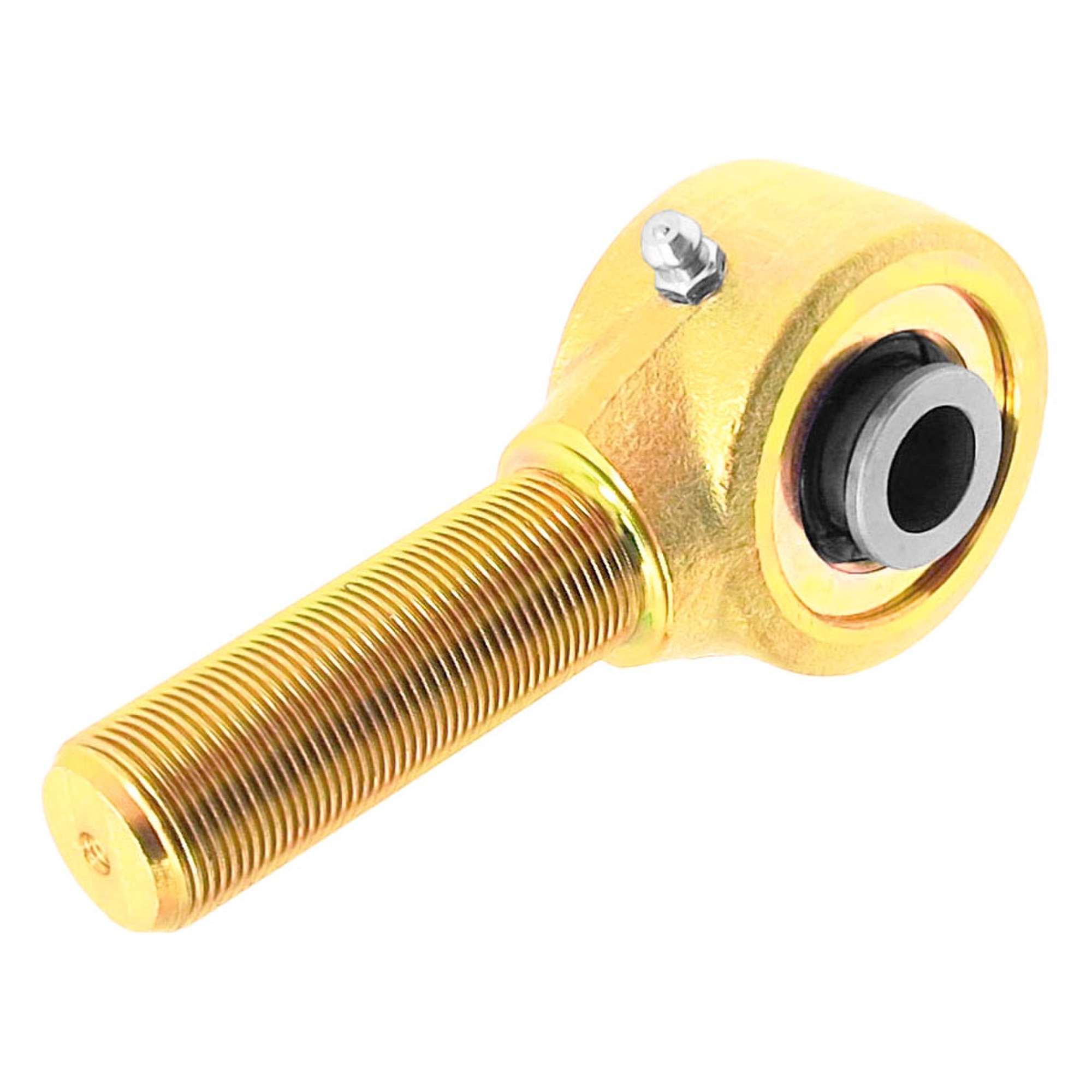

CE-9116N-13 - Narrow 2" Johnny Joint®, Forged, 7/8" RH Thread (1.600" x .5625" Ball)

Narrow 2" Johnny Joint®, Forged, 7/8" RH Thread (1.600" x .5625" Ball)
SKU: CE-9116N-13
$60.00
PROP 65 WARNING:

This narrow forged 2" Johnny Joint® rod end features forged steel construction, a 7/8"-14 right hand threaded shank and comes fully assembled with 1.600" wide ball center with a 9/16" thru bolt hole. These units are externally greasable via a zerk fitting. Finished in gold zinc plating.

This narrow forged 2" Johnny Joint® rod end features forged steel construction, a 7/8"-14 right hand threaded shank and comes fully assembled with 1.600" wide ball center with a 9/16" thru bolt hole. These units are externally greasable via a zerk fitting. Finished in gold zinc plating.

Products specifications
Body Type Forged Steel (Threaded)
Body Series 2 inch OD, Narrow Body
Body Width 1.2 inches
Thread Size 7/8 inch, 14 TPI
Thread Direction Right Hand
Shank Length 2 1/4 inch
Mount Width 1.600 inches
Hole Diameter .5625 inch (9/16, 14mm)
Misalignment 28° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
