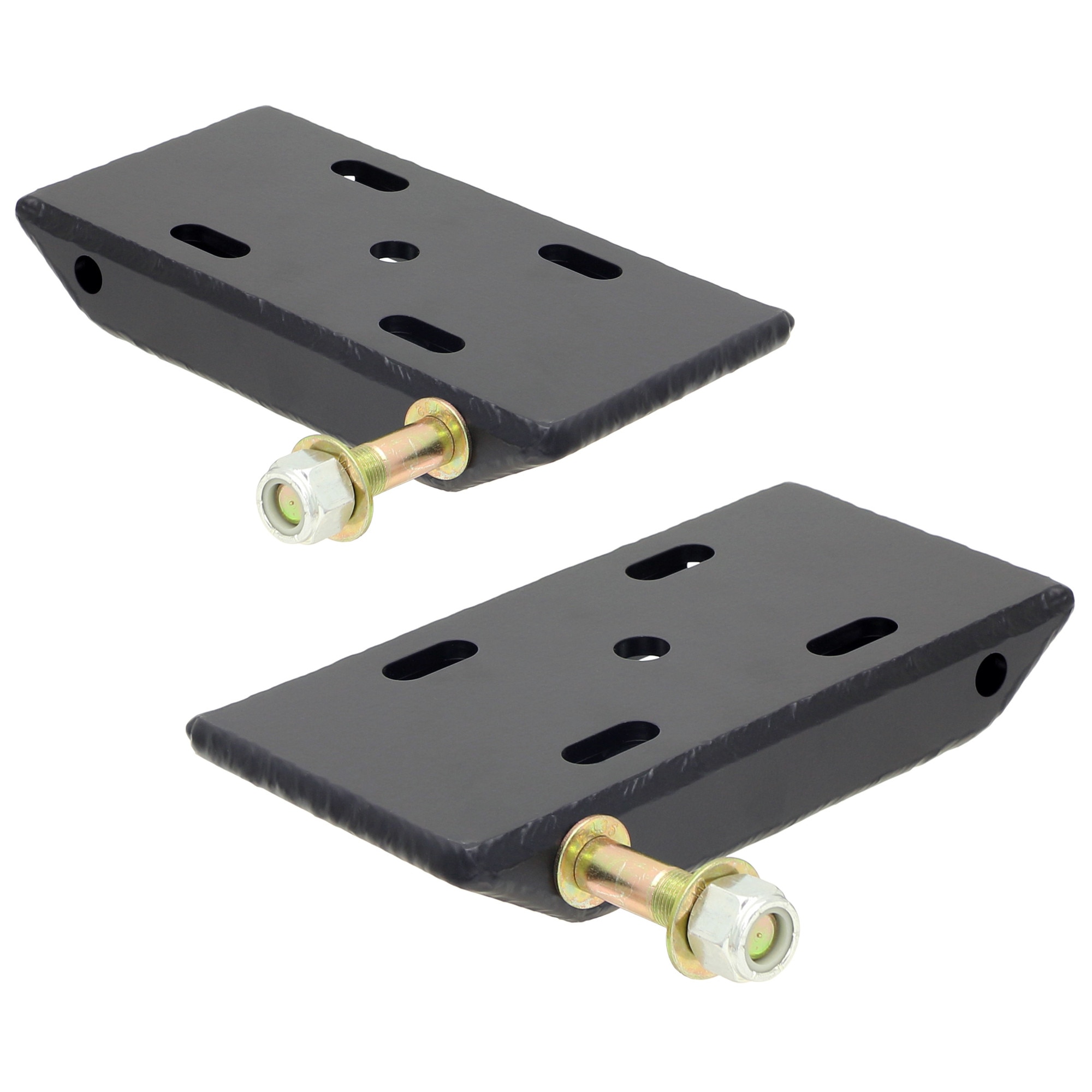

CE-9031C - Heavy Duty Spring Plates w/ Shock Mounts (2 1/2 in. Wide Springs)

RockJock’s Spring Plates for leaf spring vehicles are one of our original, oldest products! Our plates (for spring-under applications) are extremely heavy duty box style units that create a ramp at the ends of the plates to assist them in sliding over rocks, while protecting the u-bolt nuts inside them at the same time!
All plates feature a 1/4 in. thick steel top plate, 3/16 in. steel sides and bottom skid plates, slotted holes to allow them to bolt to axle housings with 2 1/2 in., up to 3 1/4 in. OD axle tubes, optional, replaceable shock and sway bar mounting studs, and a semi-gloss black powder coat finish for durability.

This Spring Plate Set is designed for use with 2 1/2 in. wide leaf springs (commonly found in the rear of Jeep CJs as well as front and rear of Jeep YJs) and includes shock studs.

Kit Fits:

• Universal – vehicles with 2 1/2 in. wide springs, requiring shock mounting studs (spring under applications)
• 82-86 Jeep CJ (rear) – all models requiring shock mounting studs (spring under applications)
• 87-95 YJ Wrangler (front or rear) – all models requiring shock mounting studs (spring under applications)

Kit Includes:

• (2)  Spring Plate for 2 1/2 in. wide spring
• (2)  Shock Stud

Kit Features:

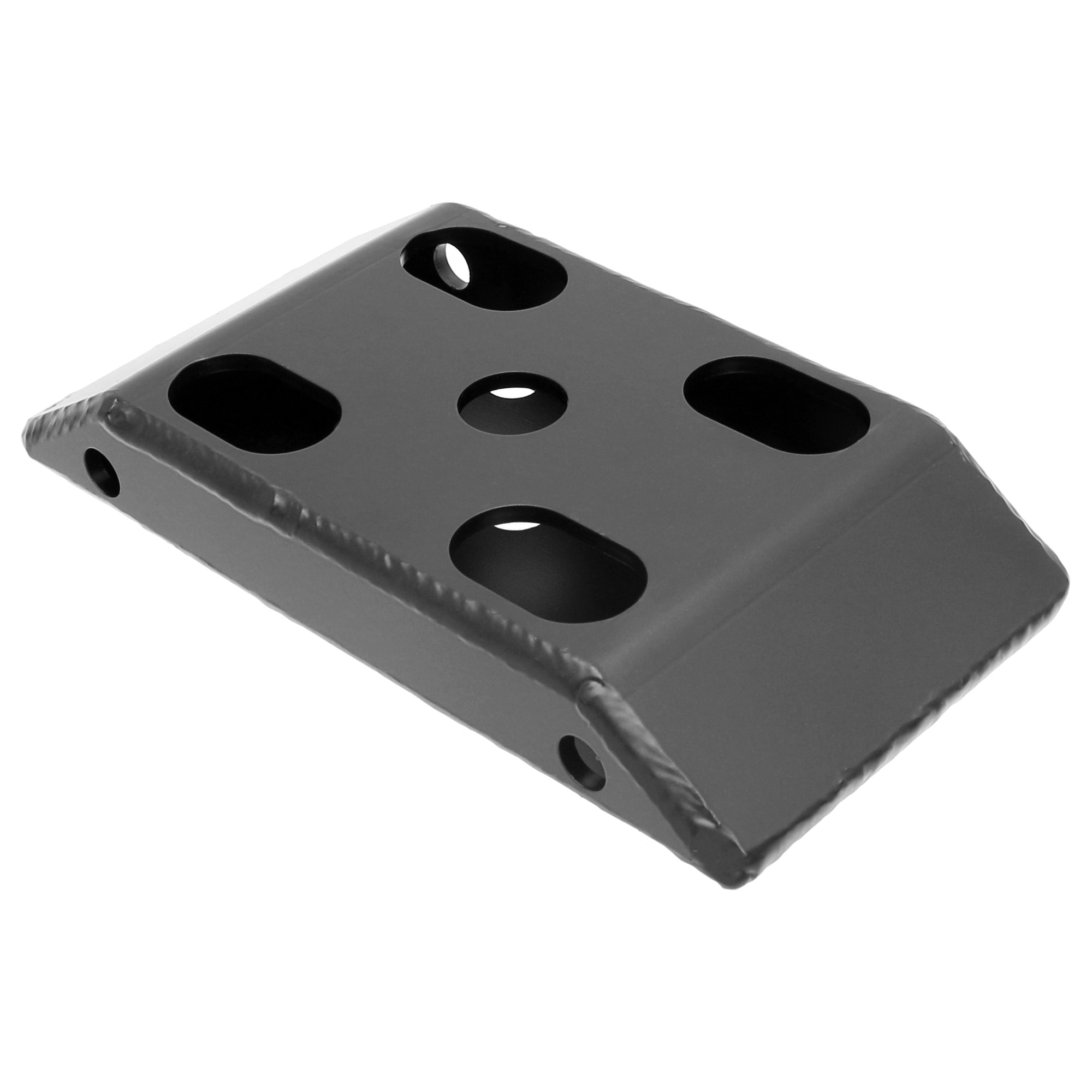

• Box style design that provides ramps at each end and a skid plate on the bottom that protect u-bolt nuts
• Replaceable shock mounting studs for easy bolt-up of those components
• Semi-gloss black powder coat finish on the plates, zinc finish on the studs

Plate Specs.:

• Top Plate  =  1/4 in. thick laser cut steel
• Sides and Bottom  =  3/16 in. thick laser and formed cut steel
• 2 1/2 in. width gap between holes for a clean fit with 2 1/2 in. wide leaf springs
• Smallest Axle Tube Fitment  =  2 1/2 in. OD tube
• Largest Axle Tube Fitment  =  3 1/4 in. OD tube
• Overall Plate Length  =  9 1/2 in.
• Overall Plate Width  =  5 in.
• Overall Plate Height  =  1 1/2 in.
• U-Bolt Holes  =  for 1/2 in. bolt
• Center Indexing Pin Hole  =  .64 in.
• Stud Mounting Holes  =  for 1/2 in. stud
• U-Bolt Nut Access Holes  =  allows 1.14 in. OD socket
• Center Indexing Pin Access Hole  =  allows for 1.06 in. OD socket
• Finish  =  semi-gloss black powder coat

Notes:

• For use with 2 1/2 in. wide leaf springs in a spring-under application only!
• For use with 2 1/2 in. – 3 1/4 in. OD axle tubes only!
• For use with 1/2 in. thread u-bolts only!
• Shock studs are easily replaceable should one become bent or otherwise damaged.

Parts List:

• Spring Plate:  CE-9031B-1P
• Shock Stud:  CE-9050
