  • RJ-253204-101 - Sway Bar End Links - JT Rear (Sealed Rod Ends, 12 1/2 in. Rods)

RJ-253204-101 - Sway Bar End Links - JT Rear (Sealed Rod Ends, 12 1/2 in. Rods)

Details

Details

This RockJock Adjustable Sway Bar End Link Set for the rear of JT Gladiators features 12 1/2 in. long with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
The in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.
Link sets are compatible with our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
Being that this specific end link set is designed for the JT rear application, this kit includes 2 of our sealed rod ends for attachment to the axle and 2 thru-bolt heim joints for attachment to the chassis


Kit Fits:

  • (Compatible with) JT Gladiator RockJock Suspension Kits
  • Universal Use

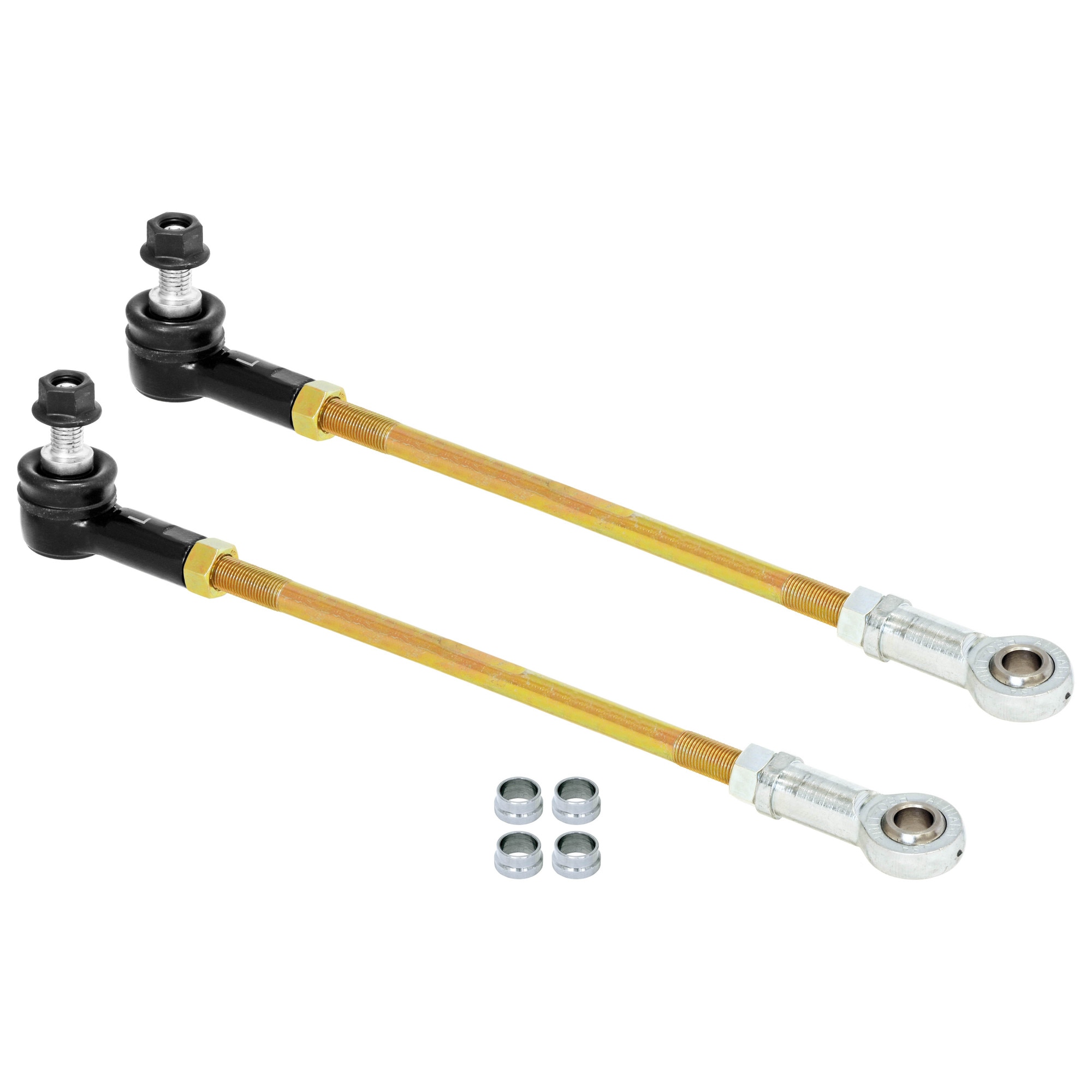

Kit Includes:

  • (2) 12 1/2 in. Link Rods (gold)
  • (2) 1/2 in.-20 LH Sealed End Link Rod Ends
  • (2) 1/2 in.-20 RH Thru-Bolt Heim Joints
  • (2) 1/2 in.-20 LH Jam Nuts
  • (2) 1/2 in.-20 RH Jam Nuts
  • (4) Heim Misalignment Spacers

Gold Rod Specs.:

  • 12 1/2 in. Long
  • 1/2 in. Diameter
  • 1/2 in.-20 LH Threads – 2 5/8 in. Long
  • 1/2 in.-20 RH Threads – 2 5/8 in. Long
  • Center Smooth Area – 7 1/4 in. Long

Adjustment Range:

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on until they meet the smooth area of the rod), C-C is 12.570 in.
  • Extended – Uncut rods with ends installed safely adjust out to 15.945 in. C-C

Notes:

  • These are optional, upgraded links that are compatible with our JT Gladiator Sport Suspension Kit, for use in the rear
  • Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms.
  • Wrench flats: gold rods - 11mm wrench, sealed rod ends – 18mm wrench, heim joints - 19mm wrench, jam nuts - 3/4 in. wrench
