RJ-203002-101 - Sway Bar End Links (14 in. Rods, Sealed Ends)

SKU RJ-203002-101
$191.00
Back

Details

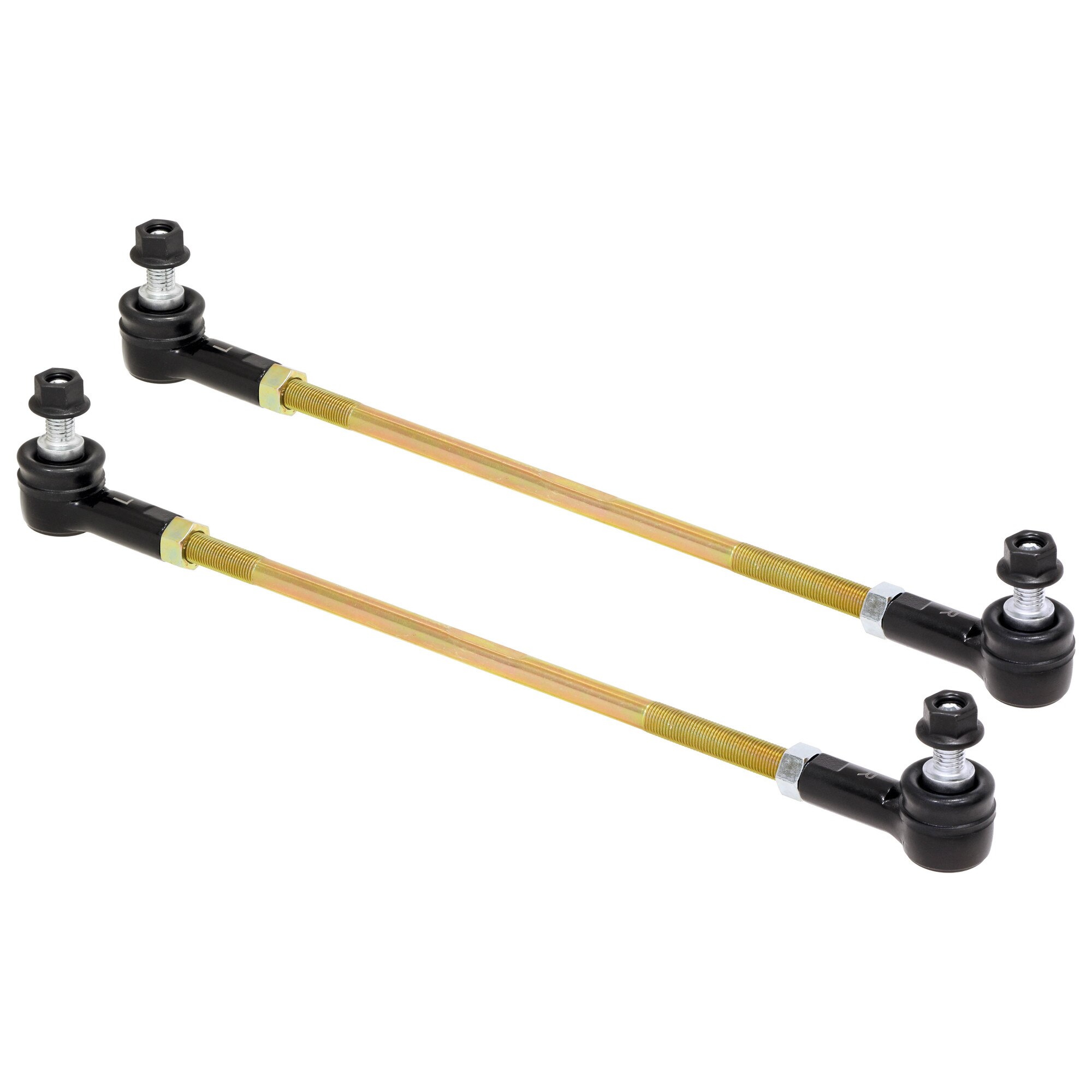

This RockJock Adjustable Sway Bar End Link Set features 14 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 4 1/4 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.
Link sets are compatible with our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.

Kit Fits:

  • (Compatible with) JL Wrangler and Unlimited Rear Antirock Sway Bar Kits – All
  • (Compatible with) TJ Wrangler and Unlimited (LJ) Rear Antirock Sway Bar Kits - All
  • (Compatible with) Universal Antirock Sway Bar Kits - All
  • Universal Use

Kit Includes:

  • (2) 14 in. End Link Rods (gold)
  • (2) 1/2 in.-20 LH Sealed Rod Ends
  • (2) 1/2 in.-20 RH Sealed Rod Ends
  • (2) 1/2 in.-20 LH Jam Nuts
  • (2) 1/2 in.-20 RH Jam Nuts

Gold Rod Specs.:

  • 14 in. Long
  • 1/2 in. Diameter
  • 1/2 in.-20 LH Threads – 2 5/8 in. Long
  • 1/2 in.-20 RH Threads – 4 1/4 in. Long
  • Center Smooth Area – 7 1/8 in. Long

Adjustment Range:

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on til they meet the smooth area of the rod), C-C is 12.640 in.
  • Extended – Uncut rods with ends installed safely adjust out to 17.640 in. C-C

Notes:

  • These are optional, upgraded links that are compatible with our JL, TJ and LJ rear Antirock Sway Bar Kits
  • Threaded stud length is 1in., making the sealed ends incompatible with 3/4 in. thick aluminum Antirock arms.
  • Wrench flats: gold rods - 11mm wrench, sealed rod ends – 18mm wrench, jam nuts - 3/4 in. wrench
