RJ-141402-101 - JL Rear Trac Bar Geometry Correction Bracket

SKU RJ-141402-101
$182.00
Back

Details

RockJock’s JL Rear Trac Bar Geometry Correction Bracket relocates the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point on lifted vehicles.

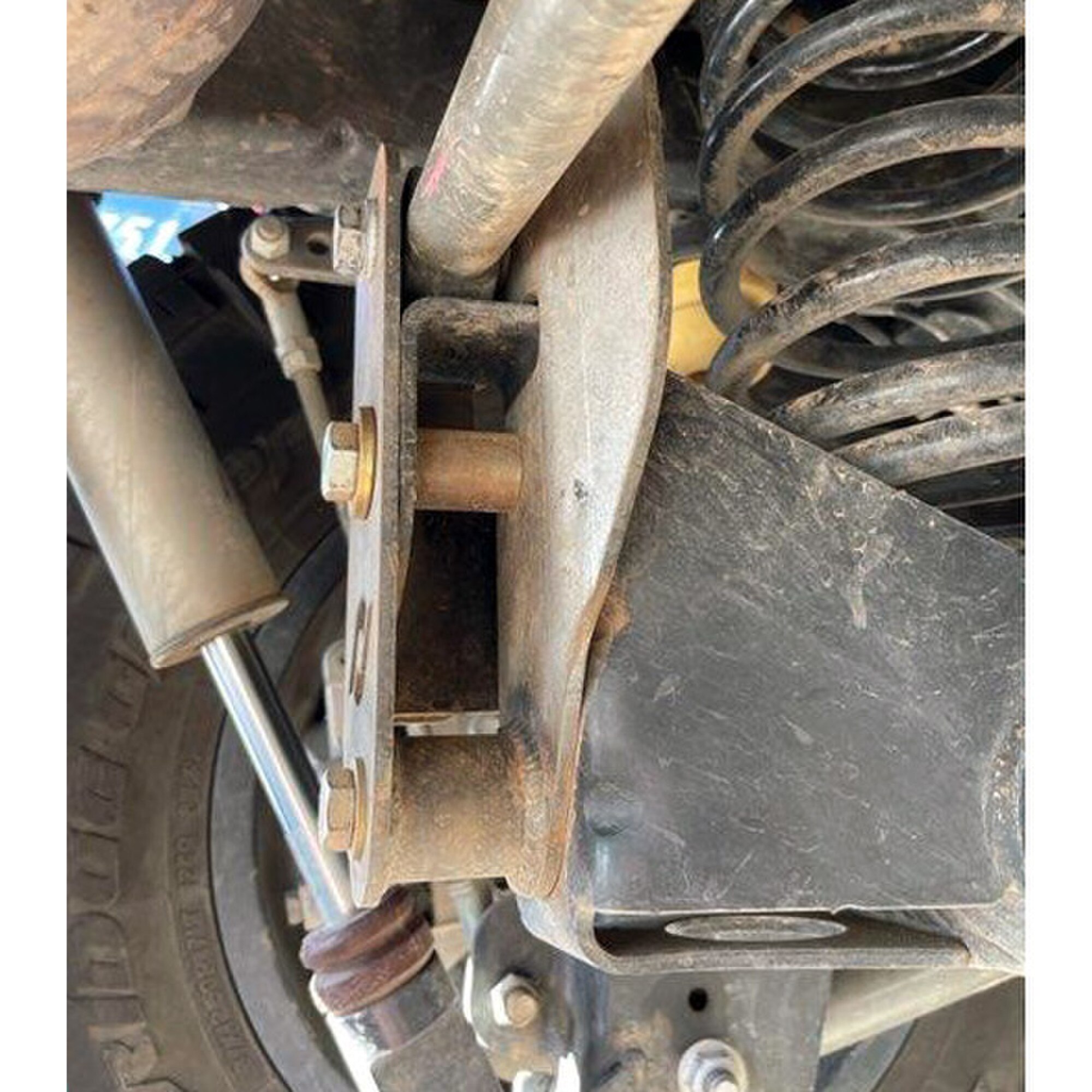

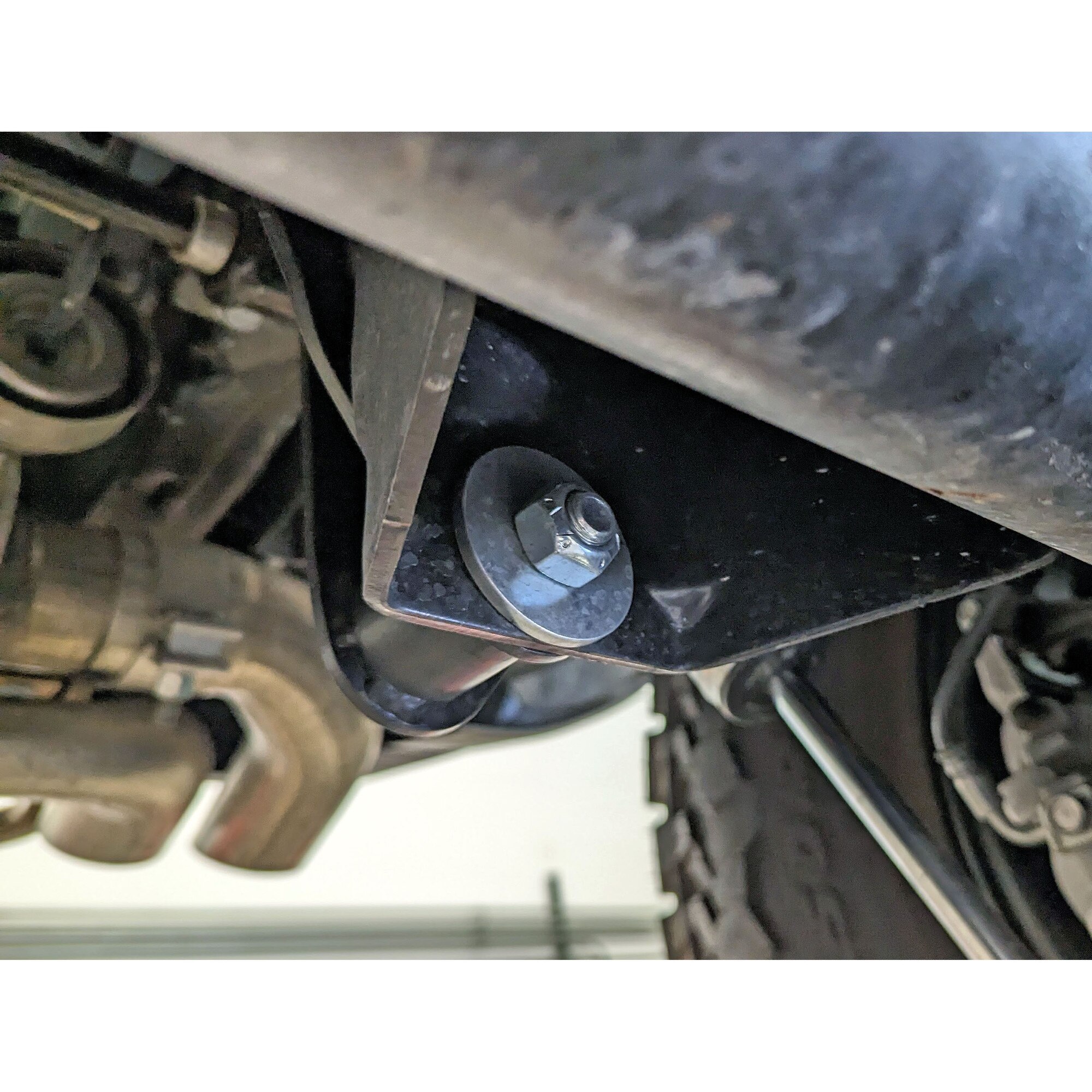

This kit is completely bolt-on and very simply installs into the factory axle housing.
Bracket is finished in semi-gloss black and includes all necessary hardware for installation.


Kit Fits:

  • JL Wrangler Unlimited (4-door) - All Model’s Stock Differentials (ex. 392)
  • JL Wrangler JL (2-door) - All Model’s Stock Differentials (ex. 392)

Kit Includes:

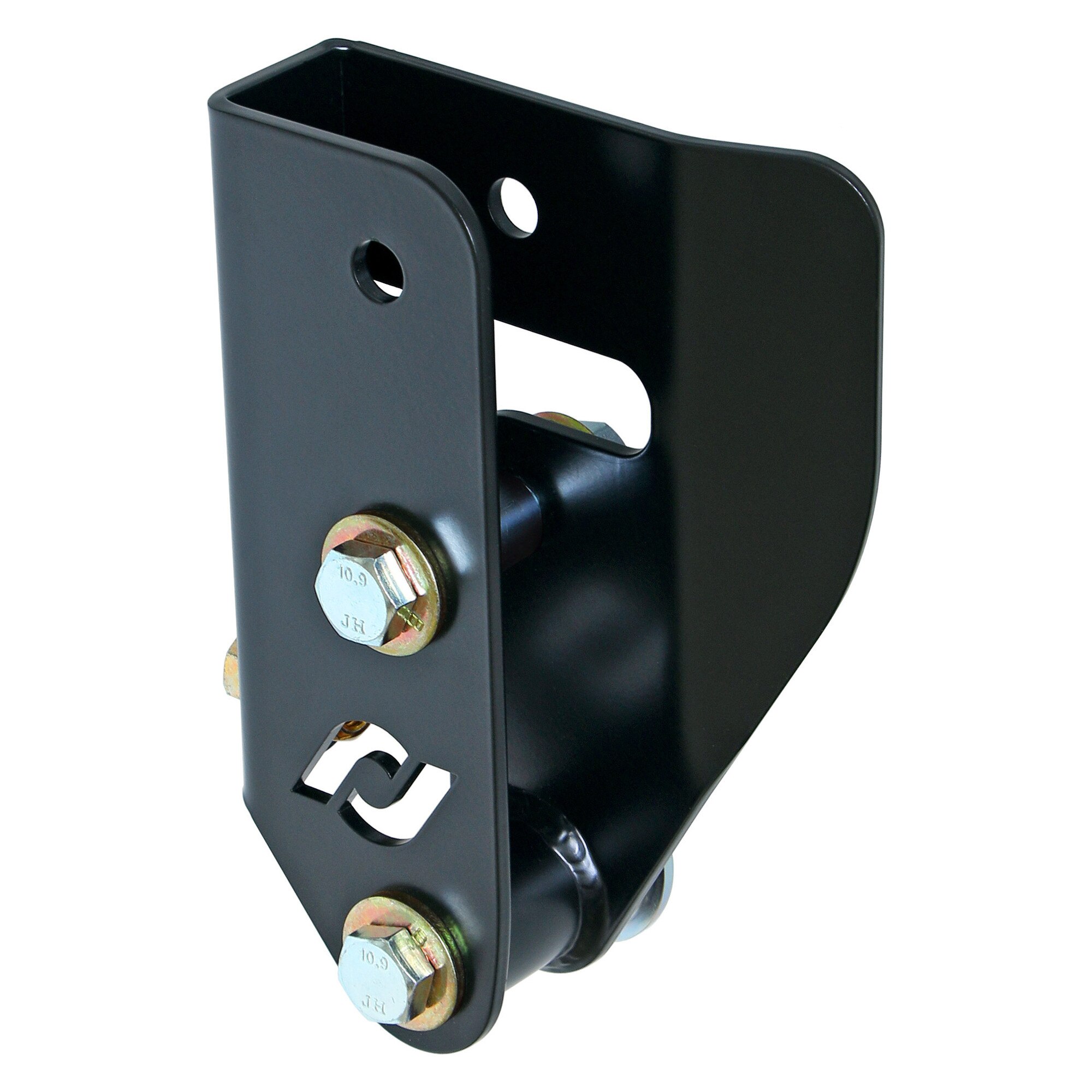

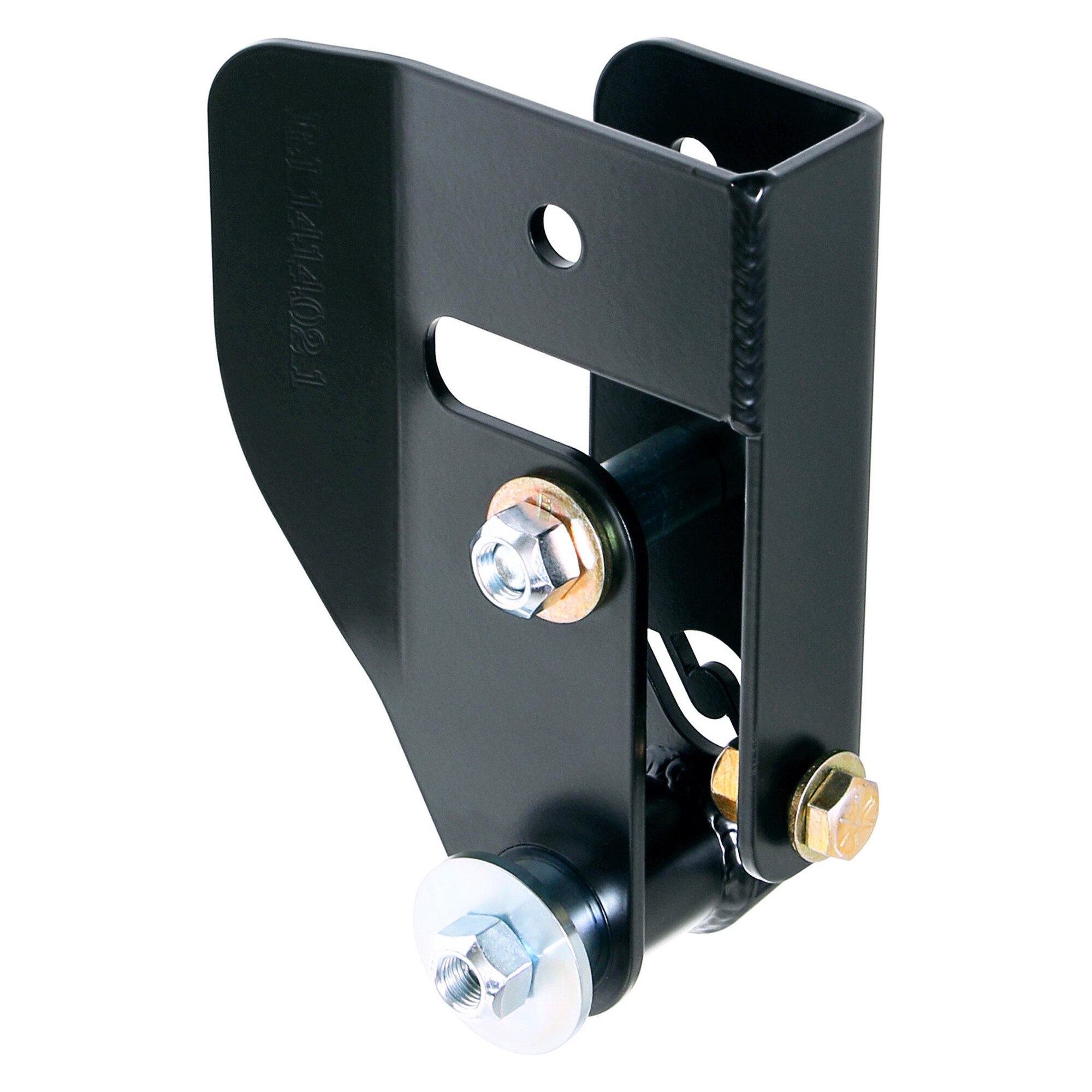

  • Trac Bar Relocation Bracket
  • All Required Hardware

Notes:

  • 392 Models - This bracket is not for use on 392 Hemi models. See our RJ-141403-101 bracket kit.
  • Lift - This kit is ideally designed to work on 2.5 in.–4 in. lifted vehicles.
  • Trac Bar - May be used with a factory trac bar (within the lift parameters above). Bracket may also be used with larger lift amounts, but will yield diminished benefit without the use of an adjustable trac bar, such as our CE-9120RJL Johnny Joint adjustable trac bar.

Parts List:
