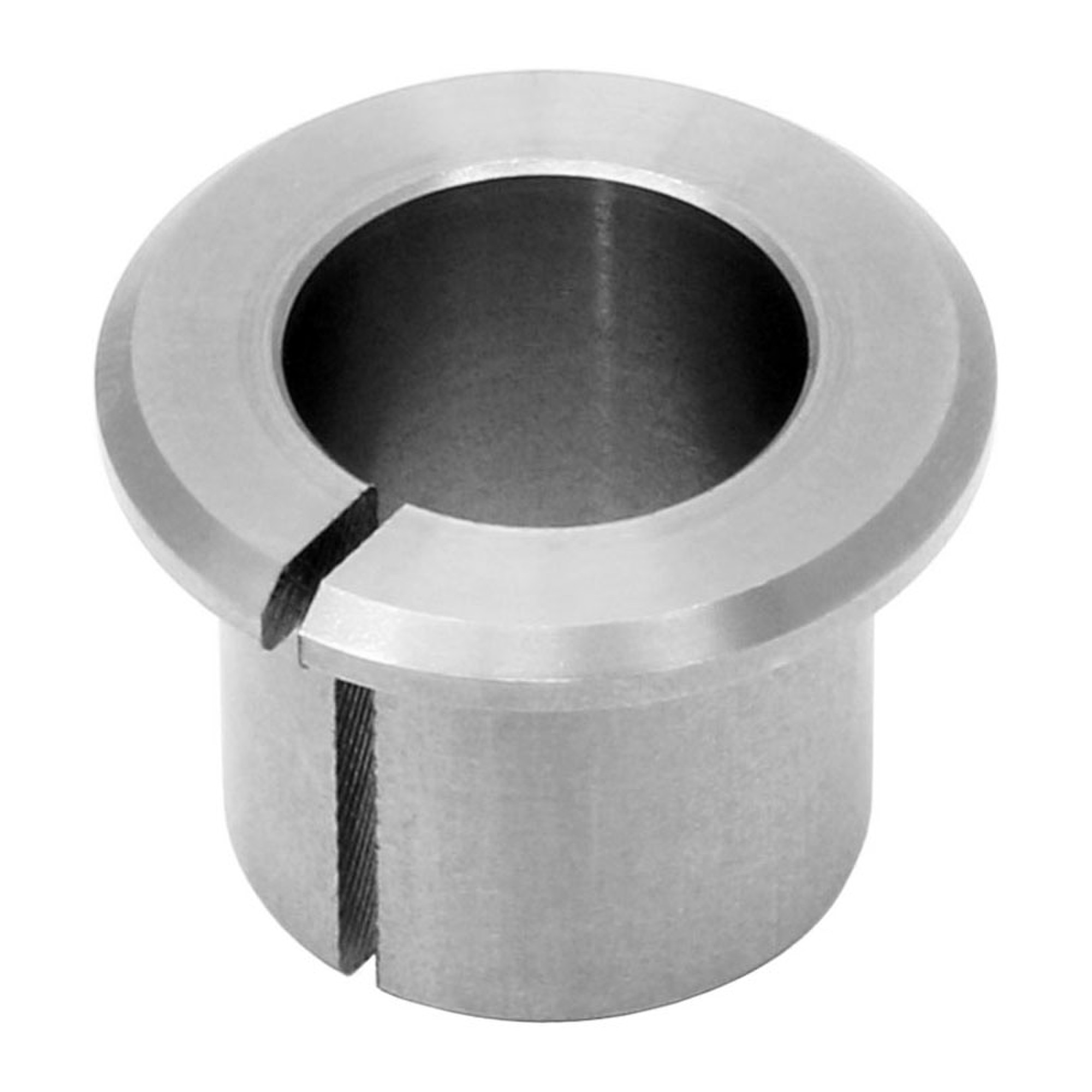

JK-9704RDLB - Tapered Knuckle Bushing for JK Rod End Taper

RockJock’s Tapered Knuckle Bushing is used when relocating or repairing the tapered steering rod end holes in JK Wrangler or Unlimited Knuckles.
Use when flipping tie rods and drag links to the top sides of the steering arms by drilling out the existing tapered in hole(s) the knuckle(s) to .875 in. and then installing this bushing from the top of the knuckle.
Following the same process, but installing the sleeve from the bottom simply replaces worn or damaged tapers on a stock steering configuration vehicle.
This tapered sleeve is included with our JK-9704RDL reversed JK Drag Link.
Bushing is CNC machined billet steel and features stock JK tie rod and drag link rod end taper.

Kit Fits:

• Into a .875 in. hole

Kit Includes:

• (1)  Billet Steel Tapered ID Bushing

Component Specs.:

• Construction  =  CNC machined billet steel
• ID  =  JK Drag Link Rod End Taper
• Bushing Flange  =  1.200 in. OD x .125 in. Thick
• Bushing Press Area  =  .870 in. OD x .726 in. Thick
• Fitment  =  inserts into .875 in. hole

Notes:

• This bushing is included in our JK-9704RDL reversed JK Drag Link Kit.
• Make sure you have the proper tools and equipment to install this piece before attempting this job! Refer to pages 3-4 of our JK Currectlync Steering instruction manual here.
• For use with JK Wrangler and Unlimited taper only!
