CE-9901D-SP4 - Antirock Sway Bar Bushing Shim Pack

RockJock’s Antirock Sway Bar Bushing Shim Pack assists in solving the age old problem of inconsistent factory frame widths on all platforms of vehicles that we offer bolt-on Antirock Sway Bar kits to suit.
In a lot of cases, if you find your vehicle's frame to be on the narrower side, the Antirock arms can simply be slid on until they are snug against the Antirock bushings and then the arms clamped down. However, in other cases, the arms absolutely have to hold true width to clear bolt heads on the side of the frame, etc. Instances of this nature are where these shims come in!

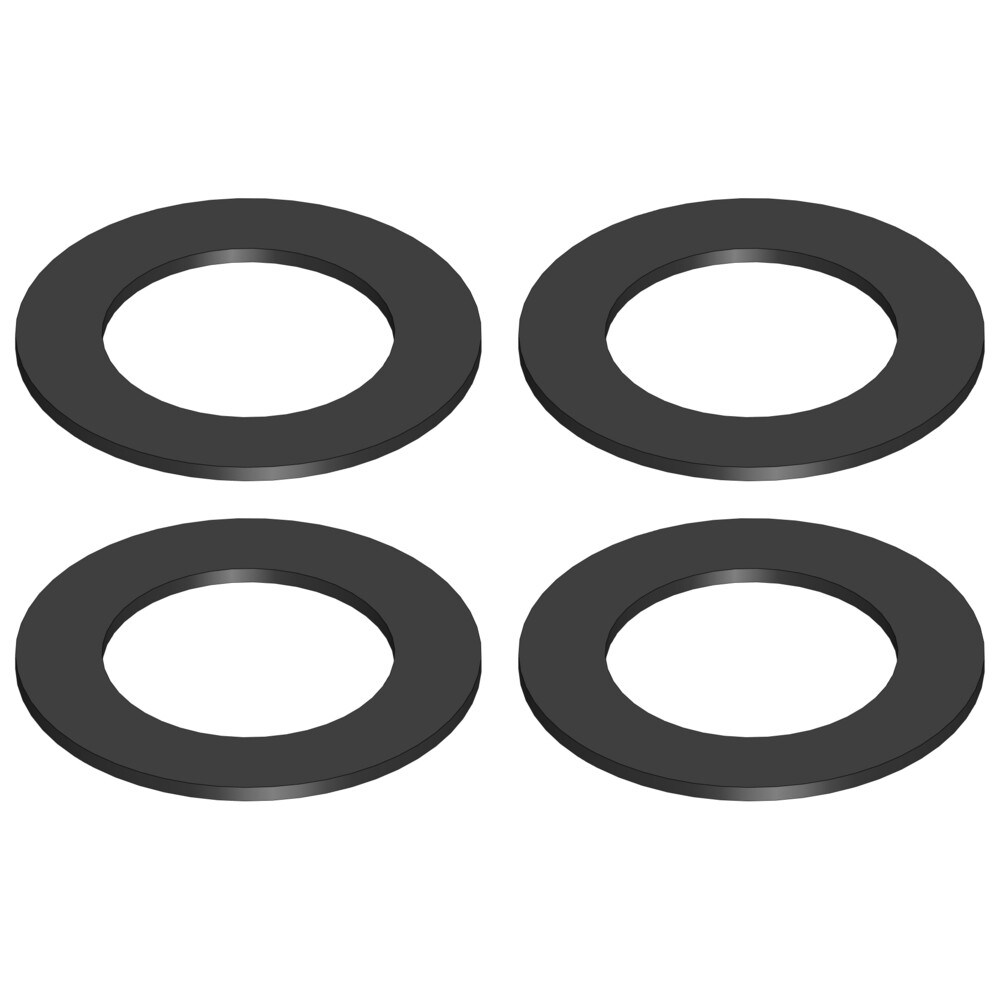

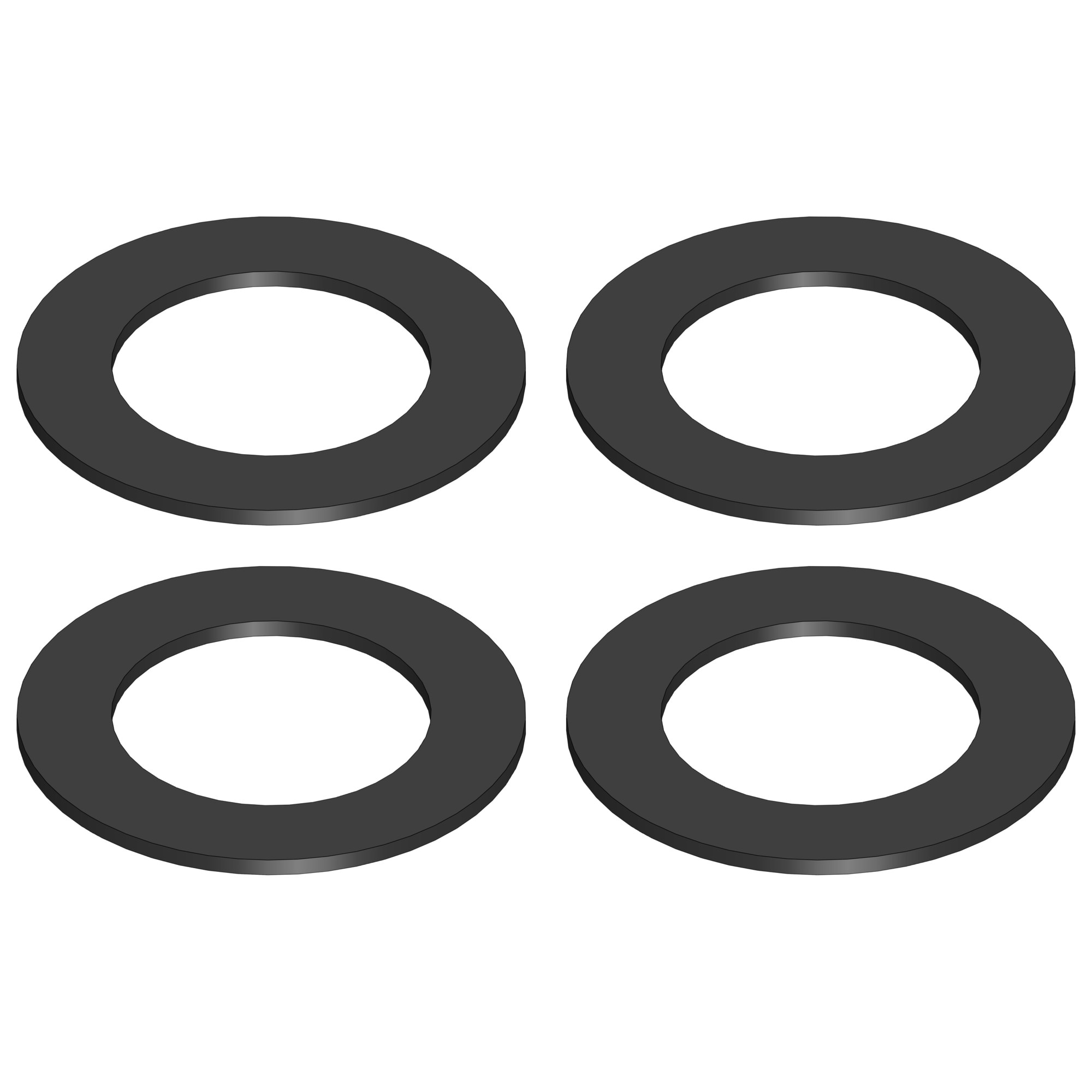

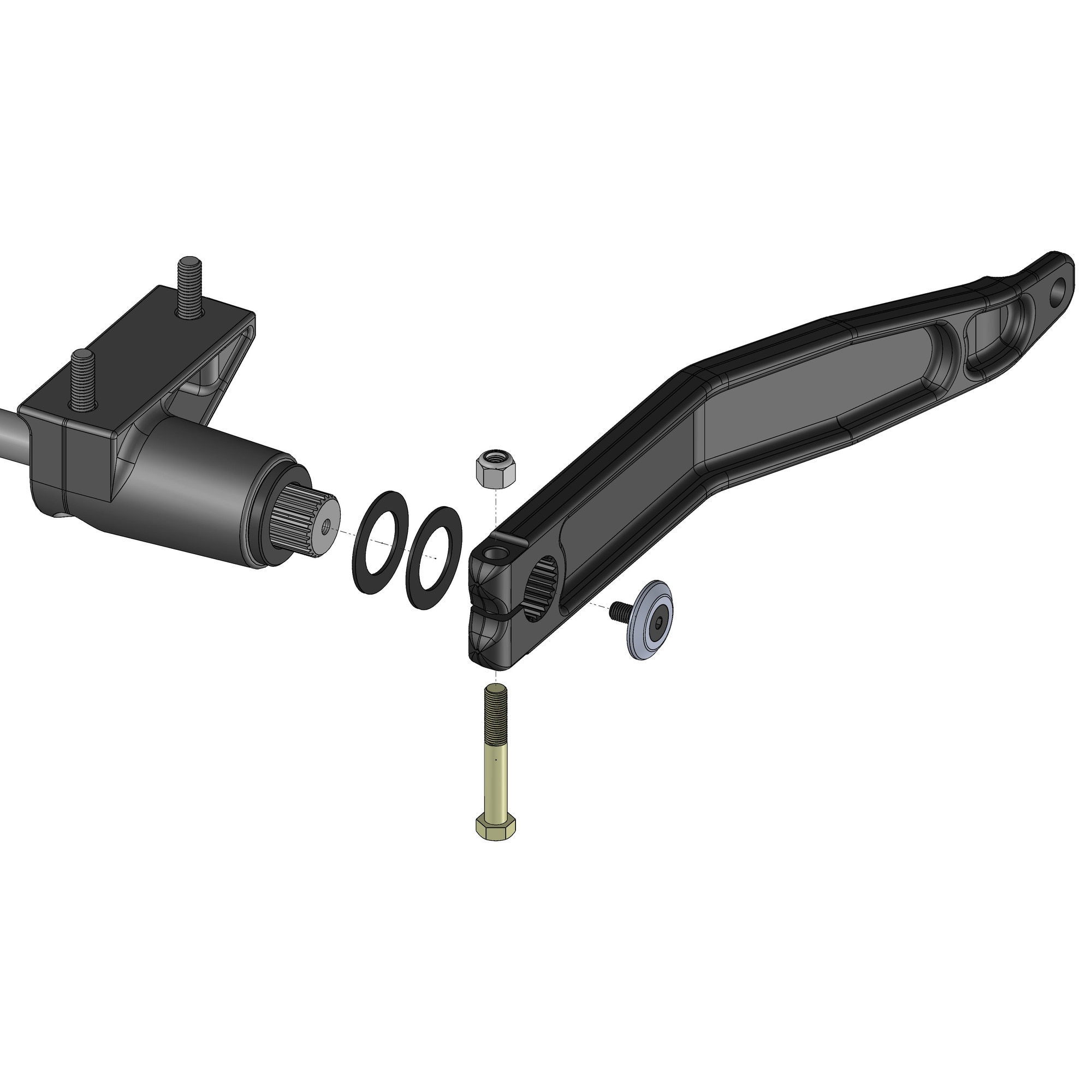

For use in all 25 spline Antirock bar applications, our shim pack includes 4 pieces of our CNC machined billet black UHMW shims that install between the outward face of the installed sway bar bushings and the back of the sway bar arms (see photo gallery). Shims are 1/16 in. thick and are able to be stacked to suite your specific vehicle's needs.
The UHMW material provides squeak-free operation and long service life.

Kit Fits:

• For use with our CE-9901D Antirock Sway Bar bushings (most bolt-in and all Universal Kits)
• For use with our CE-99004 Antirock Sway Bar bushings (TJ/LJ front)
• For use with our CE-99004YJ Antirock Sway Bar bushings (YJ front)
• For use with our CE-9900JLRL and CE-9900JLRR Antirock Sway Bar bushings (JL rear)

Kit Includes:

• (4)  Antirock Sway Bar Bushing Shim

Component Specs.:

• Construction  =  CNC machined billet black UHMW
• Thickness  =  .0625 in. (1/16 in.)
• ID  =  1.100 in. (to accept all 25 spline Antirock bars)
• OD  =  1.750 in.
• Fitment  =  fits between Antirock sway bar arms and faces of sway bar bushings
• Stackable  =  Yes

Notes:

• Shim will work with any of our 25 spline sway bars and 25 spline sway bar bushings.

Media Hub

• Watch: whats and whys video here
