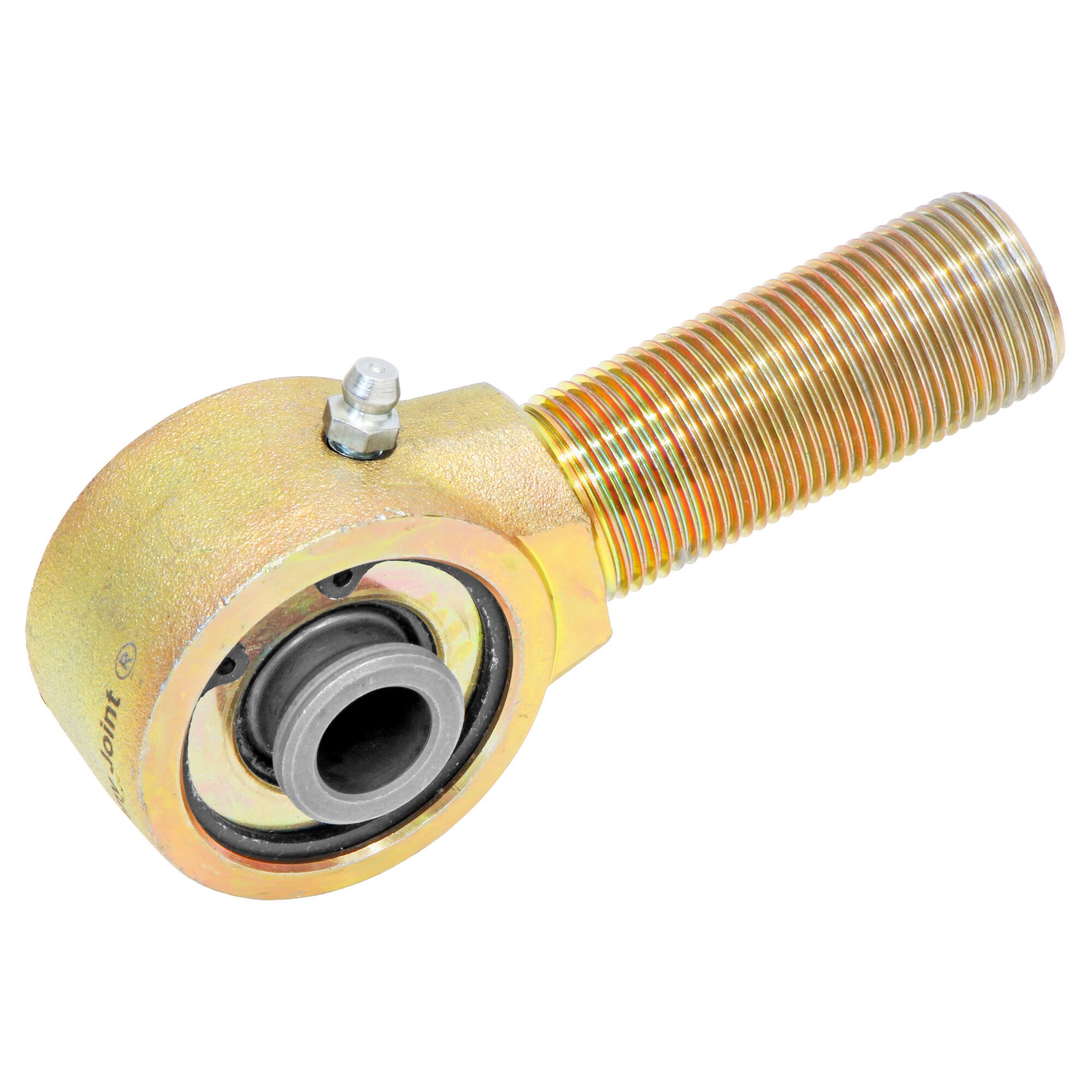

CE-9112NL-12 - Narrow 2" Johnny Joint®, Forged, 1" LH Thread (2.000" x .500" Ball)

Narrow 2" Johnny Joint®, Forged, 1" LH Thread (2.000" x .500" Ball)
SKU: CE-9112NL-12
$60.00
PROP 65 WARNING:

The 2" narrow forged Johnny Joint® rod end was designed originally for use in our JK front and rear trac bars, however, it is now available seperately as a replacement part or for use in any type of universal application for custom builders. This joint is a male rod end style forging that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 1"-14 left hand threads on the shank, and is greasable through the outer shell. We also keep the jam nuts for these units on hand at all times as well. Finished in gold zinc plating.

The 2" narrow forged Johnny Joint® rod end was designed originally for use in our JK front and rear trac bars, however, it is now available seperately as a replacement part or for use in any type of universal application for custom builders. This joint is a male rod end style forging that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 1"-14 left hand threads on the shank, and is greasable through the outer shell. We also keep the jam nuts for these units on hand at all times as well. Finished in gold zinc plating.

Products specifications
Body Type Forged Steel (Threaded)
Body Series 2 inch OD, Narrow Body
Body Width 1.2 inches
Thread Size 1 inch, 14 TPI
Thread Direction Left Hand
Shank Length 2 1/4 inch
Mount Width 2.000 inches
Hole Diameter .500 inch (1/2)
Misalignment 34° Total
Lubrication Method External zerk fitting located on joint body
Body Finish Yellow zinc plating
