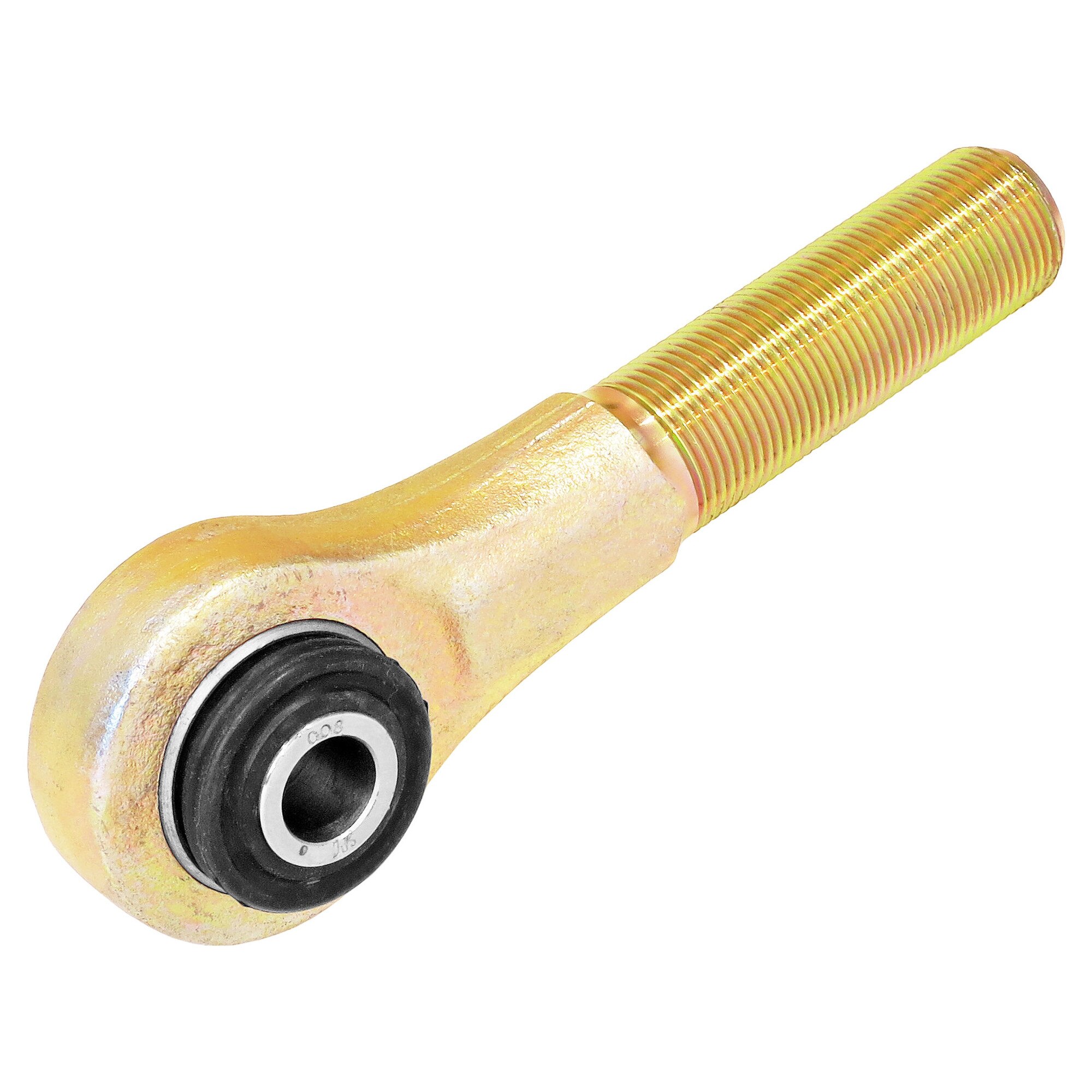

CE-9112NJLF - xAxis Flex Joint Rod End (1 in. RH Thread, 1.600 in. x 14mm, Ball)

SKU CE-9112NJLF
$64.00

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This xAxis Flex Joint incorporates our 1 in.-14 RH thread, narrow width, forged body and a 1.600 in. overall width x 14mm thru-bolt hole xAxis Flex Joint .



Rod End Fits:



Rod End Includes:

  • (1) Forged xAxis Flex Joint Assembly


Rod End Features:

  • Forged steel construction
  • 2 in. O.D. x .836 in. wide joint barrel
  • 3 inches of 1 in.-14 RH threads
  • 5.750 inches from CL of joint to end of threads
  • 1.600 in. width x 14mm thru-hole plated pivot ball
  • Nylon internal race for precision and zero maintenance
  • Sealed from the elements via replaceable rubber boots
  • Fully assembled, ready for use right out of the box

Notes:

  • See CE-9113JN for a Jam Nut to fit this joint
  • See CE-9113B if a Weld-In Bung and Jam Nut are required
  • See RJ-576201-101 if a RockNut is required
  • Due to this joint's sealed design and nylon race, it requires no maintenance or greasing
