  • CE-9112G - GM G-Body Axle Housing Johnny Joint Kit (78-88)

CE-9112G - GM G-Body Axle Housing Johnny Joint Kit (78-88)

Details

Details

JCPG's Johnny Joint Rod Ends have been a staple in the automotive aftermarket since 1996! Available universally for builders or found in our suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in any application, while still providing smooth, cushioned, quiet performance on the road.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This JCPG Johnny Joint Differential Housing Kit replaces the rubber rear differential housing upper control arm bushings on your GM G-body vehicle with Johnny Joint rod ends from JCPG, allowing you to get maximum articulation out of your rear suspension, as compared to rigid urethane bushings commonly found on the market for this location. This kit essentially finishes off a new rear suspension package by making your axle housing control arm mounting points Johnny Jointed and free to articulate.
This kit includes a machined Johnny Joint insert for for each side of the differential housing, 12mm greasable bolts for both joints and an installation tool.


Kit Fits:

  • Buick:  Regal, GS, Grand National - all stock 10 bolt rear axles
  • Chevrolet:  Malibu (sedan and station wagon), El Camino, Monte Carlo - all stock 10 bolt rear axles
  • Oldsmobile:  Cutlass - all stock 10 bolt rear axles
  • Pontiac:  Grand Prix - all stock 10 bolt rear axles

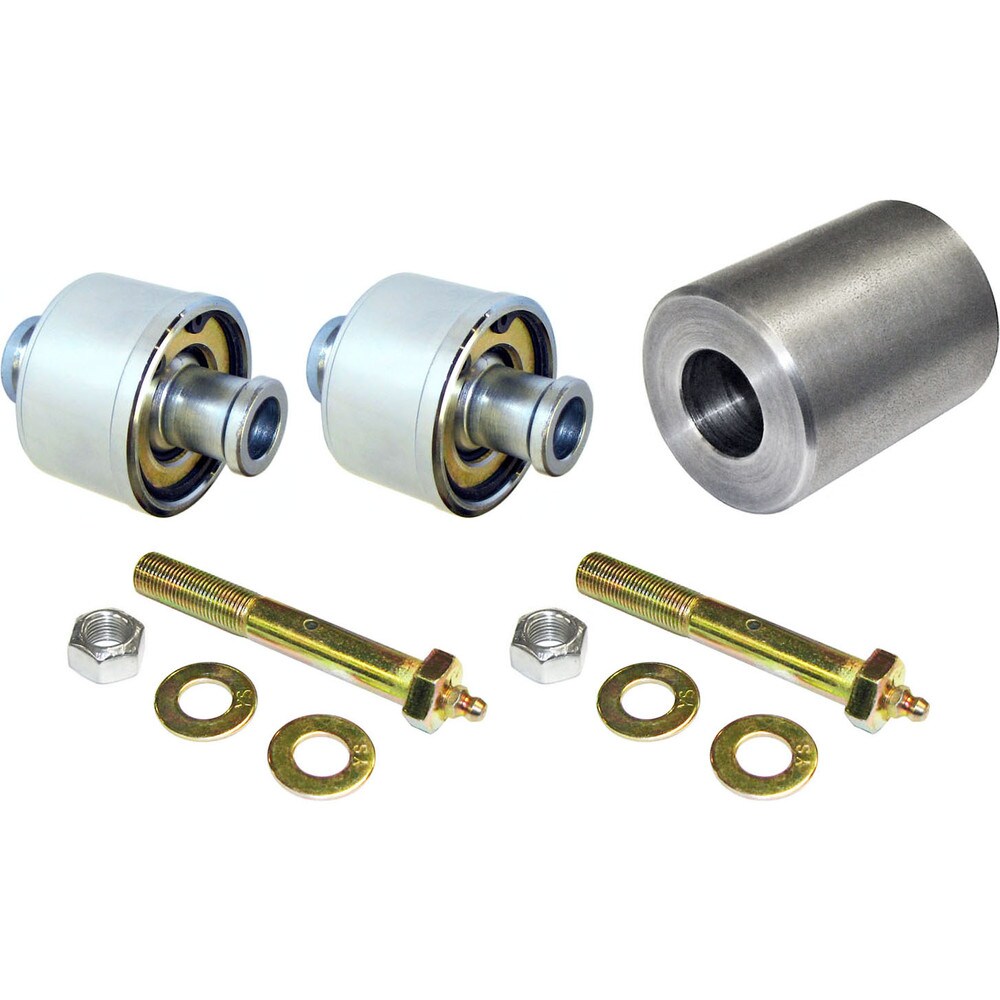

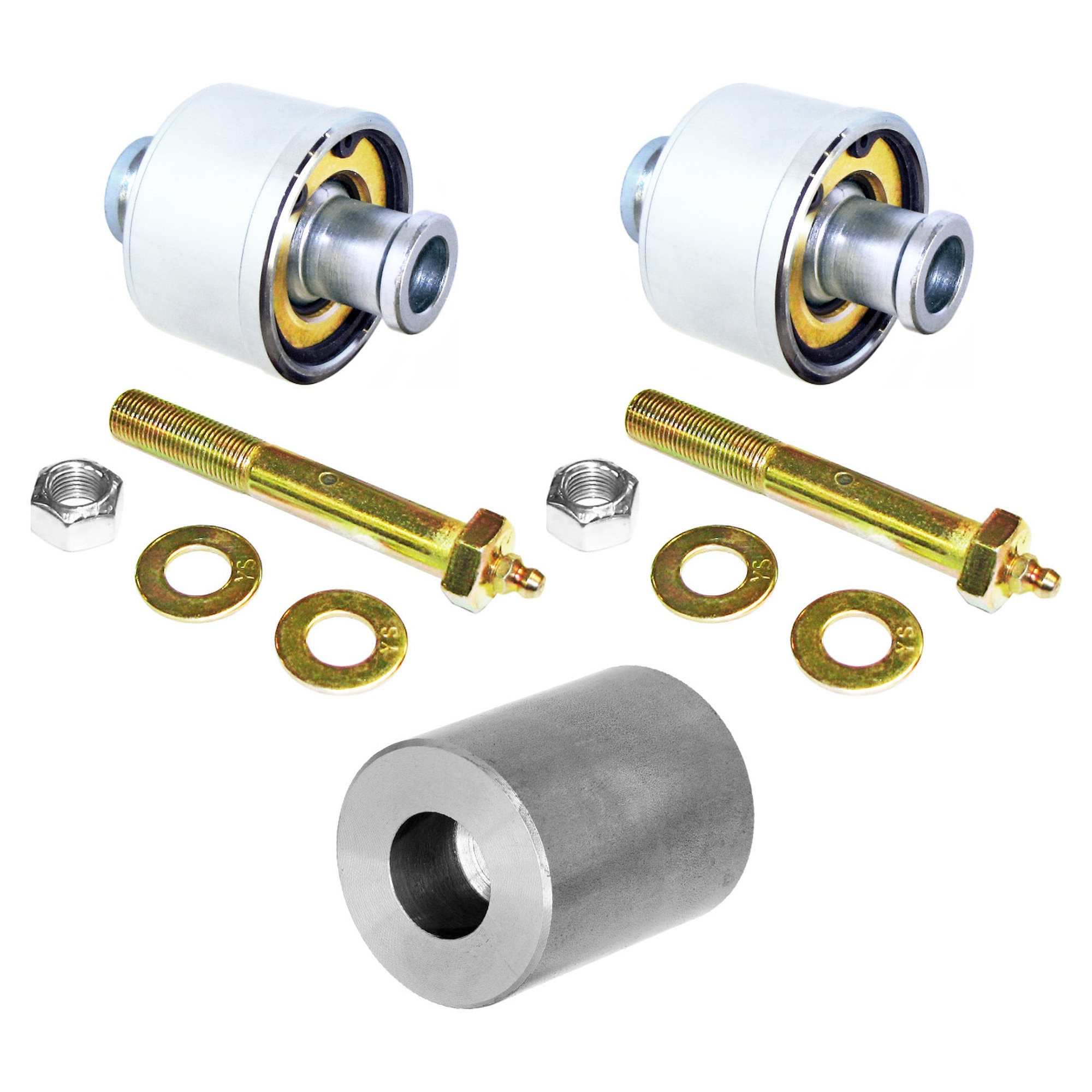

Kit Includes:

  • (2)  Machined 2 in. Johnny Joint
  • (2)  Greasable Bolt w/ Hardware
  • (1)  Installation Tool

Kit Features:

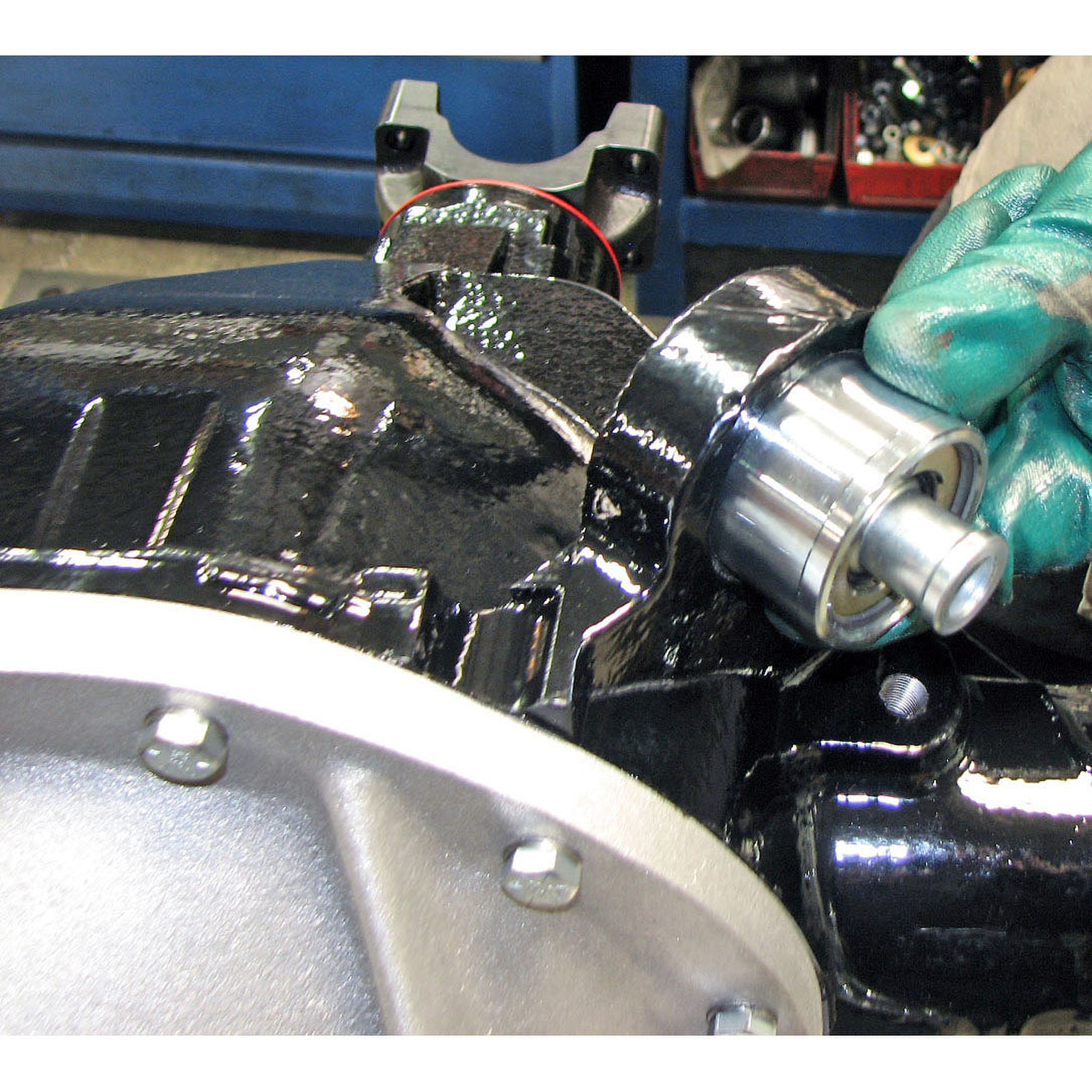

  • Easy press-in installation (using supplied tool)
  • 30 degrees of articulation capability (per joint)
  • CNC machined steel construction
  • 2 in. O.D. x 1.45 in. wide barrel dimensions
  • 1-piece bushing
  • 2.445 in. wide x .484 in. thru-hole
  • 12mm-1.75 x 95mm long for greasing
  • Clear zinc plate finish
  • Fully assembled, ready for use right out of the box

Notes:

  • For use on factory, cast iron, GM 10 bolt G-body axle housings ONLY
  • Kit replaces stock rubber bushings or any aftermarket urethane bushing that may have been installed into your housing
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our
  • Applicable Johnny Joint Assembly/Disassembly Tool for these joints:

Parts List:
