3" Johnny Joint® Rod End
SKU: CE-9111
$131.00
PROP 65 WARNING:

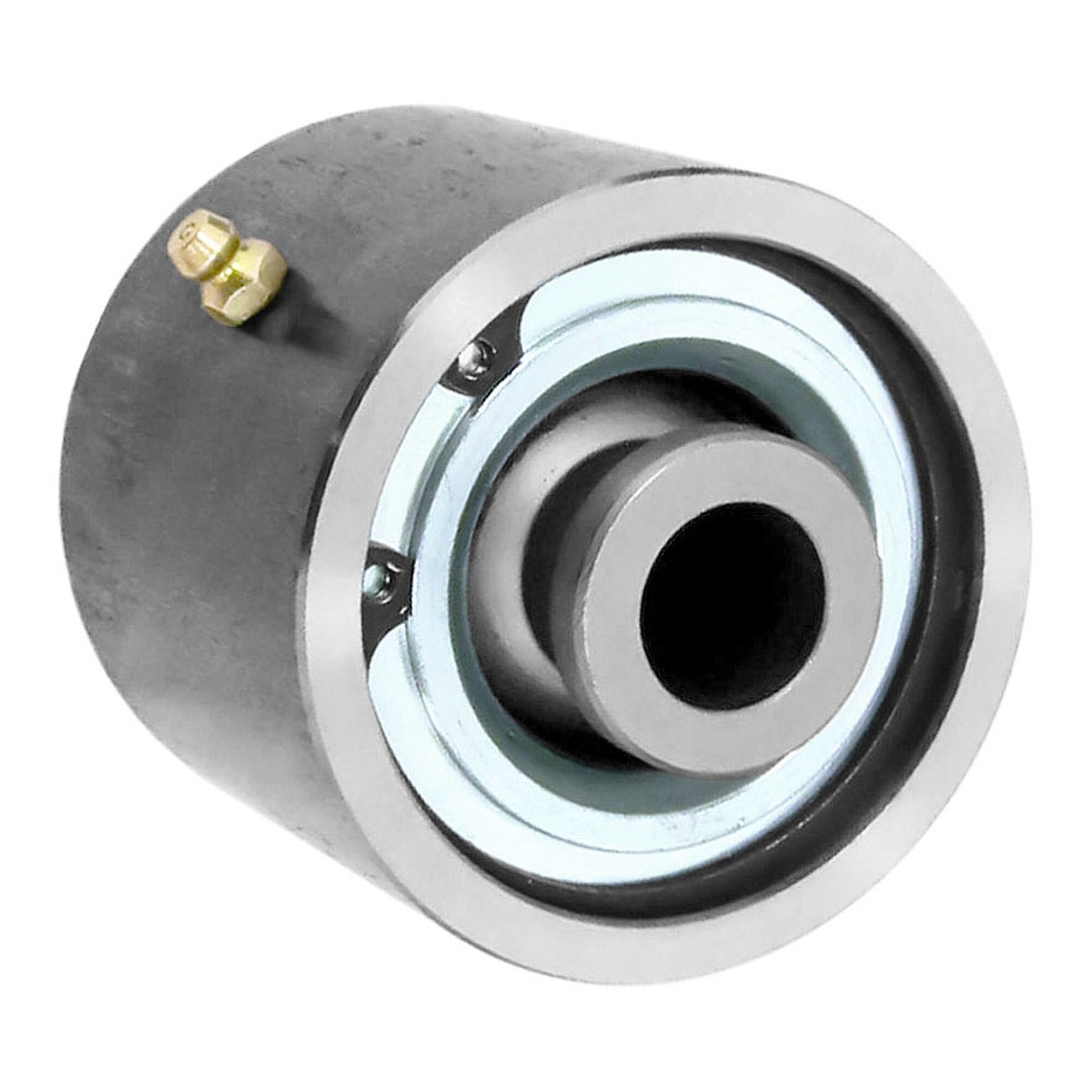

RockJock's weld-on chromoly Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring. The outer shell is weldable .180" wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is a 3" o.d. and features a 3.250" mounting width and a .750" thru bolt hole.

RockJock's weld-on chromoly Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, chromoly side washers and a snap ring. The outer shell is weldable .180" wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is a 3" o.d. and features a 3.250" mounting width and a .750" thru bolt hole.

Products specifications
Body Type Weld-on
Body Series 3 inch OD, Standard Body
Body Width 2.470 inches
Body Material Chromoly
Mount Width 3.250 inches
Hole Diameter .750 inch (3/4)
Misalignment 29° Total
Lubrication Method External zerk fitting located on joint body
