RJ-335402-102 - Johnny Joint 2 1/2 in. Narrow Rod End (Long Shank, 1 1/4 in. RH Thread, 2.365 in. x .562 in. Ball)

SKU RJ-335402-102
$86.00

Out of Stock

Back

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

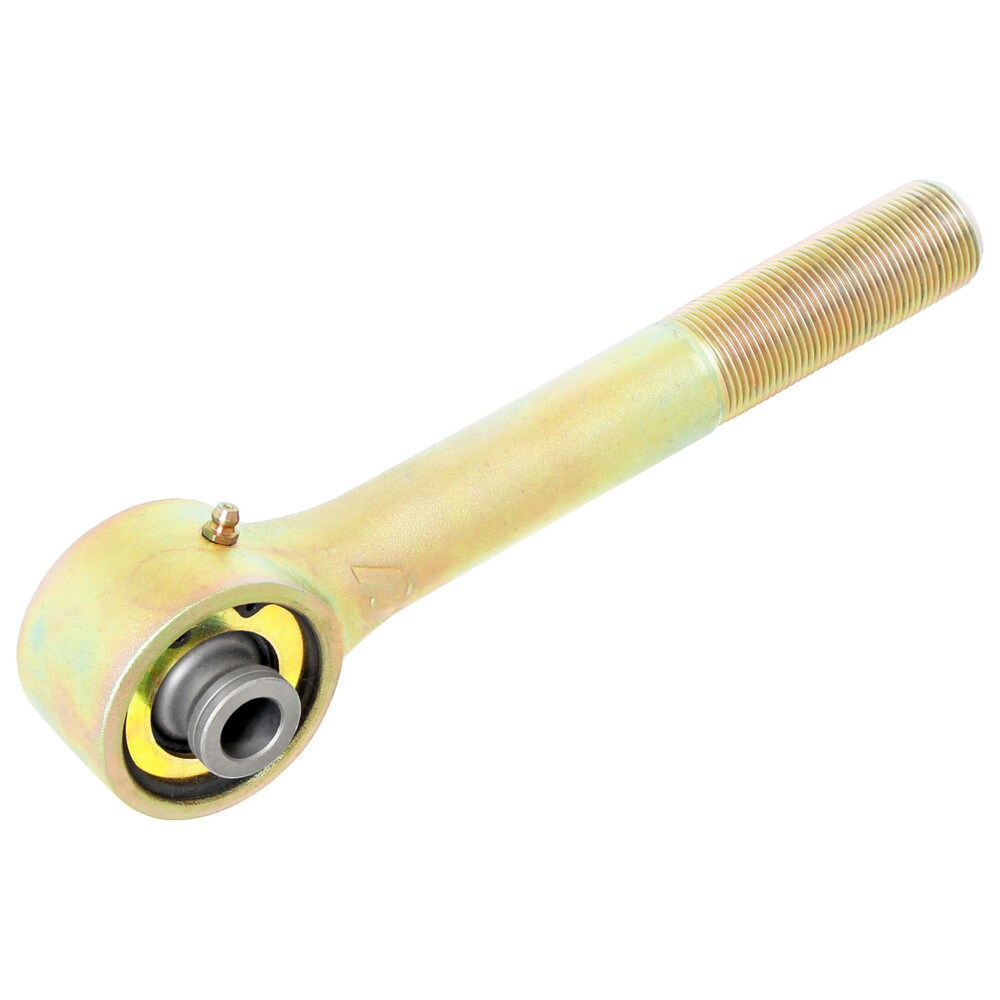

This 2 1/2 in. Johnny Joint incorporates our 1 1/4 in.-12 RH thread, narrow width, long shank, forged 4140 chromoly body and a 2.365 in. overall width x .562 in. thru-bolt hole pivot ball.
Features of the long shank design include the the jam nut being pushed outward, away from suspension brackets that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application, or to gain clearance in tight spots.
Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.



Rod End Fits:

  • Universal Application
  • JL Wrangler (2-door) – R upper control arms
  • JL Wrangler Unlimited (4-door) – R upper control arms
  • JK Wrangler (2-door) – R upper control arms
  • JK Wrangler Unlimited (4-door) – R upper control arms
  • 96-up Toyota 4-Runner (Gen 3/4/5) - R lower control arm
  • 03-22 Toyota FJ Cruiser – R lower control arms
  • 98-07 Toyota 100 Series (Land Cruiser) - R upper and lower control arms
  • 03-up Lexus GS - R lower control arm
  • Upgraded replacement joint for many common long arm kits on the market


Rod End Includes:

  • (1) Forged Johnny Joint Assembly


Rod End Features:

  • 39 degrees of articulation capability
  • Forged 4140 chromoly construction
  • 2 1/2 in. O.D. x 1.69 in. wide joint outer barrel
  • 3 1/2 inches of 1 1/4 in.-12 RH Threads
  • 9 1/2 inches from CL of joint to end of threads
  • 1-piece bushing internals
  • 2.365 in. wide x .562 in. thru-hole pivot ball
  • 1/4-28 in. zerk fitting for greasing
  • Fully assembled, ready for use right out of the box

Notes:

  • The long shank design pushes the jam nut outward, away from suspension brackets that the joint mounts in to provide more clearance and accessibility to the jam nut
  • The smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application, or to gain clearance in tight spots
  • See CE-9114JN for a Jam Nut to fit this joint
  • See CE-9114B if a Weld-In Bung and Jam Nut are required
  • See RJ-576200-101 if a RockNut is required
  • See RJ-533000-1 for joint vertical stabilzation washers
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Tool for this Rod End: CE-9110T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
