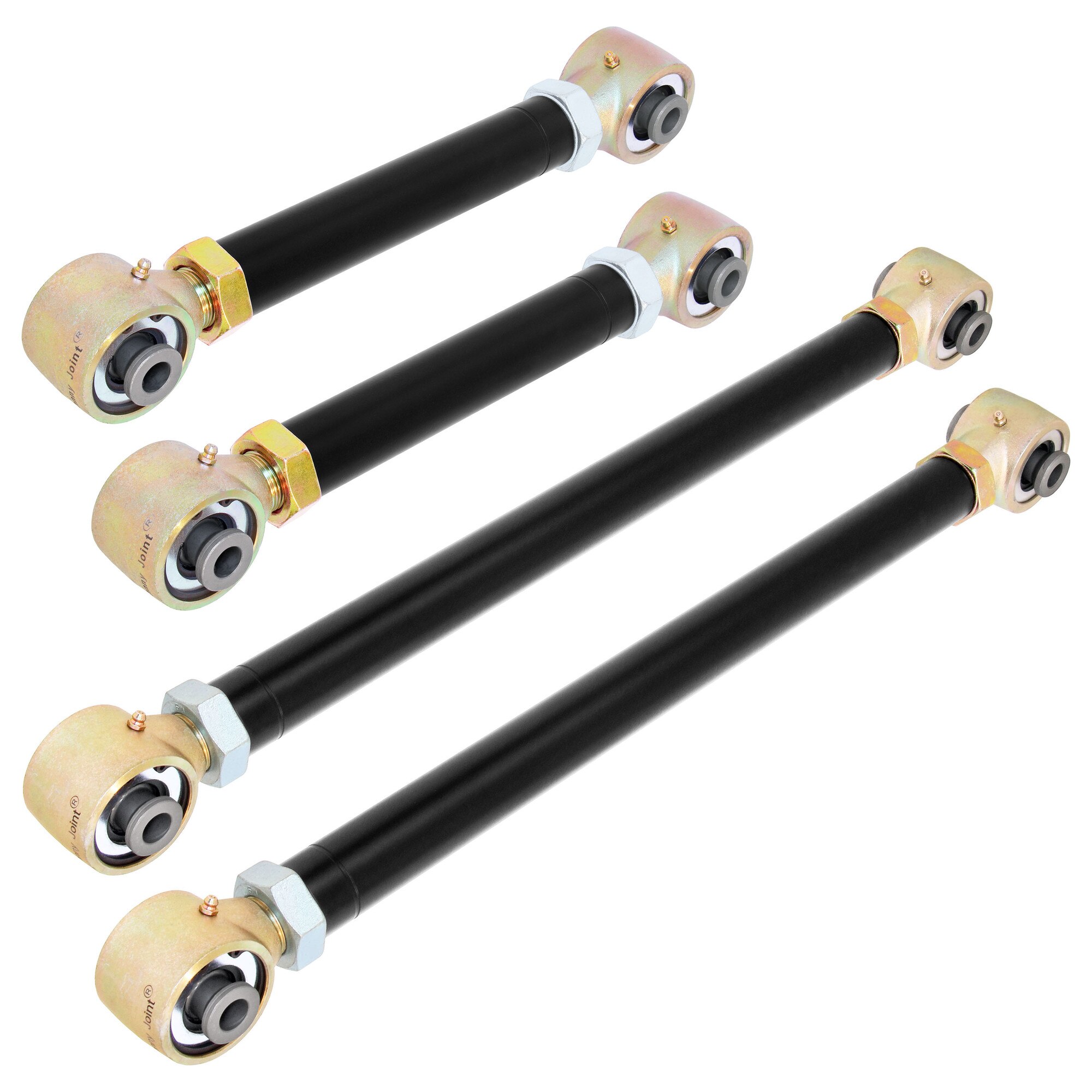

RJ-182400-101 - 2021-Up Bronco Johnny Joint Rear Control Arm Set
Details
Details
RockJock's Johnny Joint Rear Control Arm Set for all 2021-up Broncos provides you with extremely heavy duty, adjustable length control arms to replace your factory control arms.
Adjustable Control Arms are a must for aligning lifted vehicles to get your pinion angle specs. in check and our double adjustable design allows you to easily adjust the length of the arms without removing either end from the vehicle!
These arms are fabricated from 1 5/8 in. o.d. x .250 in. wall d.o.m. steel tubing and feature our 2 1/2 in. Johnny Joints with massive 1 1/4 in. RH/LH threads and corresponding jam nuts!
Johnny Joints, the original and most durable high-articulation urethane suspension joint on the market, feature a smooth steel ball that pivots inside a proprietary urethane shell to provide over 30 degrees (per joint) of quiet, shock dampening articulation - without the excessive deflection found in soft rubber-based flex joints. Johnny Joints deliver a smooth, comfortable on-road ride with the ultimate in off-road capability. They are so trusted, that they are used by multiple commercial suspension companies, for both street and off-road suspension systems.
Arms are fully greasable via zerk fittings. Finish is semi-gloss black powder coat on the arms and gold zinc plating on the Johnny Joint ends.
Kit Fits:
- 2021-up Bronco – All Models
Kit Includes:
- Johnny Joint Rear Upper Control Arms (pair)
- Johnny Joint Rear Lower Control Arms (pair)
Adjustment Range:
- Upper Arms Closed = 13.900 in.
- Upper Arms Extended = 16.000 in.
- Lower Arms Closed = 25.100 in.
- Lower Arms Extended = 27.000 in.
Component Specs.:
- Construction = 1 5/8 in. o.d. x .250 in. wall d.o.m. steel tubing
- Threads = 1 1/4 in. RH/LH
- Finish (arm bodies) = semi-gloss black powder coat
- Finish (Johnny Joints) = gold zinc plating
Notes:
- Factory hardware is retained to attach arms to the axle and the chassis.
- Johnny Joints require non-synthetic, hi-moly lube grease such as our
- Applicable Johnny Joint Tool for these Control Arms:
Parts List:
- Arm Body (upper): RJ-182500-1
- Arm Body (lower): RJ-182600-1
- Johnny Joint Adjuster End Forging (RH thread):
- Johnny Joint Adjuster End Forging (LH Thread):
- Johnny Joint Rebuild Kit:
- Johnny Joint Pivot Ball (frame side):
- Johnny Joint Pivot Ball (axle side):
- Jam Nut (RH thread):
- Jam Nut (LH thread):
- Zerk Fitting:
