RJ-107102-101 - JL/JT/JK Front Bump Stop Kit (2 in.)

SKU RJ-107102-101
$88.00
Back

Details

RockJock 2 Inch Front Bump Stop Kit was specifically designed for frame mounting on all JL/JK Wrangler and Unlimited and JT Gladiator models where 2 in. of boost in bump stop spacing is a good solution for your application!

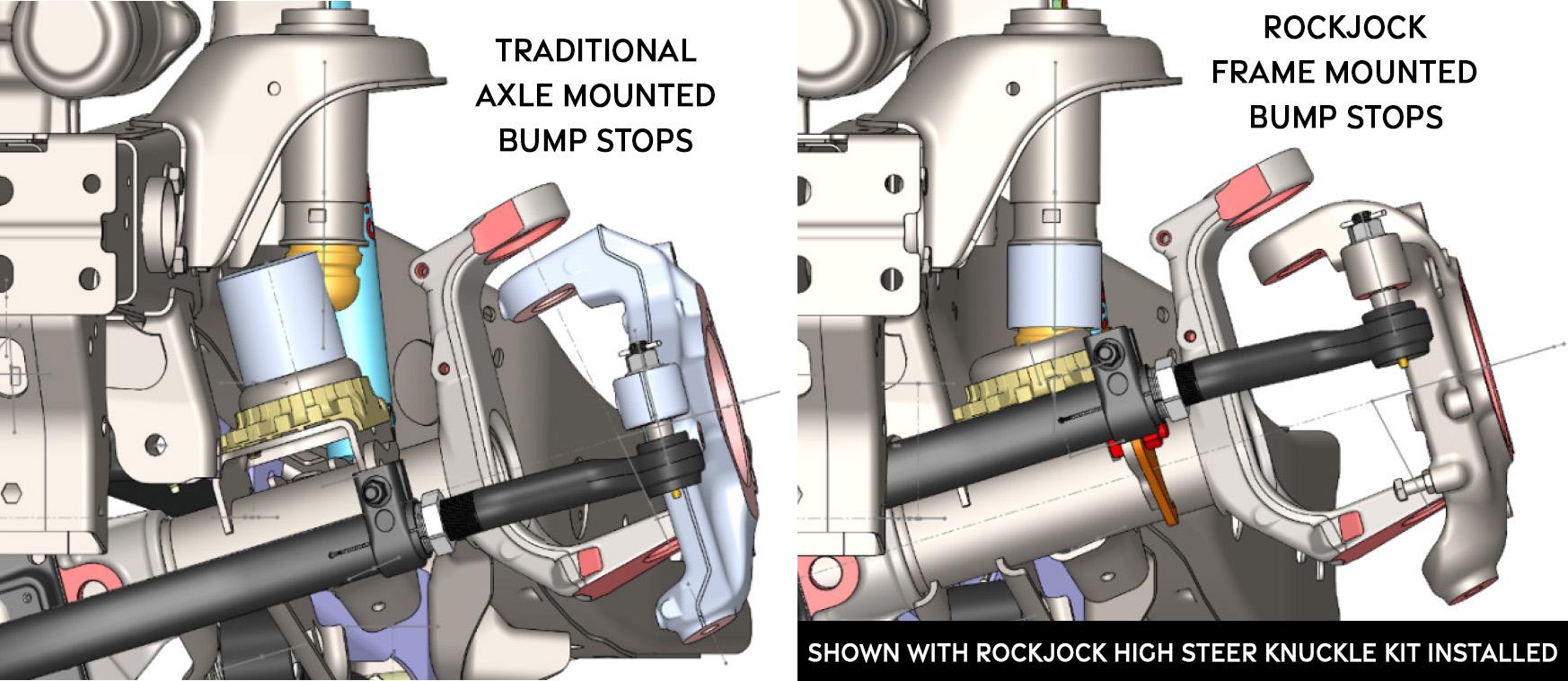

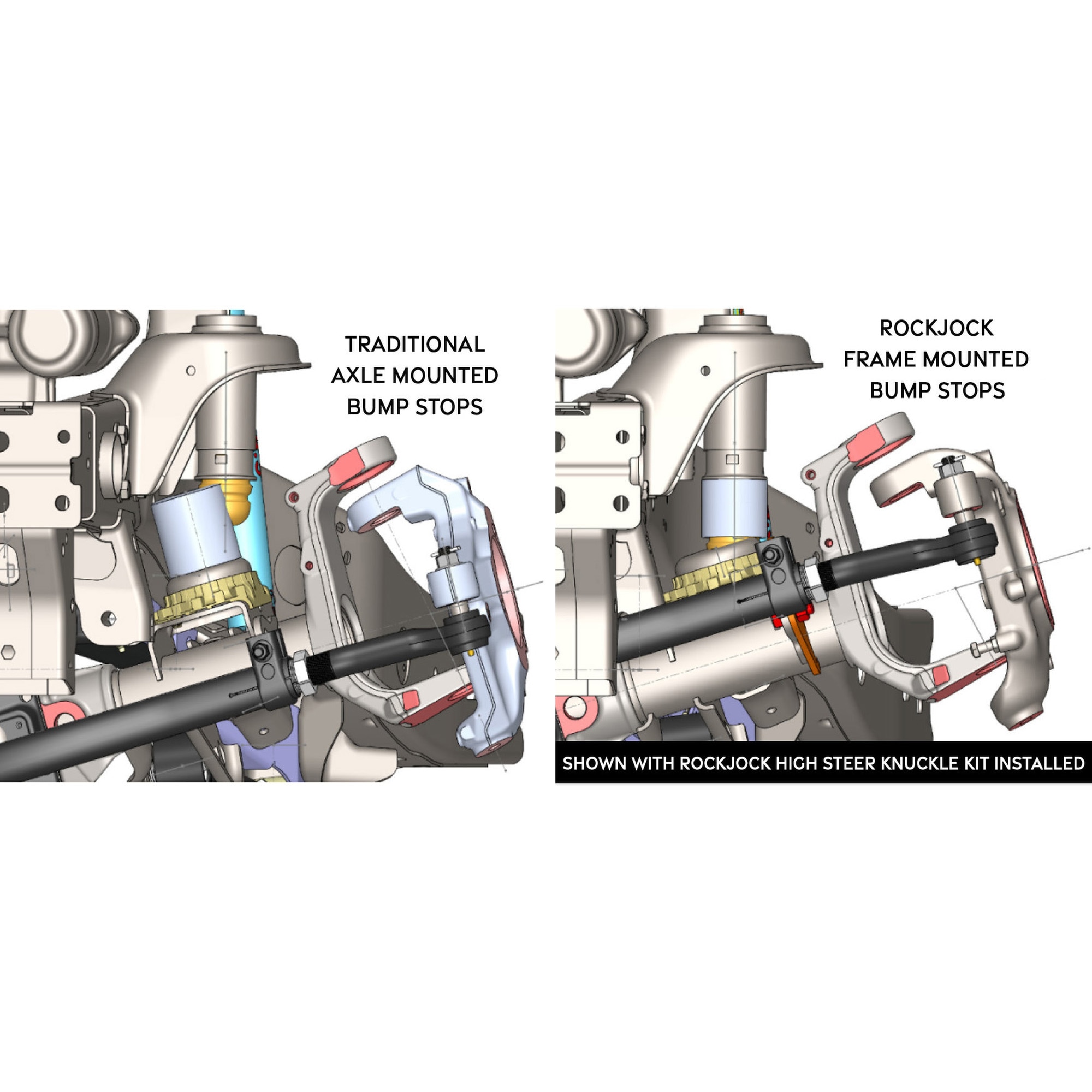

In high articulation situations, an axle housing mounted bump stop ends up rotating inward toward the center of the vehicle, often missing the upper bump stop entirely (see diagram in the photo gallery). By lowering the upper bump stop, you are able to guarantee bump stop contact when and where you need it.
We specifically use this bump stop (and include it in) our JL and JT EcoDiesel drivetrain Suspension System Systems.

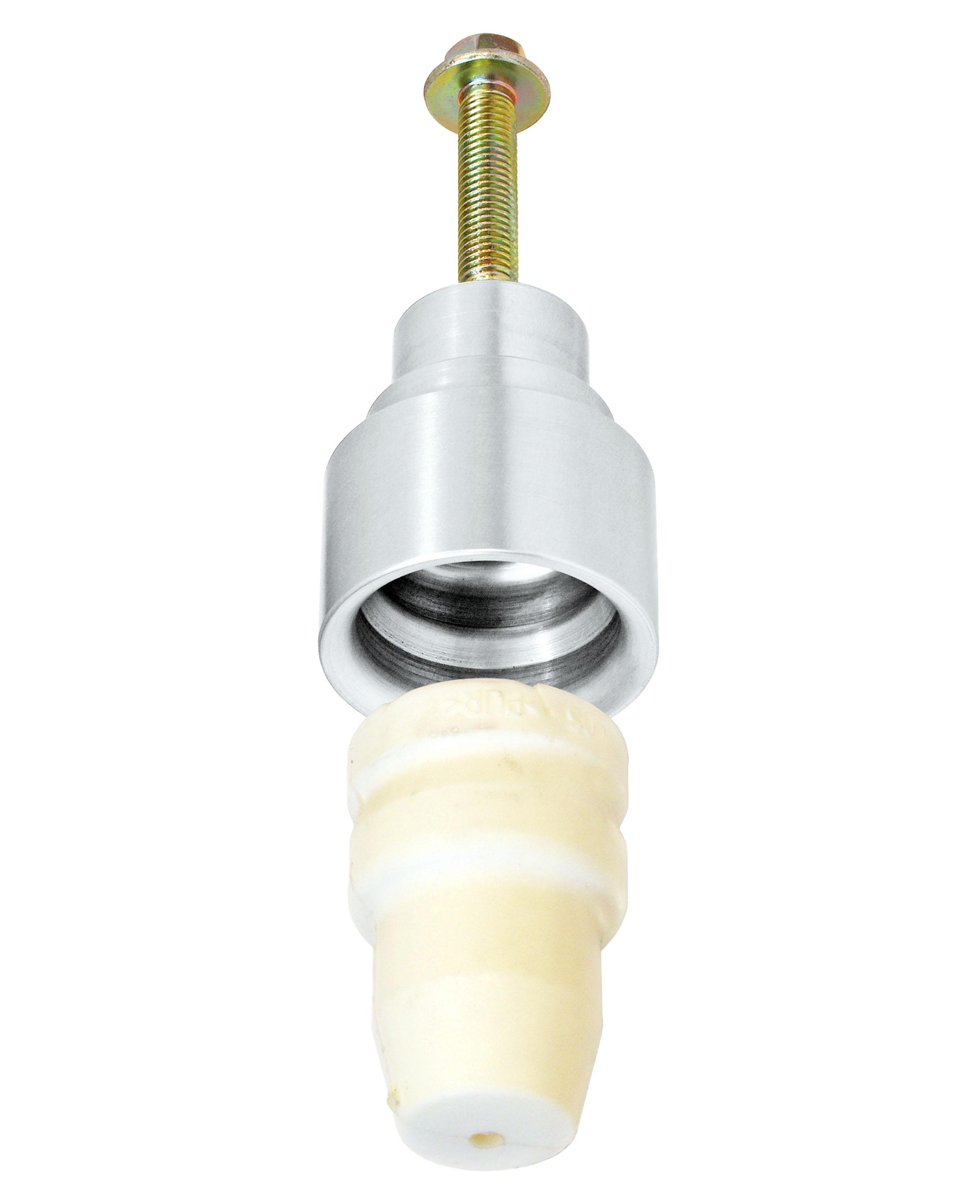

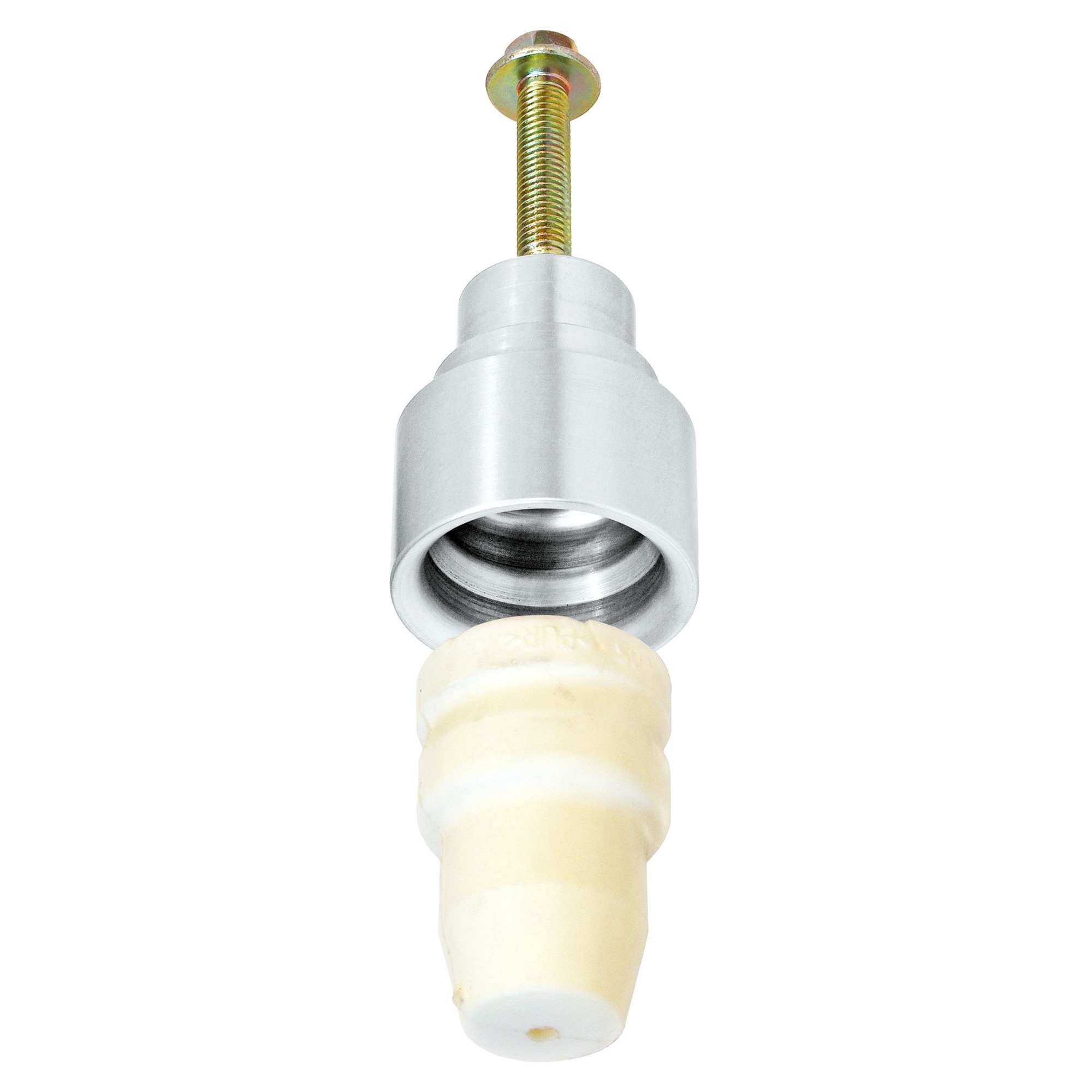

Factory yellow jounce bumpers are retained and relocated by inserting it back into the bottom of the new aluminum RockJock bump stop body. This provides factory feel when the bump stops make contact.
Spacers are CNC machined billet aluminum. Finish is clear anodize on the bump stops and zinc plating on the hardware.


Kit Fits:

  • JL Wrangler (2-door) - All Models
  • JL Wrangler Unlimited (4-door) – All Models
  • JT Gladiator – All Models
  • JK Wrangler (2-door) - All Models
  • JK Wrangler Unlimited (4-door) – All Models

Kit Includes:

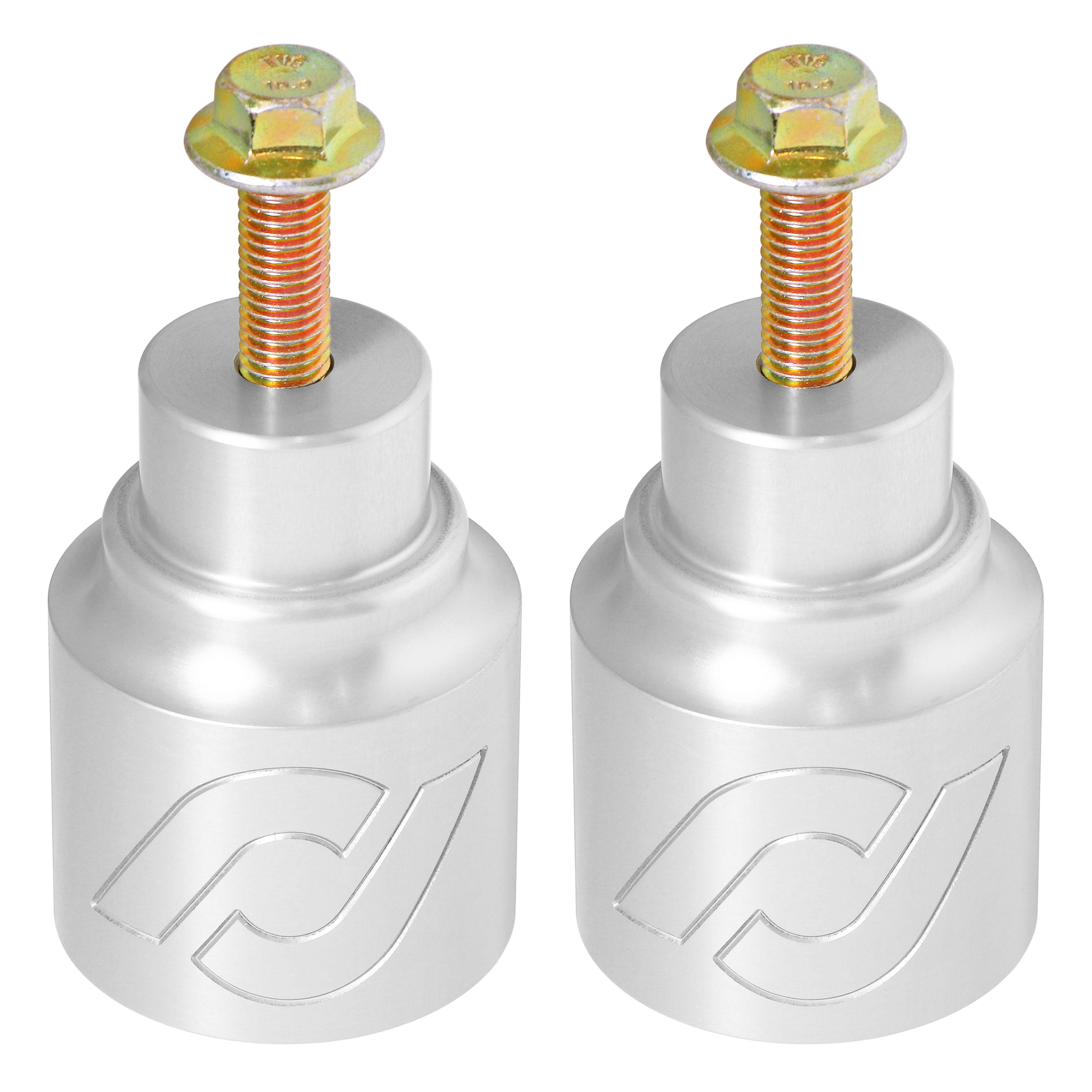

  • (2) Aluminum bump stop spacers (fit right or left side)
  • All Required Hardware
  • Factory yellow jounce bumpers NOT included! (reuse stock ones, Mopar PN: 68480876AA)

Component Specs.:

  • Spacers are 3.410 in. tall (overall)
  • Spacers provide 2 in. bump stop spacing
  • Spacers are 2.470 in. O.D.
  • Threaded hole is 12mm-1.75 thread

Notes:

  • May be used on any JL, JT or JK build that could use 2 inch of bump stop boost.
  • NOT for use with JT Mojave model.
  • Intended for use with our 3.5 in. lift JL and JT EcoDiesel front coil springs in our JL and JT EcoDiesel Suspension Systems.
