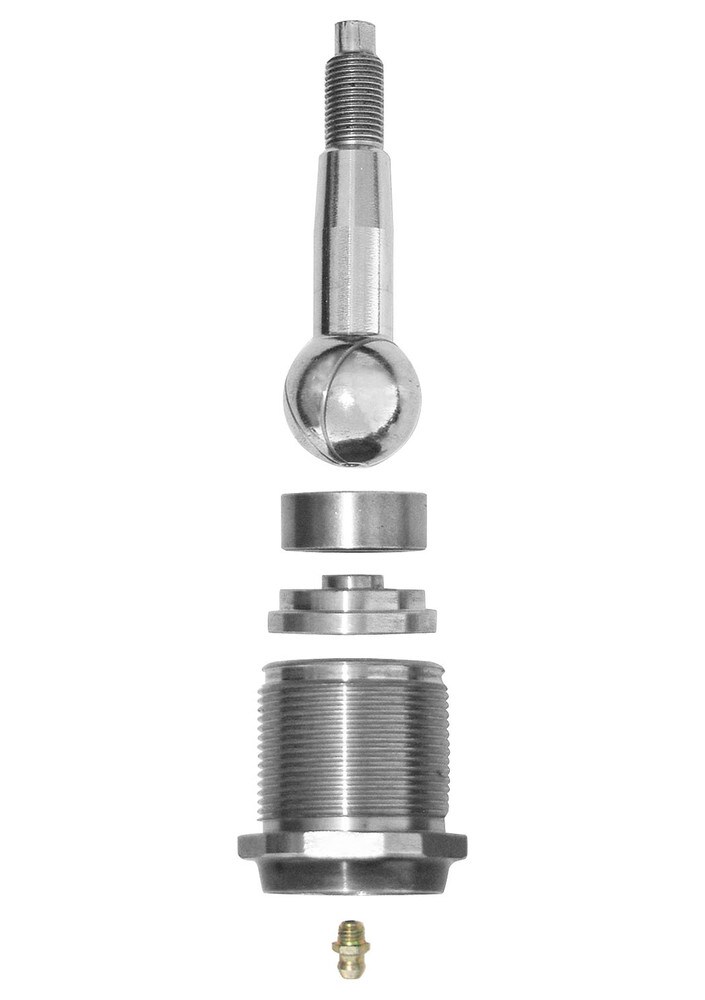

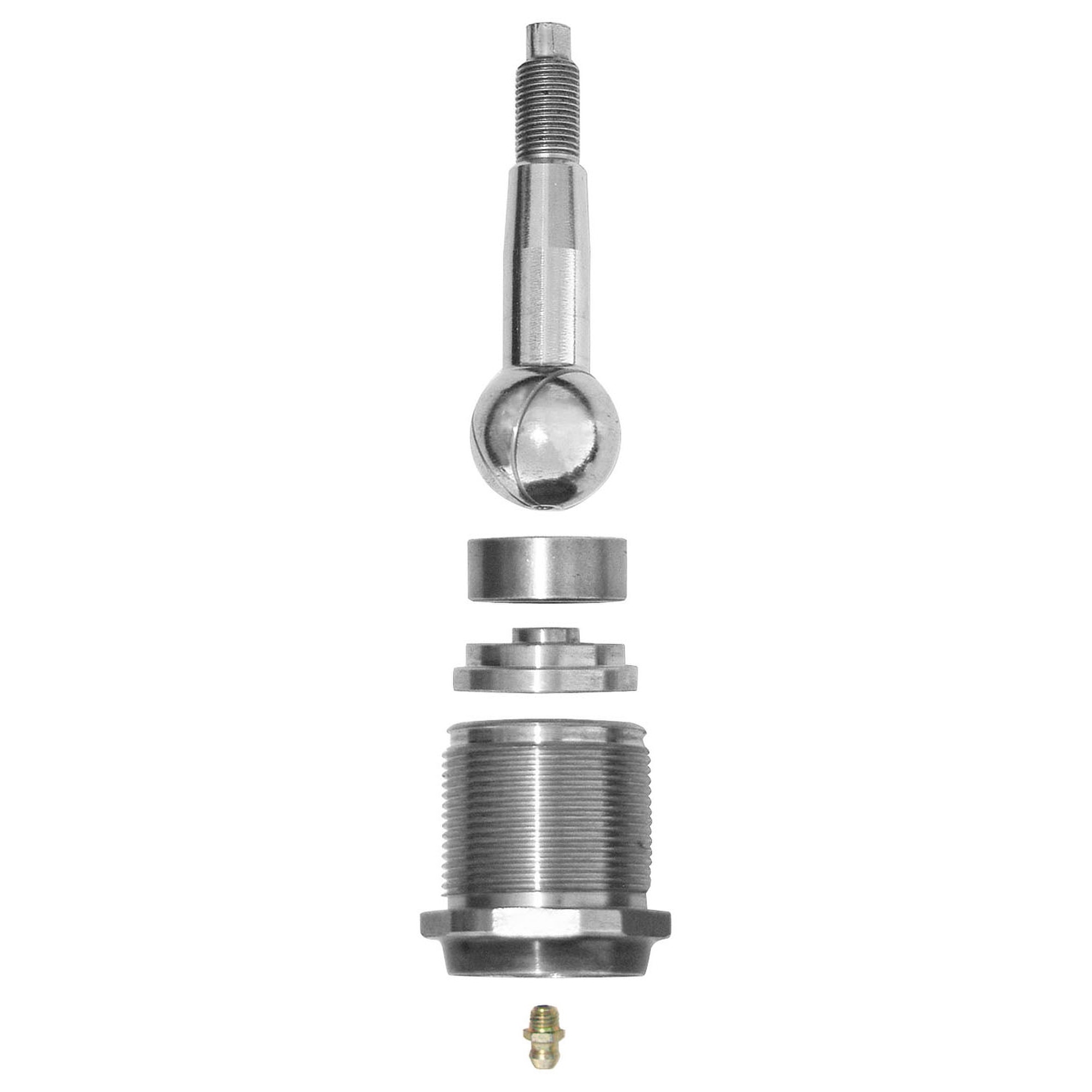

RockJock's Modular Extreme Duty JL/JT Drag Link End Cartridge features a tapered pin that installs into the tapered hole in the pitman arm (only) on JL Wrangler, JL Unlimited and JT Gladiator vehicles (only).
This cartridge is used in conjunction with our various Modular Extreme Duty rod end forgings.

Kit Fits:

• Universal Application
• JL Wrangler Unlimited (4-door) - All Models (with factory tapered pitman arm)
• JL Wrangler (2-door) - All Models (with factory tapered pitman arm)
• JT Gladiator - All Models (with factory tapered pitman arm)

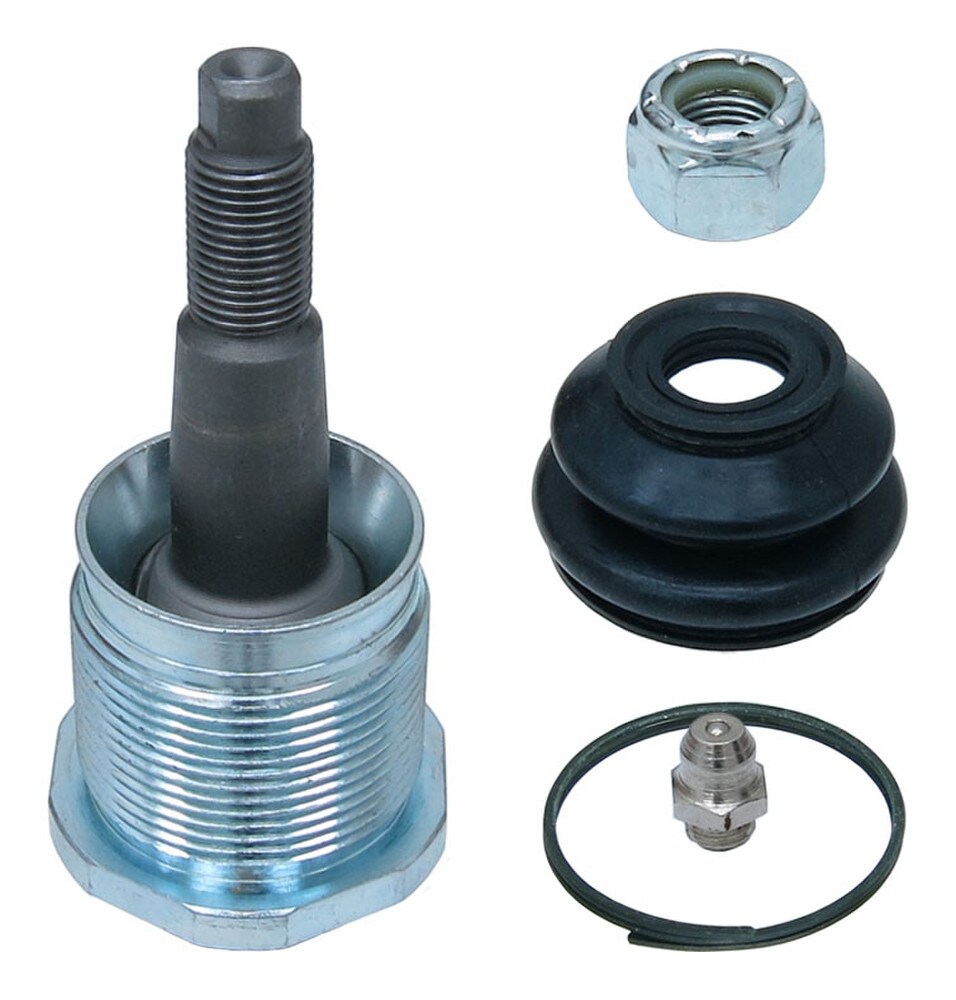

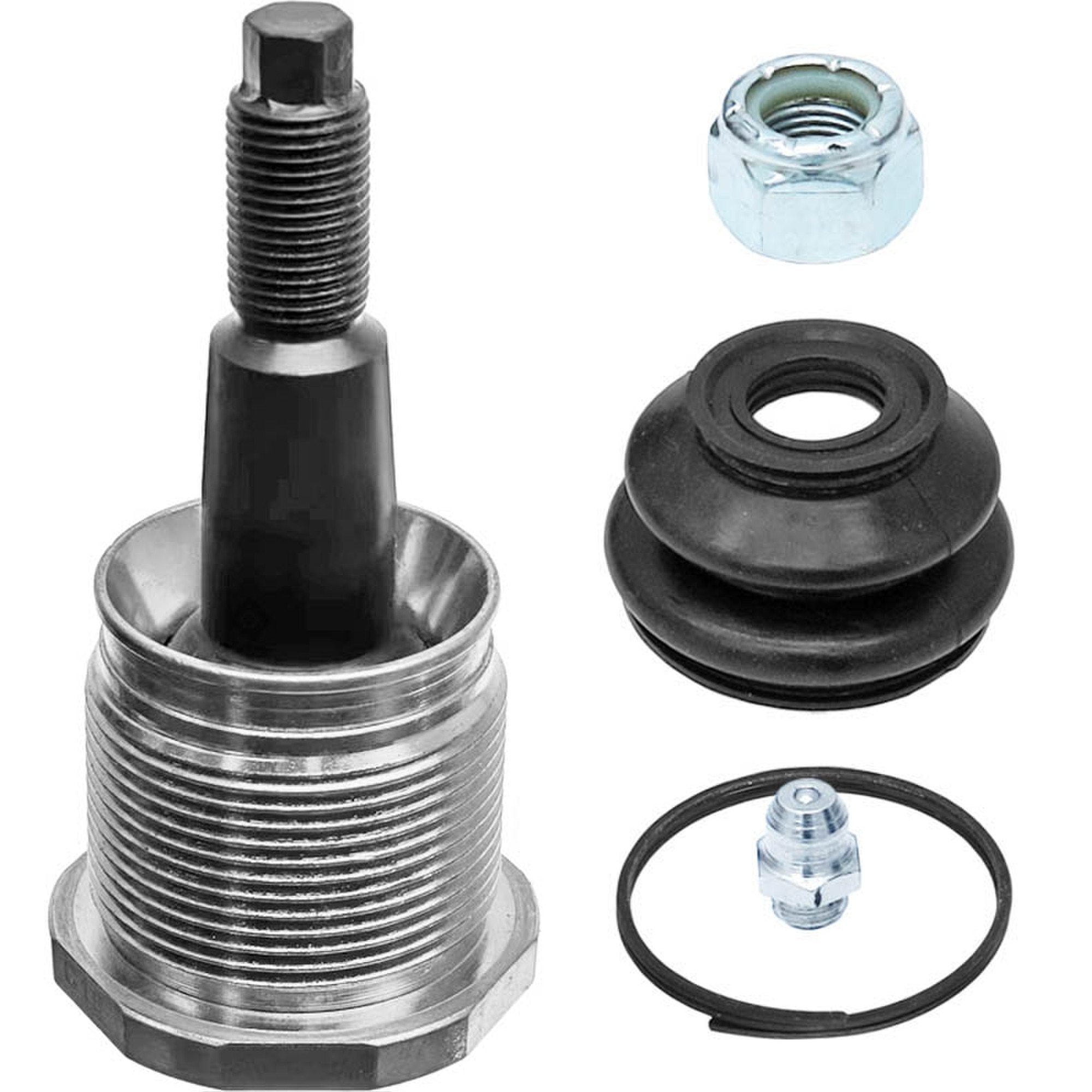

Kit Includes:

• (1)  Drag Link End Cartridge
• (1)  Articulating Style Boot
• (1)  Boot Retaining Ring
• (1)  9/16 in.-18 Thread Nyloc Nut
• (1)  Zerk Fitting

Cartridge Specs.:

• Taper on the stud  =  factory JL and JT pitman arm taper (only)
• Thread on the stud  =  9/16 in.-18 RH

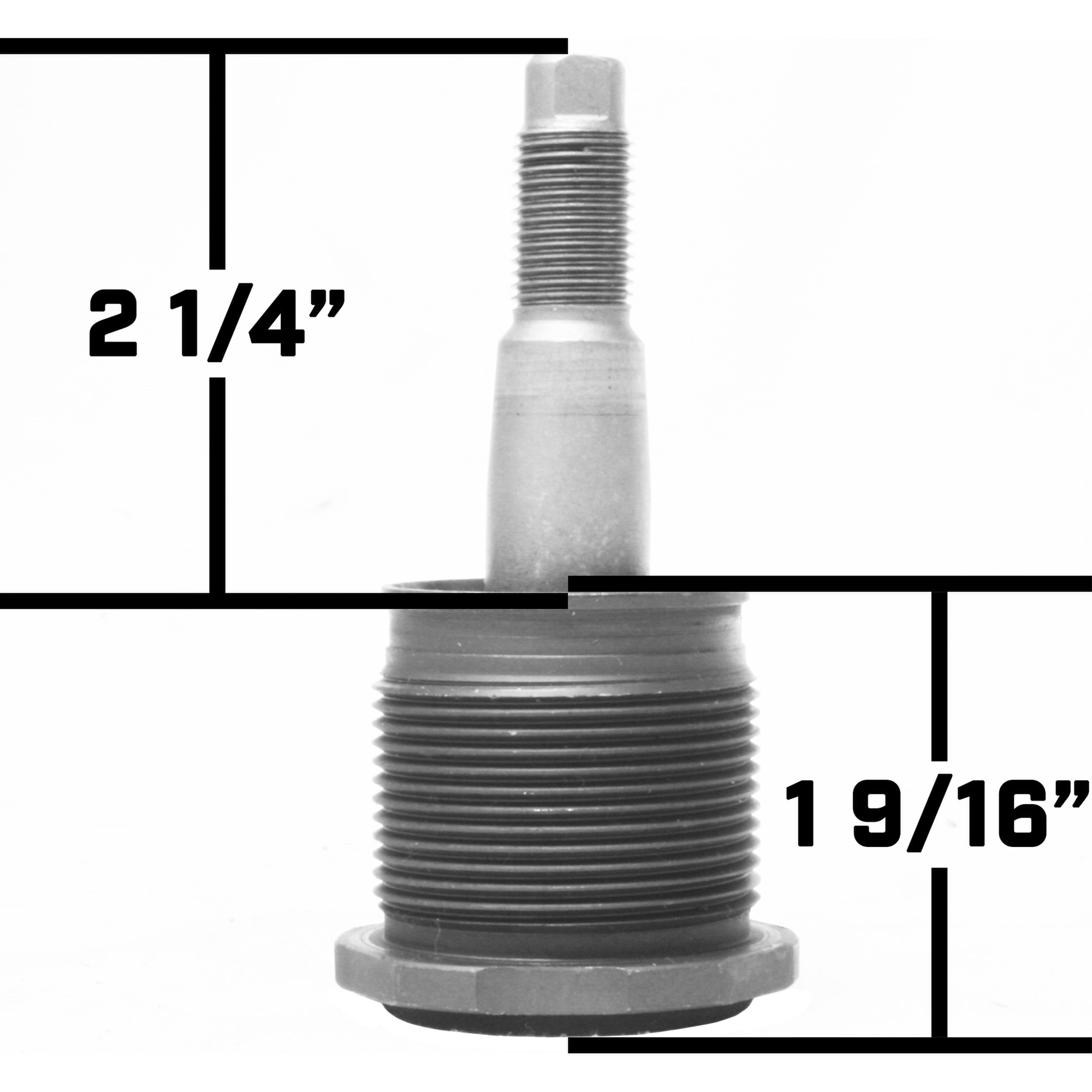

• Threaded stud length (top of body to tip of stud)  =  2 1/4 in.
• Thread on the body  =  1 3/4 in.-12 RH
• Threaded body height  =  1 9/16 in.
• Hex Size (on the threaded body)  =  2 in.
• Installation Torque  =  250 ft. lbs.

Notes:

• Taper fits JL and JT pitman arms only
• Requires the use of our JK-9703W wrench or a 2 in. socket for removal or installation
• May be installed into the rod end forgings from from the top or the bottom
