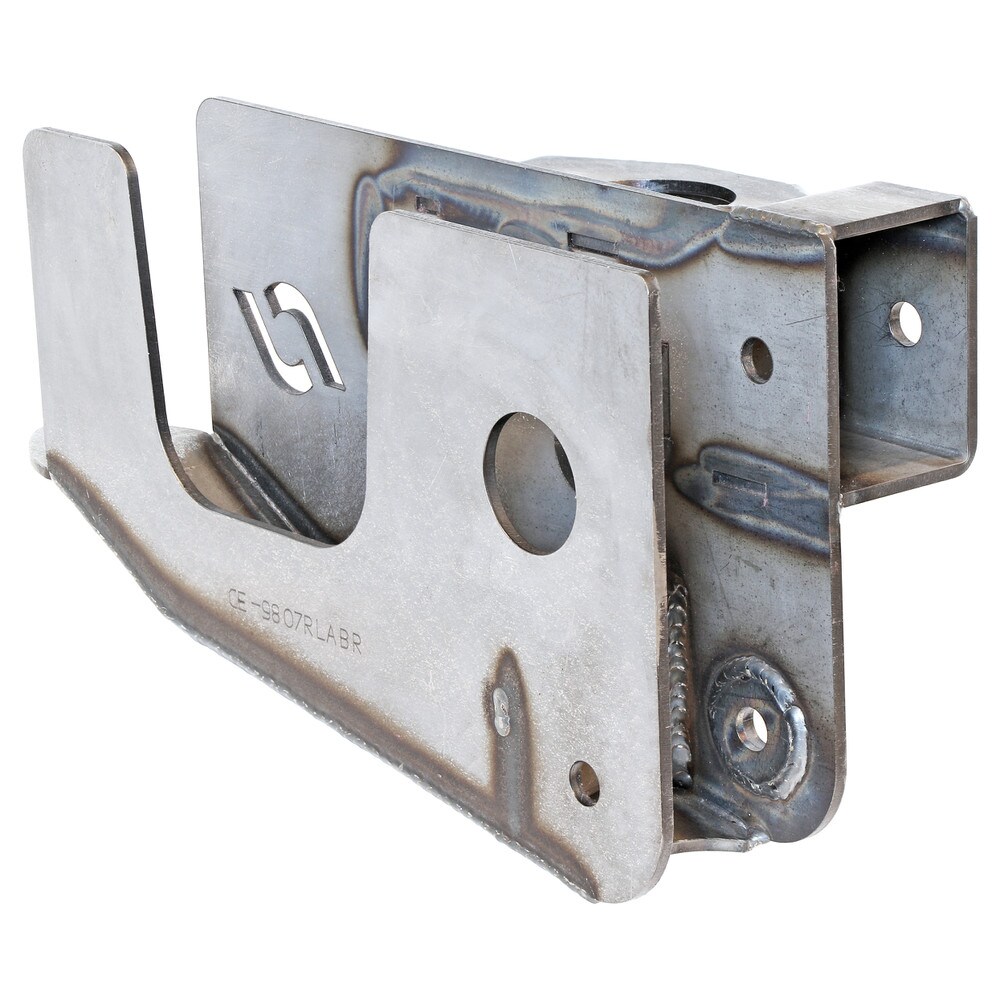

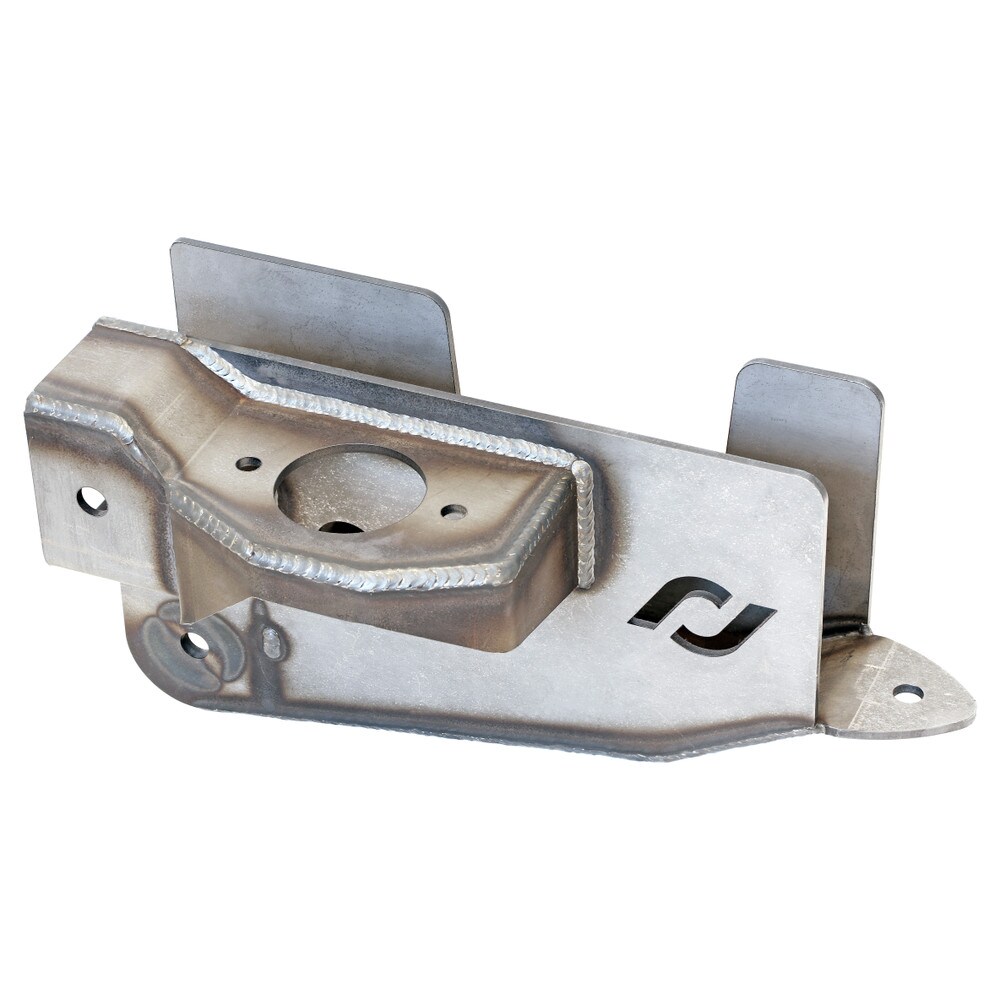

CE-9807RLABR - JK Long Arm Frame Bracket (RR)
Details
Details
RockJock’s Right Rear JK Long Arm Suspension Kit Frame Bracket (only sold in our
Installation of this bracket requires your factory control arm brackets and the rearmost body mount that is in front of the back tire to be cut off and the frame rail ground smooth, This bracket then easily indexes onto the vehicle's frame for location and then it gets welded on! The rear body mount is then relocated using our rear body mount relocation bracket and it's associated hardware to bolt it on. See our for more information.
This is not an entry level installation and should only be installed by a well-equipped, experienced shop!
Kit Fits:
- JK Wrangler Unlimited (4-door) - All Models with a minimum of 70 in. wide axles
- JK Wrangler JL (2-door) - All Models with a minimum of 70 in. wide axles
Kit Includes:
- RR Long Arm Bracket
Notes:
- ***IMPORTANT*** - Our long arm components require modifications and welding to the frame of your vehicle! It is highly recommended that only a well-equipped, experienced shop perform the installation of these components!
- Due to the straight control arms featured in our long arm kit, these components are ONLY for use on vehicles with a minimum of 70 in. wide axles
- Our long arm kits are ideally designed to work with the balance of our 3.5 in. lift components.
Parts List:
- JK Long Arm Frame Bracket (RR)
This bracket is used in conjunction with:
- JK Long Arm Kit Hardware Pack:
