CE-9807LAHK - JK Long Arm Kit Hardware Pack

*** NOT AVAILABLE FOR PURCHASE - only available in our RJ-131001-101 JK Long Arm Suspension Bracket Set. ***

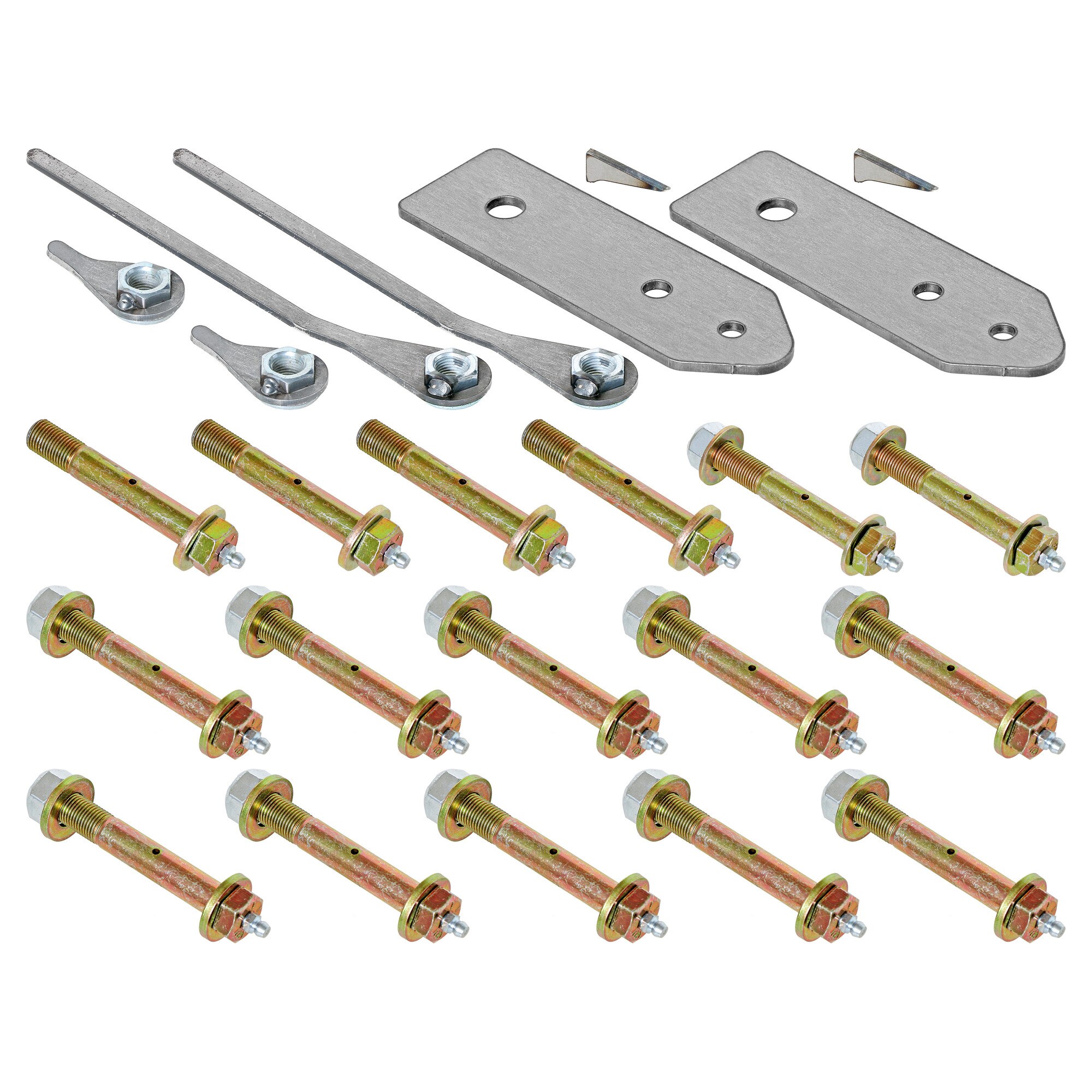

JK Long Arm Kit Hardware Pack includes the laser cut 3/16 in. steel rear body mount relocation tabs, laser cut 3/16 in. steel front long arm control arm bracket gussets and all of the necessary bolts, washers, nuts and nut plates for installing our JK Long Arm Kit.

Kit Includes:

• (2)  Rear Body Relocation Bracket:  CE-9807RLABBM
• (2)  Front Frame Bracket Gusset:  CE-9807FLABT
• (10)  9/16 in.-18 x 4 in. Long Greasable Hex Bolt:  CE-H0044
• (4)  9/16 in.-18 x 3 1/2 in. Long Greasable Hex Bolt:  CE-H0044M
• (24)  9/16 in.-18 Flat Washer:  CE-H0022
• (10)  9/16 in.-18 Stover Locking Nut:  CE-H0025
• (2)  9/16 in.-18 Nut Plate (short):  CE-9807FLANF
• (2)  9/16 in.-18 Nut Plate (long):  CE-9807RLABNF
• (2)  1/2 in.-20 Greasable Hex Bolt w/ Washers and Stover Lock Nut:  CE-91128

Installation Guide:

• Long Arm Kit Guide
