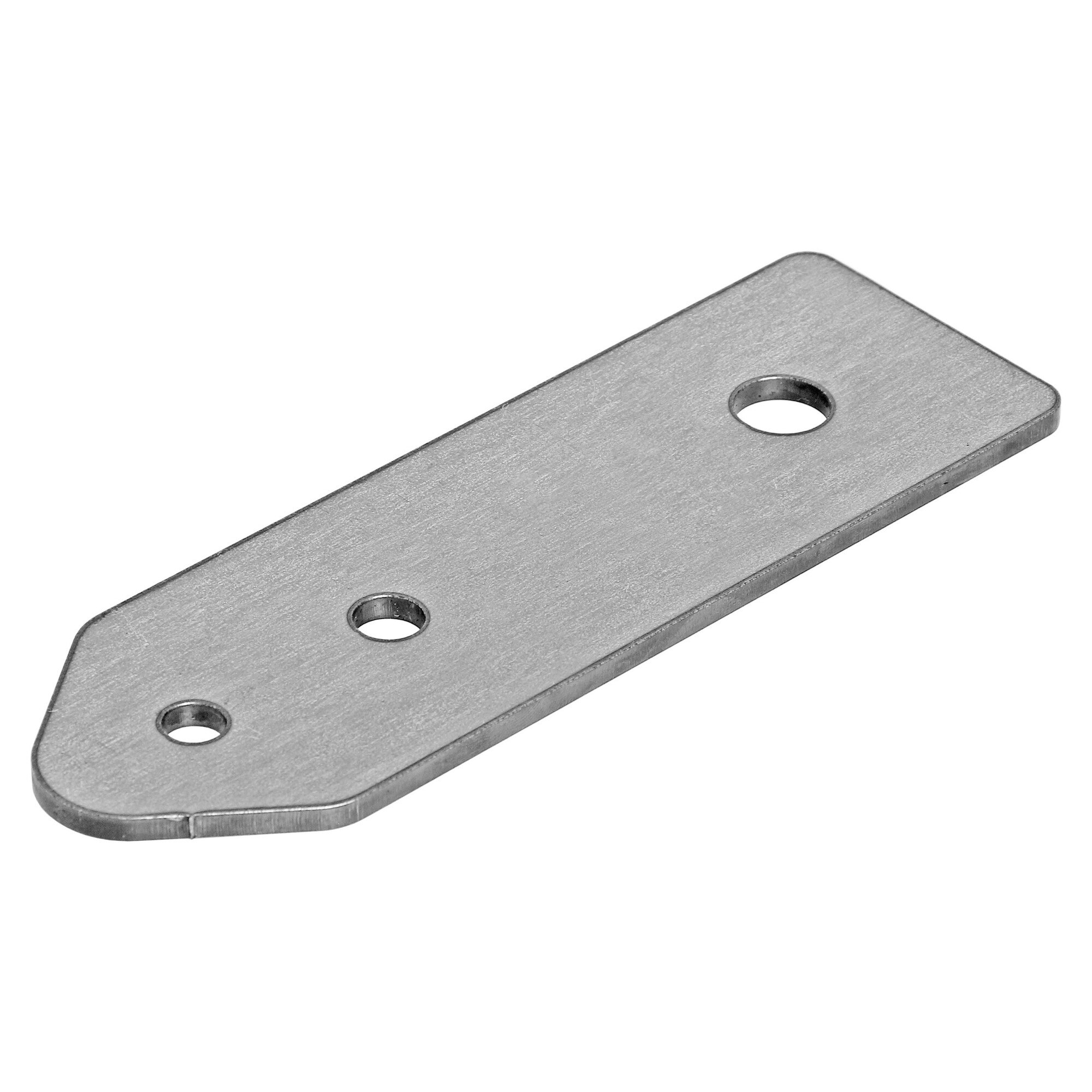

CE-9807RLABBM - JK Long Arm Kit Rear Body Mount Tab

*** NOT AVAILABLE FOR PURCHASE - only available in our RJ-131001-101 JK Long Arm Suspension Bracket Set. ***
RockJock's Rear Body Mount Relocation Tab for our JK Long Arm Kit allows for an easy body mount relocation solution when installing the rear frame brackets. Bracket installs between the bottom of the body tub (floor) and the top of the rear frame bracket (one on each side).

Component Specs.:

• Laser cut 3/16 in. thick steel
• 7 3/4 in. overall length
• 2 1/2 in. overall width
• Features one 5/8 in. hole at one end and a 7/16 in. and a 3/8 in. hole at the opposite end
• Raw finish

Installation Guide:

• Long Arm Kit Guide
