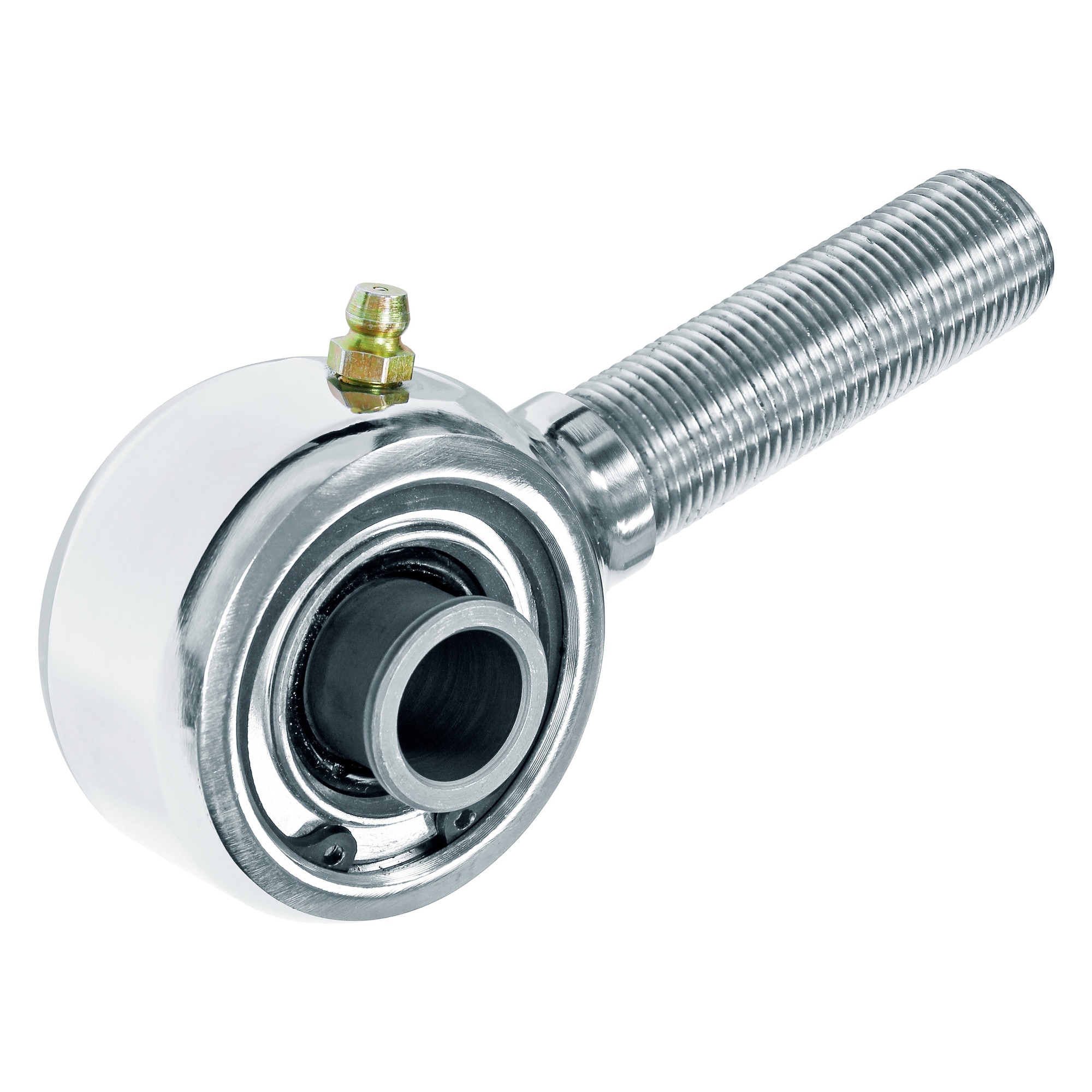

• CE-9112SSN75-16 - Johnny Joint 2 in. Polished Stainless Rod End (3/4 in. RH Thread, 1.800 in. x .630 in. Ball)

CE-9112SSN75-16 - Johnny Joint 2 in. Polished Stainless Rod End (3/4 in. RH Thread, 1.800 in. x .630 in. Ball)

Details

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This 2 in. Johnny Joint incorporates our 3/4 in.-16 RH thread, narrow width, polished stainless steel forged body and a 1.800 in. overall width x .630 in. thru-bolt hole pivot ball.
Greasing is handled externally, via the installed 1/4 in.-28 .

Give that high end chassis build in your hot rod, muscle car, off road vehicle, or anything else, that little bit of extra detail without having to worry about chrome! Forged stainless steel construction provides the perfect base for a beautiful polish!



Rod End Fits:

  • Universal Application


Rod End Includes:

  • (1) Forged, Polished Stainless Steel Johnny Joint Assembly


Rod End Features:

  • 25 degrees of articulation capability
  • Forged 17-4 stainless steel construction
  • 2 in. O.D. x 1.20 in. wide joint outer barrel
  • 2.32 inches of 3/4 in.-16 RH threads
  • 3.750 inches from CL of joint to end of threads
  • 1-piece bushing
  • 1.800 in. wide x .630 in. thru-hole
  • 1/4-28 in. zerk fitting for greasing
  • Polished finish
  • Fully assembled, ready for use right out of the box

Notes:

  • See for a Jam Nut to fit this joint
  • See if a Weld-In Bung and Jam Nut are required
  • See for joint vertical stabilzation washers
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our
  • Applicable Johnny Joint Tool for this Rod End:
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Instruction Manual:



Parts List:
