CE-9112A1 - GM A-Body Housing Johnny Joint (Single)

SKU CE-9112A1
$80.00

Details

JCPG's Johnny Joint Rod Ends have been a staple in the automotive aftermarket since 1996! Available universally for builders or found in our suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in any application, while still providing smooth, cushioned, quiet performance on the road.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This JCPG Johnny Joint Differential Housing Joint replaces the rubber rear differential housing upper control arm bushings on your GM A-body vehicle with a Johnny Joint rod end from JCPG, allowing you to get maximum articulation out of your rear suspension, as compared to rigid urethane bushings commonly found on the market for this location. If you are using our Currectrac control arms, this joint (when used with the balance of our CE-9112Akit) essentially finishes off the package by making all of your control arm mounting points Johnny Jointed and free to articulate.
This kit includes one machined Johnny Joint insert for for either side of the differential housing and one 1/2 in. greasable bolt.


Kit Fits:

  • Buick:  GS, Skylark (sedan and station wagon) - all stock 10 and 12 bolt rear axles
  • Chevrolet:  Chevelle (sedan and station wagon), El Camino, Monte Carlo - all stock 10 and 12 bolt rear axles
  • Oldsmobile:  442, Cutlass (sedan and station wagon) - all stock 10 and 12 bolt rear axles
  • Pontiac:  GTO, LeMans (sedan and station wagon), Grand Prix - all stock 10 and 12 bolt rear axles

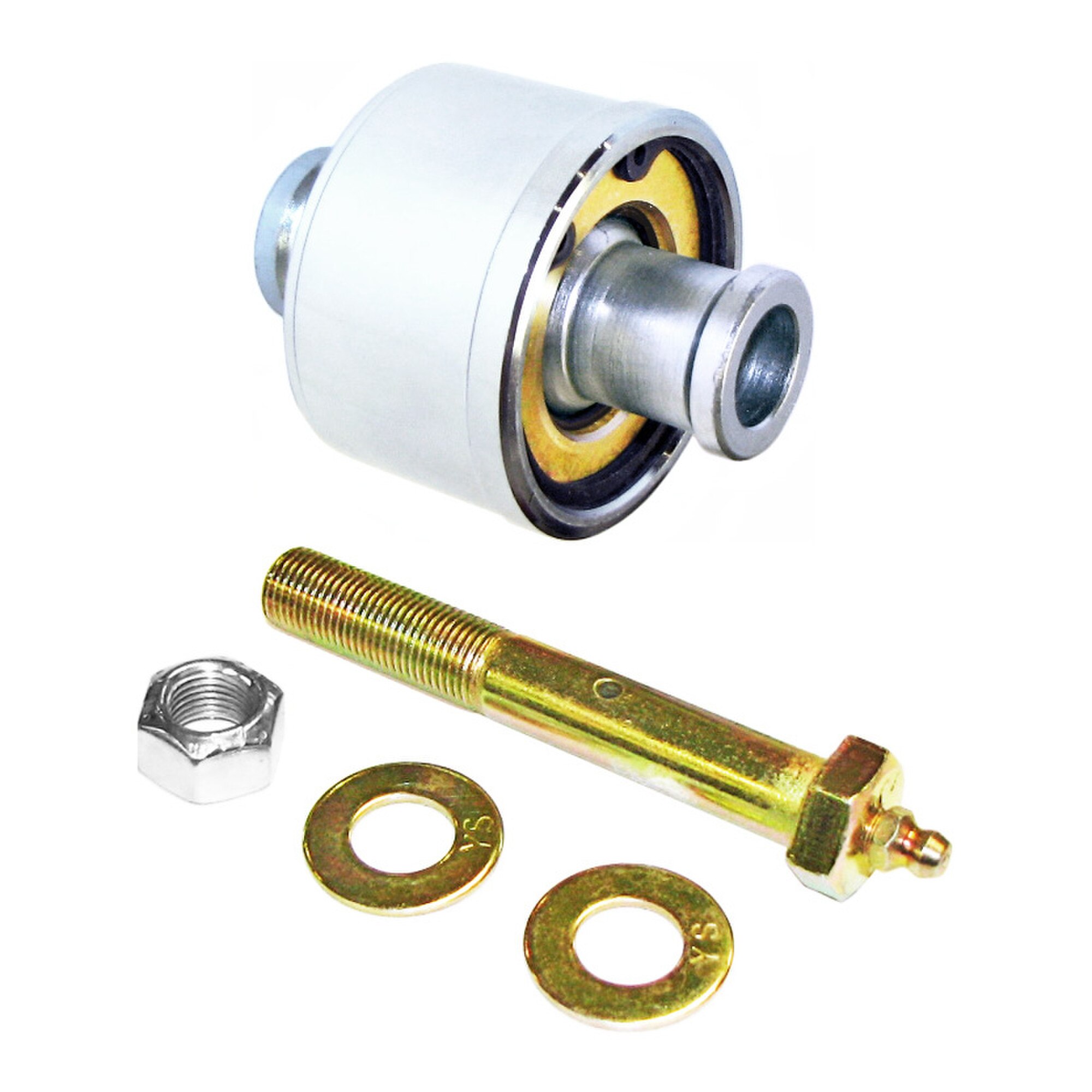

Kit Includes:

  • (1) Machined 2 in. Johnny Joint
  • (1) Greasable Bolt w/ Hardware

Kit Features:

  • Easy press-in installation (using supplied tool)
  • 30 degrees of articulation capability
  • CNC machined steel construction
  • 2 in. O.D. x 1.20 in. wide barrel dimensions
  • 1-piece bushing internals
  • 2.445 in. wide x .515 in. thru-hole pivot ball
  • 1/2 in.-20 x 3 1/2 in. long greasable bolt for greasing
  • Clear zinc plate finish
  • Fully assembled, ready for use right out of the box

Notes:

  • For use on factory, cast iron, GM 10 or 12 bolt A-body axle housings ONLY
  • Joint replaces stock rubber bushings or any aftermarket urethane bushing that may have been installed into your housing
  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Assembly/Disassembly Tool for these joints: CE-9112T
