CE-9111FNRK - Johnny Joint Rebuild Kit (3 in. Narrow, forged joints)

SKU CE-9111FNRK
$50.00
Back

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

This Johnny Joint Internal Kit for use in any forged, narrow width (2 in. wide) 3 in. Johnny Joint outer body includes 1 urethane bushing, 1 bushing side retaining washer (the other washer is built into the forging) and 1 snap ring to retain the internals into the Johnny Joint body.
The O.D. of the bushing provides a channel for grease to flow and adequately distribute, and a hole that allows the grease into the ball.



Kit Fits:

  • Any narrow width 3 in. Johnny Joint body (2 in. wide body)

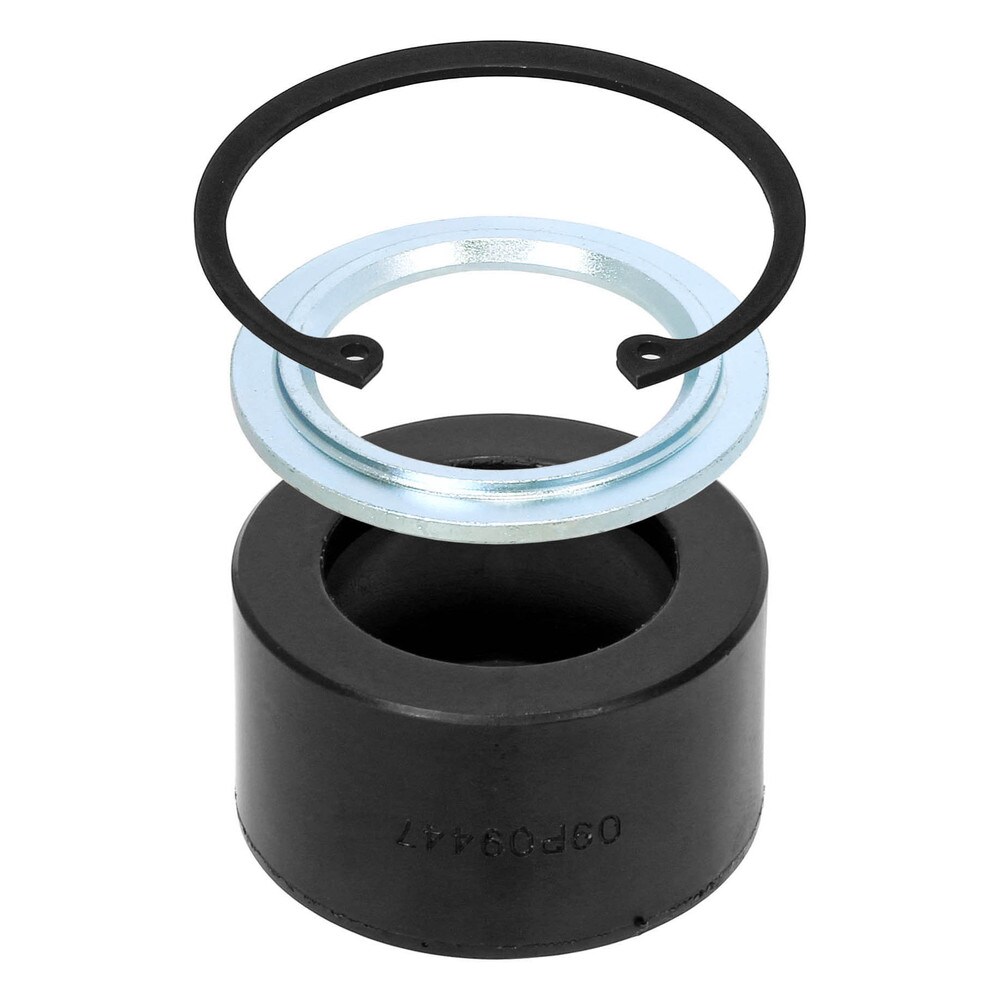

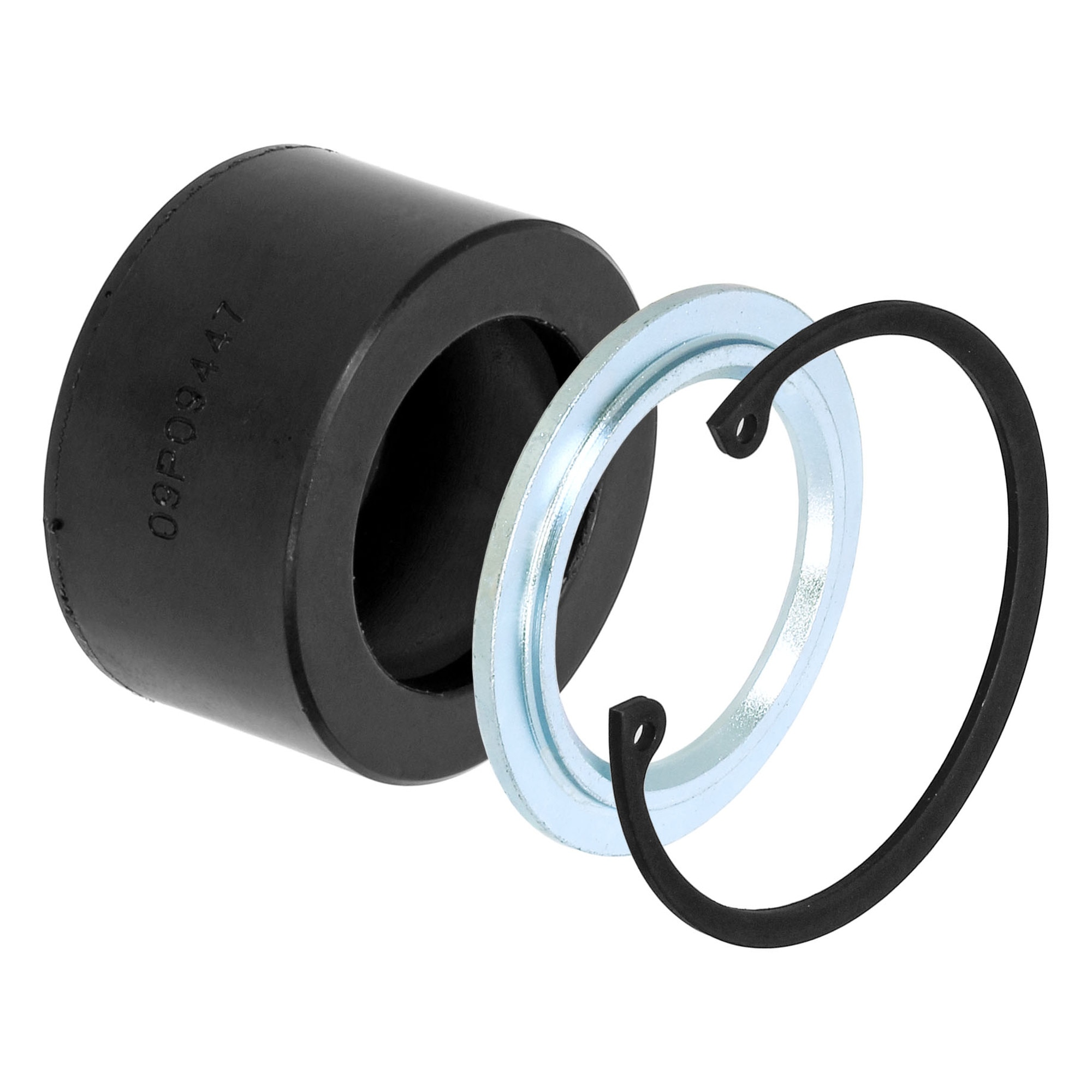

Kit Includes:

  • (1) Urethane Johnny Joint Bushing (2.535 in. O.D.)
  • (1) Side Retaining Washer (.125 in. thick)
  • (1) Snap Ring


Kit Features:

  • For use in any forged, narrow width 3 in. Johnny Joint body
    • See CE-9111NRK for a rebuild kit for a weld-on, narrow 3 in. joint
  • Bushings provide a channel for grease to flow and adequately distribute, and a hole that allows the grease into the ball

Notes:

  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint tool for these components: CE-9111T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
