RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

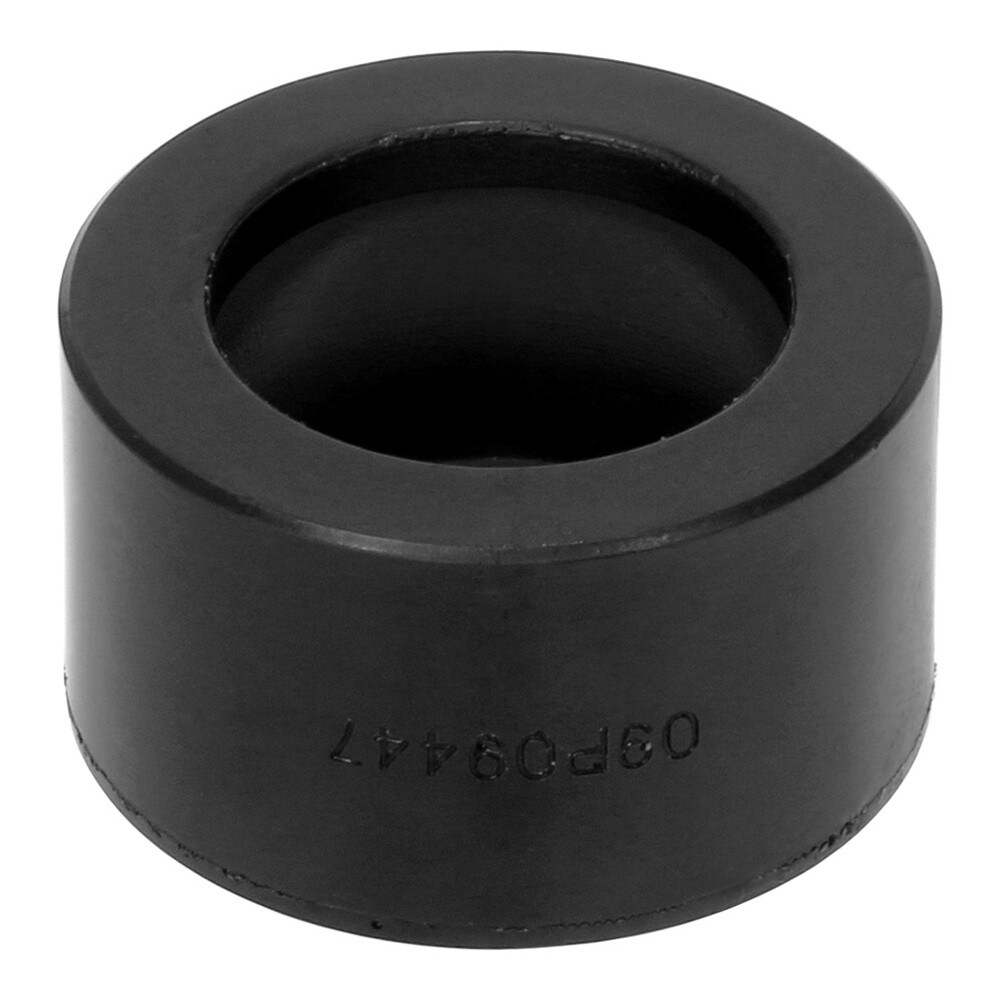

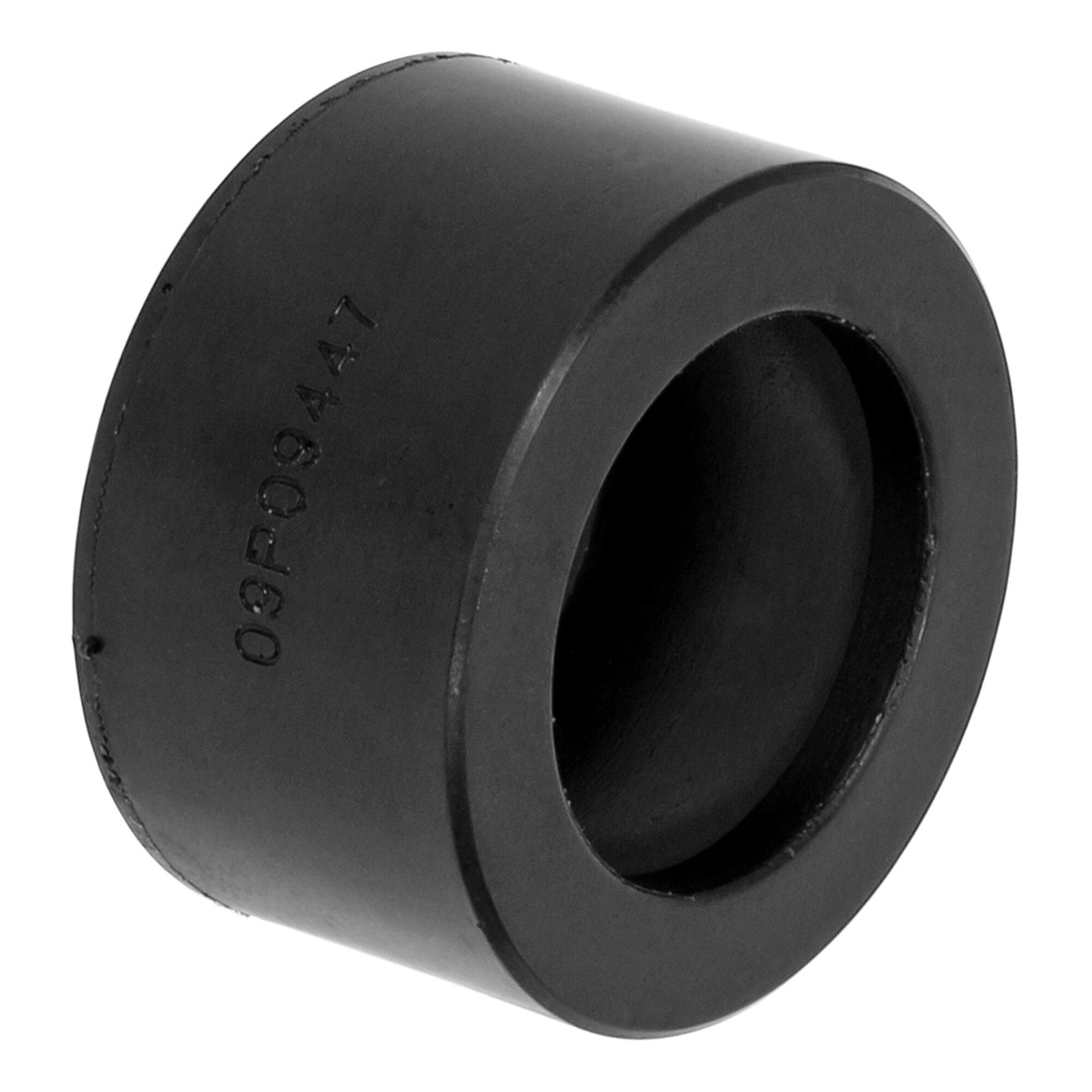

This Johnny Joint Bushing for use in any forged or weld-on, narrow width (2 in. wide) 3 in. Johnny Joint outer bodies, is sold as a rebuild part and is included in our rebuild kits. Bushing is constructed from our secret recipe of urethane that has evolved over decades of punishment to be the bushing you see here.

Kit Fits:

• Any narrow width, forged or weld-on, 3 in. Johnny Joint body (2 in. wide body)

Kit Includes:

• (1)  Urethane Johnny Joint Bushing (2.515 in. O.D.)

Kit Features:

• For use in any forged or weld-on, narrow width 3 in. Johnny Joint body
• See CE-9111NRK and CE-9111FNRK for a complete rebuild kits that include this bushing

Component Specs.:

• OD  =  2.515 in.
• Width  (overall thickness)  =  1.420 in.
• ID  (hole in side, not inner ball area)  =  1.672 in.
• Material  =  black urethane

Notes:

• Being that this is a one piece bushing that can be installed in any orientation - there is not a pre-drilled grease hole. Once the new bushing is installed in to the joint body, you'll have to run a 1/8 in. drill bit thru the zerk fitting hole in the joint's outer body and thru this bushing to provide a grease passage.
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint tool to rebuild a joint using this bushing:  CE-9111T
• *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Media Hub

• Watch: whats and whys video here
• Watch how-to rebuild a Johnny Joint in 1 minute here
• Watch what grease to use in a Johnny Joint here
