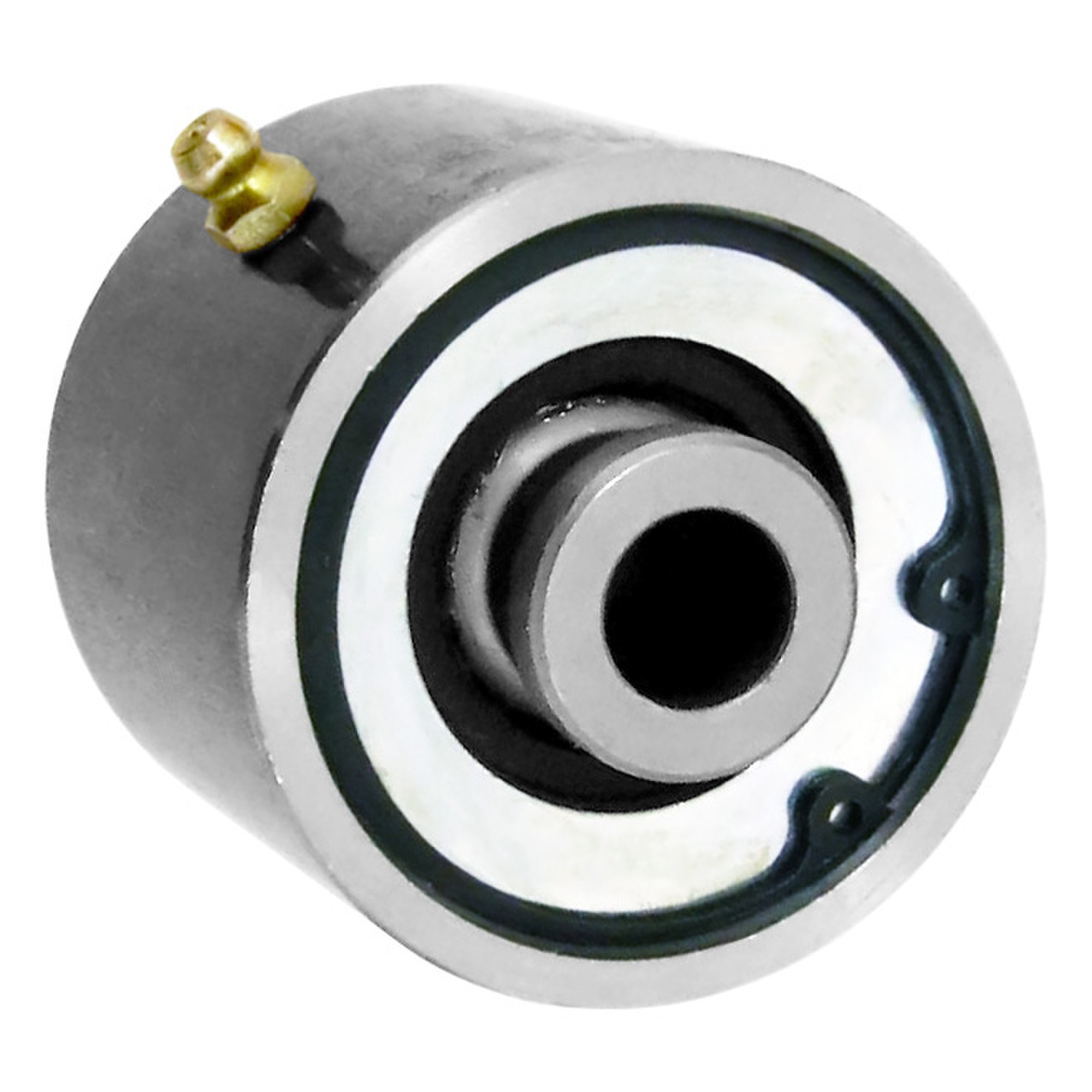

RockJock's weld-on Johnny Joints® for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint® rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2" o.d. and features a 2.440" mounting width and a .515" thru bolt hole.
