CE-9110CP - Johnny Joint 2 1/2 in. Chromoly Rod End (2.625 in. x .562 in. Ball)

SKU CE-9110CP
$70.00
Back

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

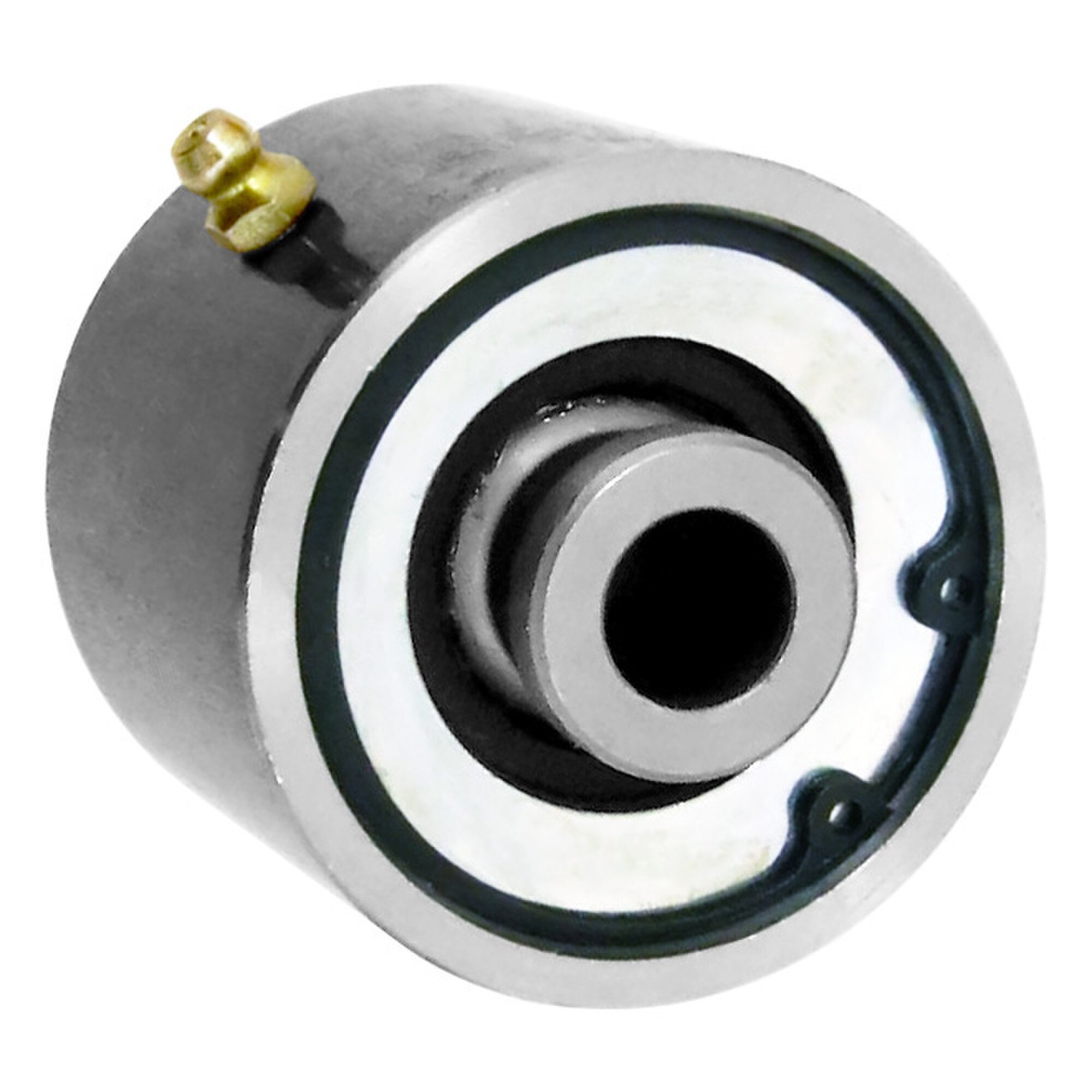

This 2 1/2 in. Johnny Joint incorporates our standard width CE-91101CB 4130 chromoly weld-on outer barrel and a CE-91102 pivot ball that features a 2.625 in. overall width and a .562 in. thru-bolt hole.
Greasing is handled externally via the included zerk fitting that installs into the threaded hole in the joint outer barrel.



Rod End Fits:

  • Universal Application
  • JL Wrangler (2-door) – R lower control arms (either end)
  • JL Wrangler Unlimited (4-door) – R lower control arms (either end)
  • JK Wrangler (2-door) – F and R lower control arms (either end)
  • JK Wrangler Unlimited (4-door) – F and R lower control arms (either end)
  • TJ Wrangler – F and R lower control arms (either end)
  • TJ Wrangler Unlimited (LJ) – F and R lower control arms (either end)
  • XJ Cherokee – F lower control arms (either end)
  • MJ Comanche – F lower control arms (either end)
  • ZJ Grand Cherokee – F lower control arms (either end)


Rod End Includes:

  • (1) Weld-On Chromoly Johnny Joint Assembly


Rod End Features:

  • 32 degrees of articulation capability
  • Weldable 4130 chromoly steel construction
  • 2 1/2 in. O.D. x 2 in. wide barrel dimensions
  • 2-piece bushing internals
  • 2.625 in. wide x .562 in. thru-hole pivot ball
  • 1/4 in.-28 zerk fitting for greasing
  • Ships disassembled, ready for welding

Notes:

  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint tool for this rod end: CE-9110T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
