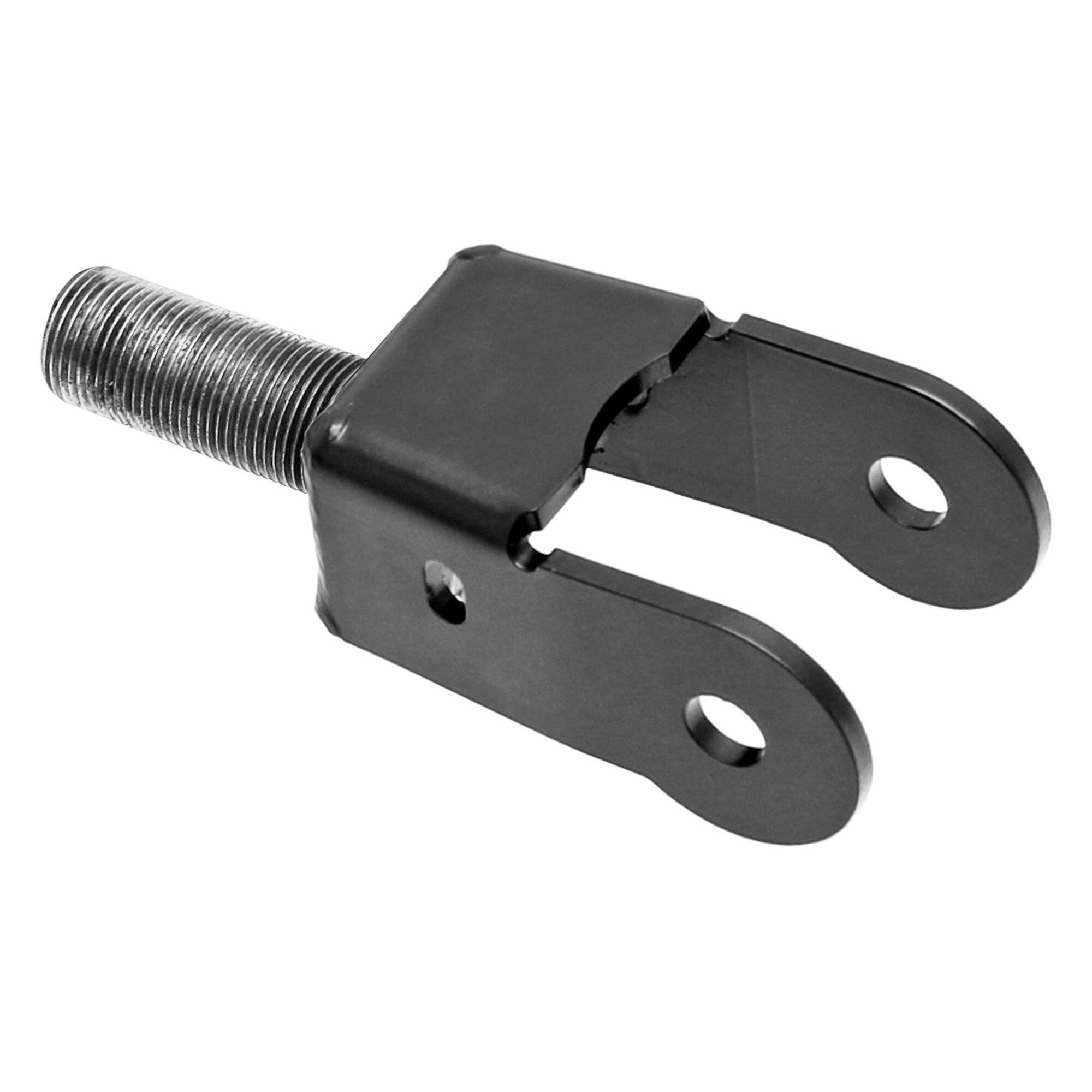

CE-9102JL-BRKT - Fork Bracket for JL/JT/JK Front Upper Control Arms

SKU CE-9102JL-BRKT
$76.00

In Stock

Current Stock: 187

Details

RockJock’s Fork Bracket is an included component in our JL, JT and JK front upper control arms at the location where the control arms attach to the front axle housing Johnny Joints or bushings.
The inside dimension of the fork is designed to fit a bushing or Johnny Joint that is 2 in. wide with a 1/2 in. thru bolt (stock JL/JT/JK).
Fork is laser cut and formed 3/16 in. steel with a 1 in.-14 RH threaded fitment welded in. Finish is semi-gloss black powder coat.


Kit Fits:

  • Universal Application
  • Included in JL/JT front upper control arm sets
  • Included in JK front upper control arm sets

Kit Includes:

  • (1) Front Upper Control Arm Fork Bracket

Component Specs.:

  • Material = laser cut and formed 3/16 in. steel, steel threaded weldment
  • Inside of Fork Dimension = 2.000 in. x 1/2 in. thru-bolt
  • Wire Loom Clip Hole = 2 (one on each side)
  • Overall Length = 6.500 in. (tip to tip)
  • CL of Hole to End of Threads Length = 5.560 in.
  • Thread Length = 2.560 in.
  • Threads = 1 in.-14 RH
  • Finish = semi-gloss black powder coat (threads masked)

Notes:

  • This Fork is an included component in all of our steel or aluminum JL, JT and JK Front Upper Control Arm Sets.
  • Fork is intended to bolt onto the 2 in. wide x 1/2 in. thru-hole bushings found on JL, JT and JK front axle housings, as well as the Johnny Joint replacements for the these bushings.

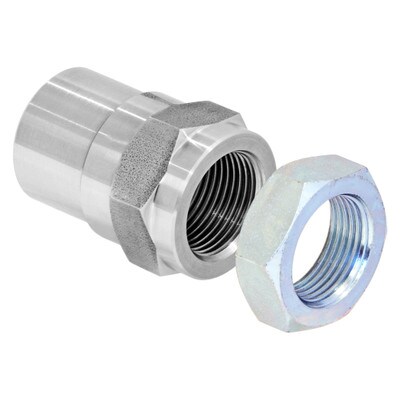

  • See CE-9113JN for the applicable Jam Nut for this Fork.
