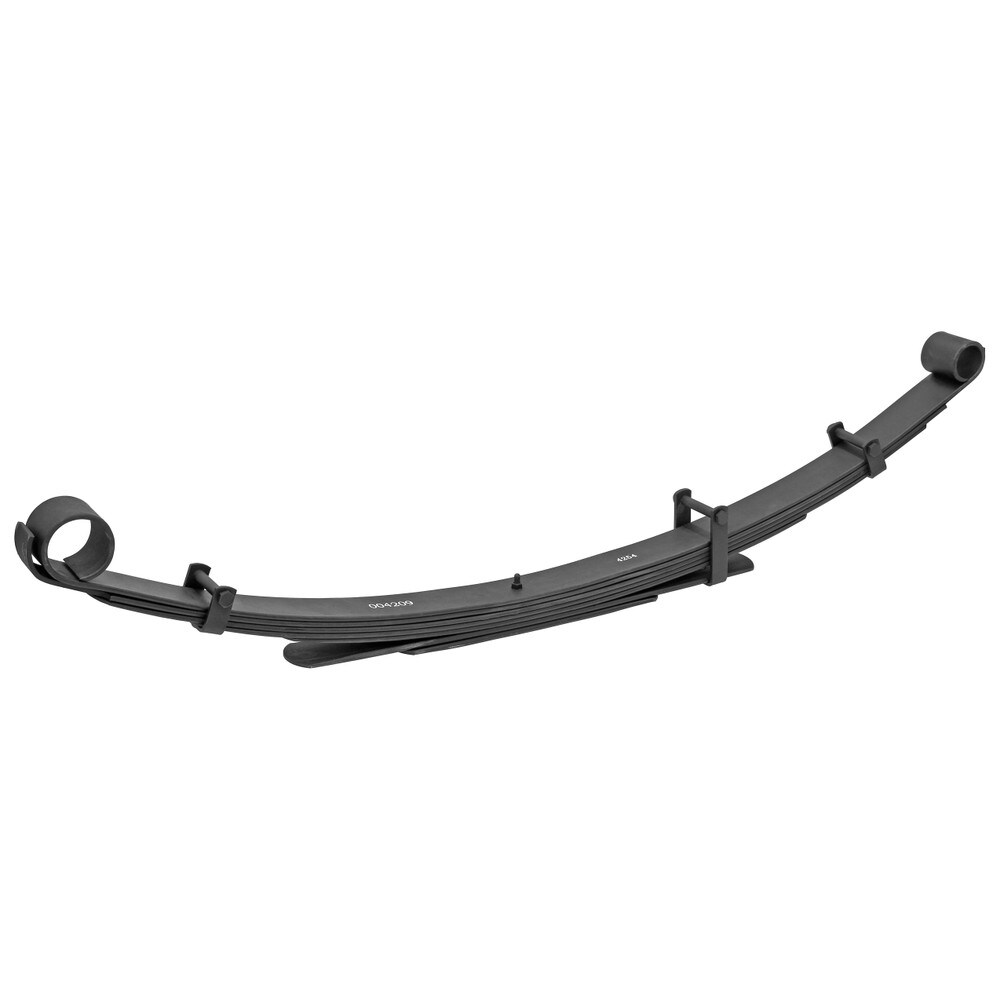

CE-9095XJ - XJ Lifted Rear Leaf Spring

RockJock's XJ Rear Leaf Spring have been tested and found to provide the best on-road ride and the most off-road flex, all in one spring!
The 3 1/2 inches of lift that this spring provides allows your XJ to easily clear a 32 in. tall tire, or, with the additional 1/2 in. of lift provided by our JS-9081 shackles and a little trimming, you can clear a 33 in. tire!

Kit Fits:

• XJ Cherokee – All Models

Kit Includes:

• (1)  Rear Leaf Spring

Lift Amount Specs.:
(Exact lift amount specs. will vary depending upon vehicle load)

• 3 1/2 in. lift

Components Specs.:

• Rate  =  190 lbs.
• Unloaded C-C Length  =  49 in.
• Width; =  2 1/2 in.
• Leaf Count  =  7
• Pack Height (at center bolt)  =  1 7/8 in.
• Spring Eye ID (at front end of spring)  =  2 1/2 in.
• Spring Eye ID (at rear end of spring)  =  1 3/4 in.
• Spring Clamps  =  3 (one front, two rear)
• Finish  =  flat black paint
• Sold  =  each

Notes:

• Use only with RockJock's CE-9095XJ-B XJ Rear Leaf Spring Bushing Kit.

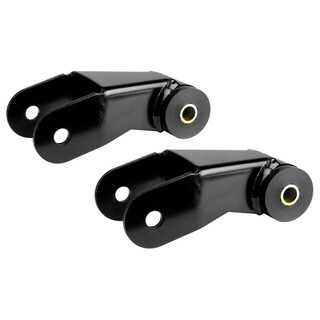

• For added performance, see RockJock's JS-9081 Boomerang Shackles.
• Actual lift amount will vary due to factory variances from vehicle to vehicle as well as the amount of weight added onto the vehicle following the installation of aftermarket equipment. Additionally, all provided lift specs. take into account that the vehicle retains the factory installed engine.
• As a general rule, purchasing the same stated amount of lift front springs to match the lift amount of these rear springs will provide a level finished vehicle. However, again, vehicle load - or lack there of - will directly affect vehicle height, hence we have various front springs to accommodate different vehicle load applications.
  See all of the front spring options under the XJ spring section of our website here.
• If you need help choosing the correct springs for your Jeep - just call the RockJock sales staff!

Used With:

• XJ Rear Leaf Spring Bushing Kit:   CE-9095XJ-B
