CE-9031XJ - XJ Heavy Duty U-Bolt Plate and Bump Stop Kit

Details

Details

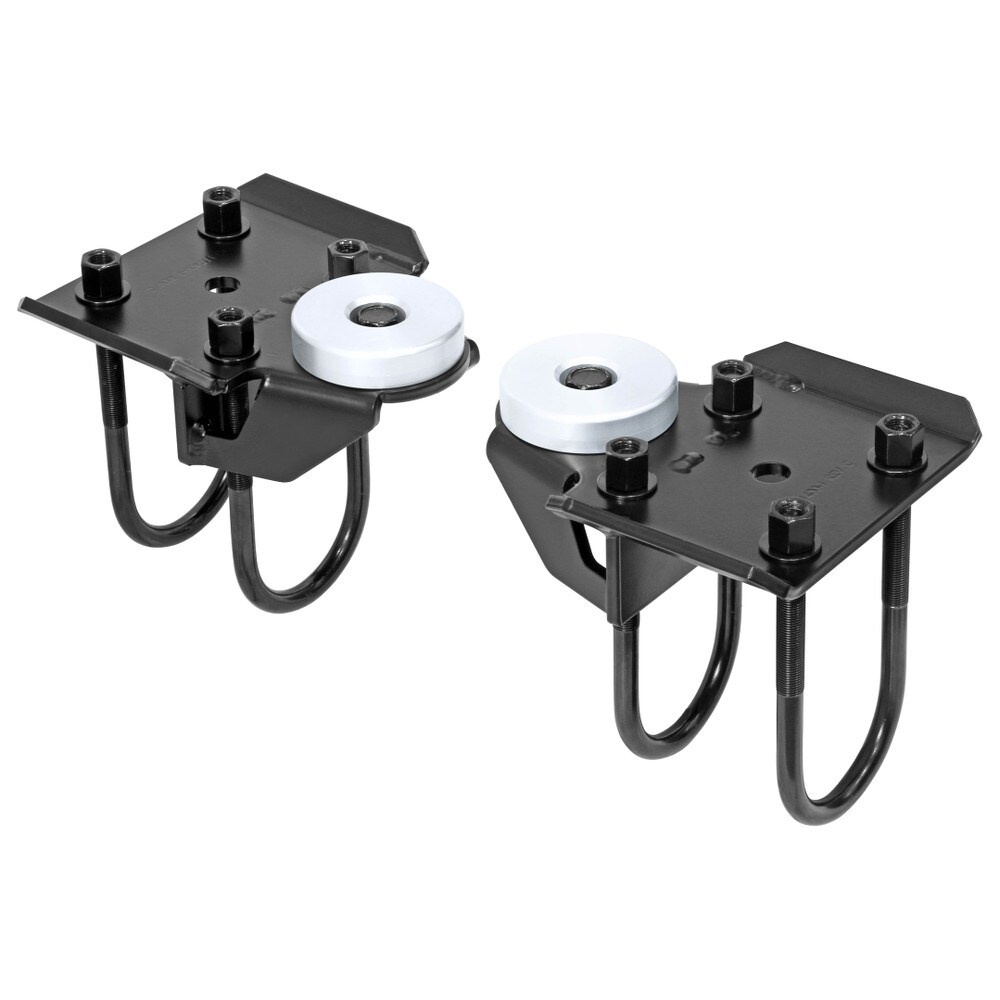

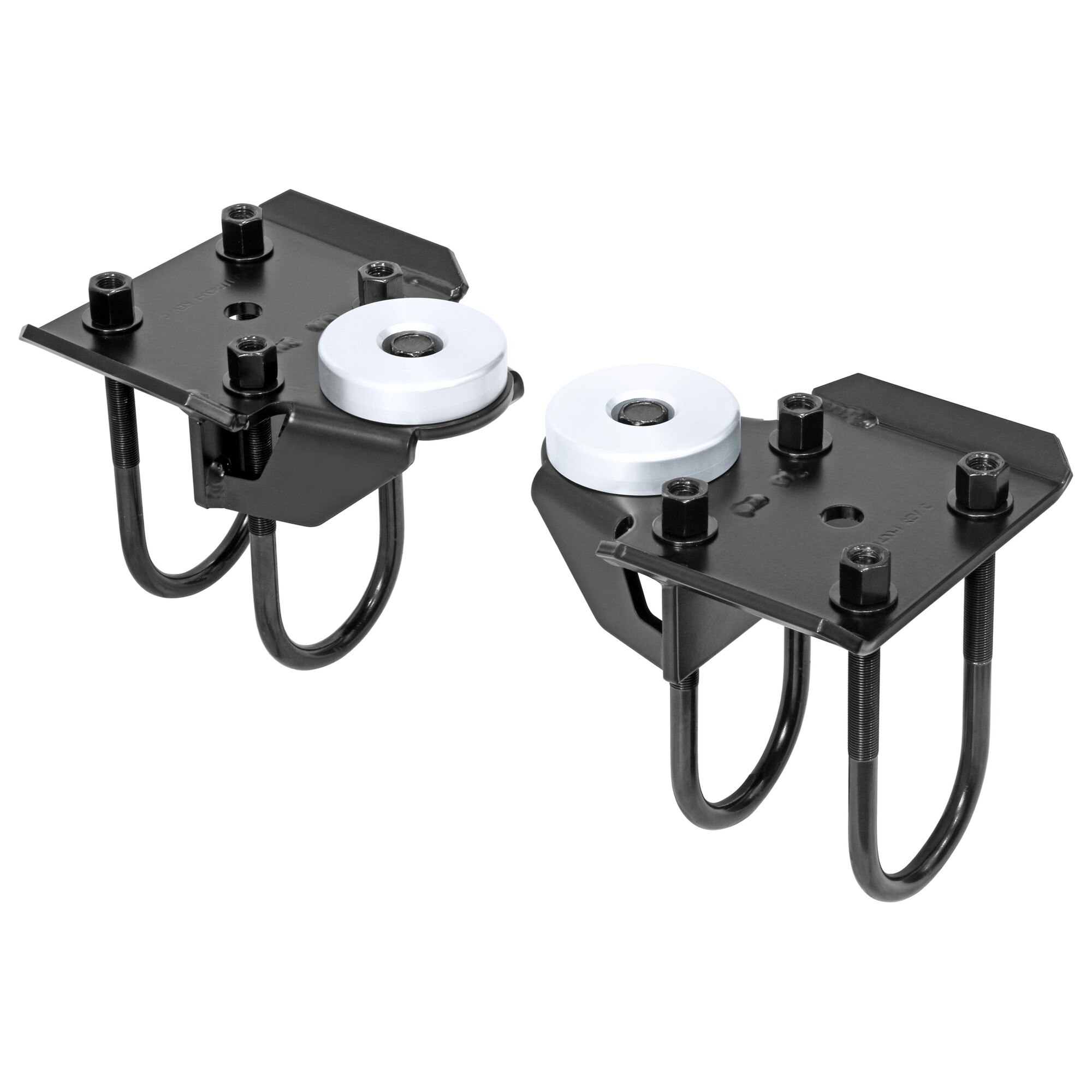

RockJock’s XJ U-Bolt Plate and Bump Stop Kit for off-roaders and racers alike provides extremely heavy duty 1/4 in. thick u-bolt plates with incorporated bump stop pads. Kits include one 3/4 in. tall bump stop puck for use with the balance of the components in our suspension system, but additional bump stop pucks can be purchased and stacked to suit your bump stop spacing needs! This kit also includes a set of high quality 1/2 in.-20 u-bolts for use with 3 in. axle tube rear axle housings, however, the slotted u-bolt holes in the plates allow them to be used with 2 3/4 in. axle tubes (stock) or up to 3 1/4 in. axle tubes!


Kit Fits:

  • XJ Cherokee – All Models

Kit Includes:

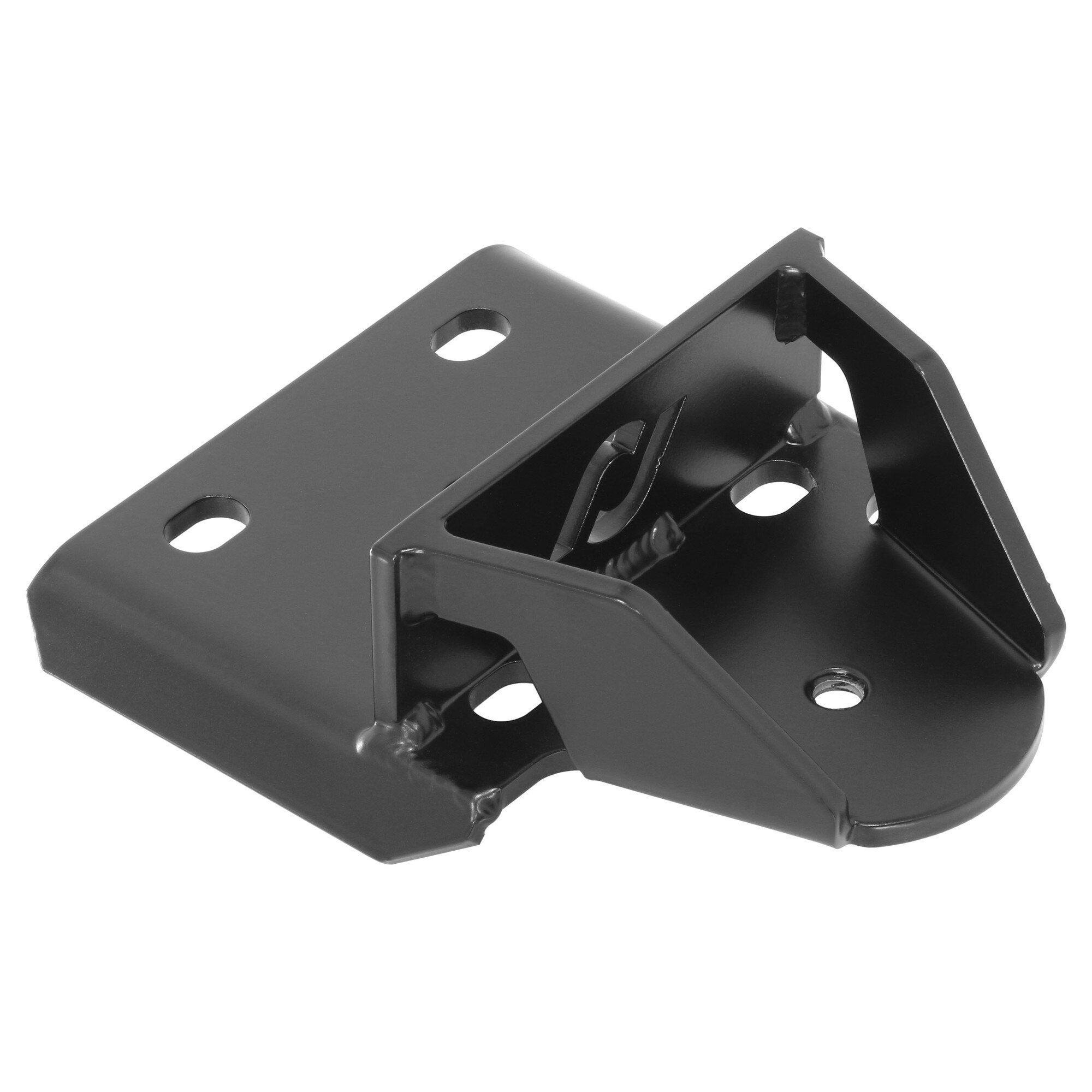

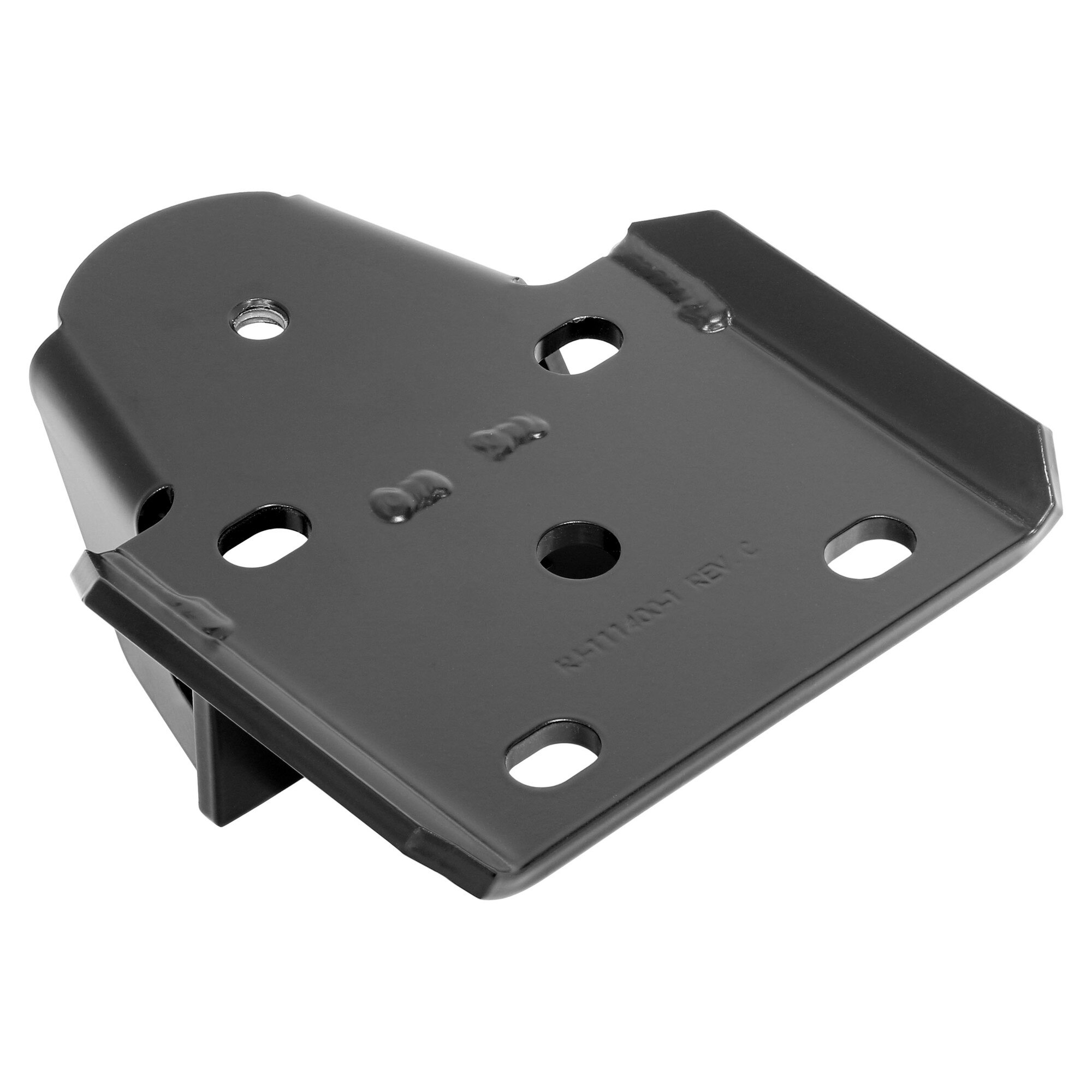

  • (2)  U-bolt plate

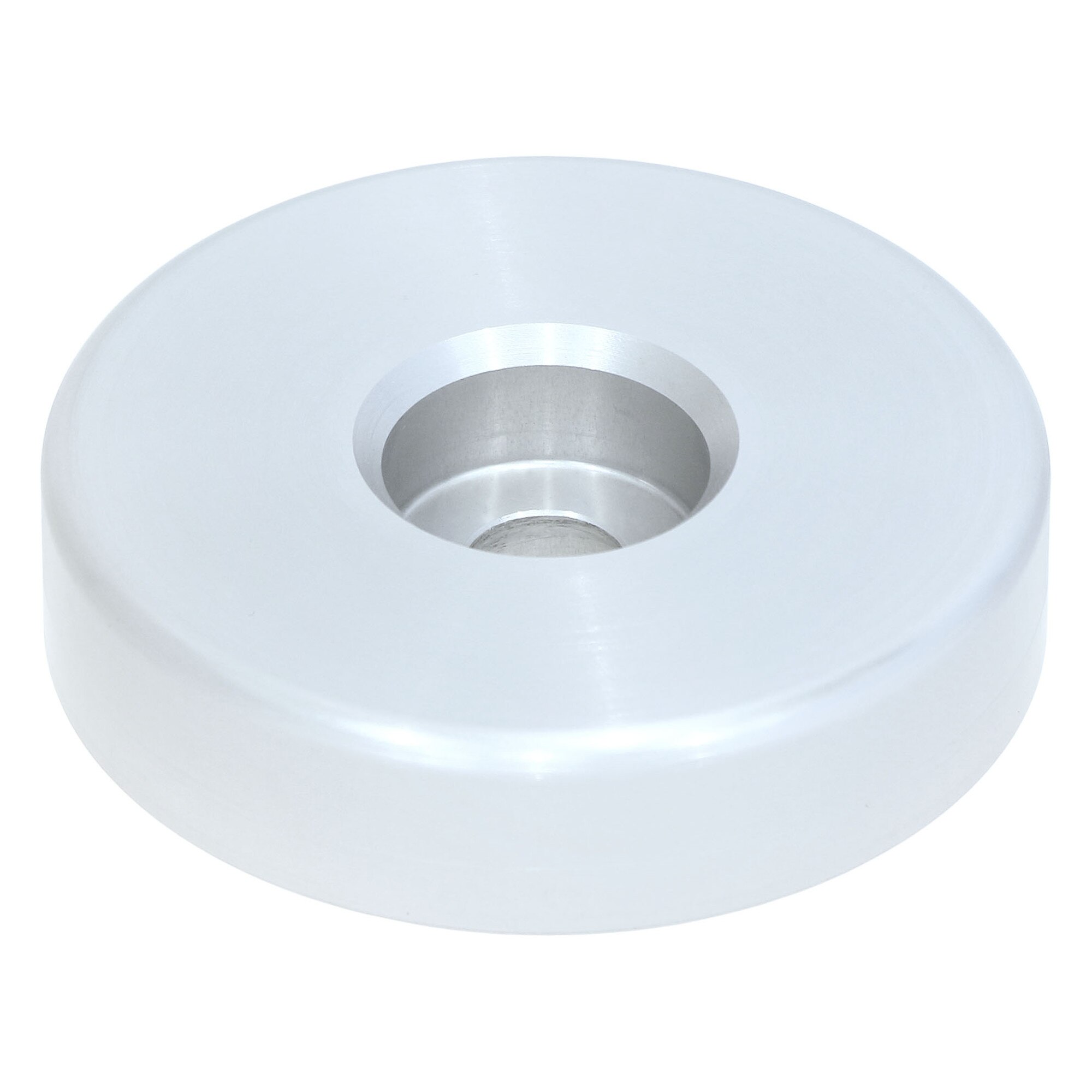

  • (2)  3/4 in. tall bump stop spacer puck

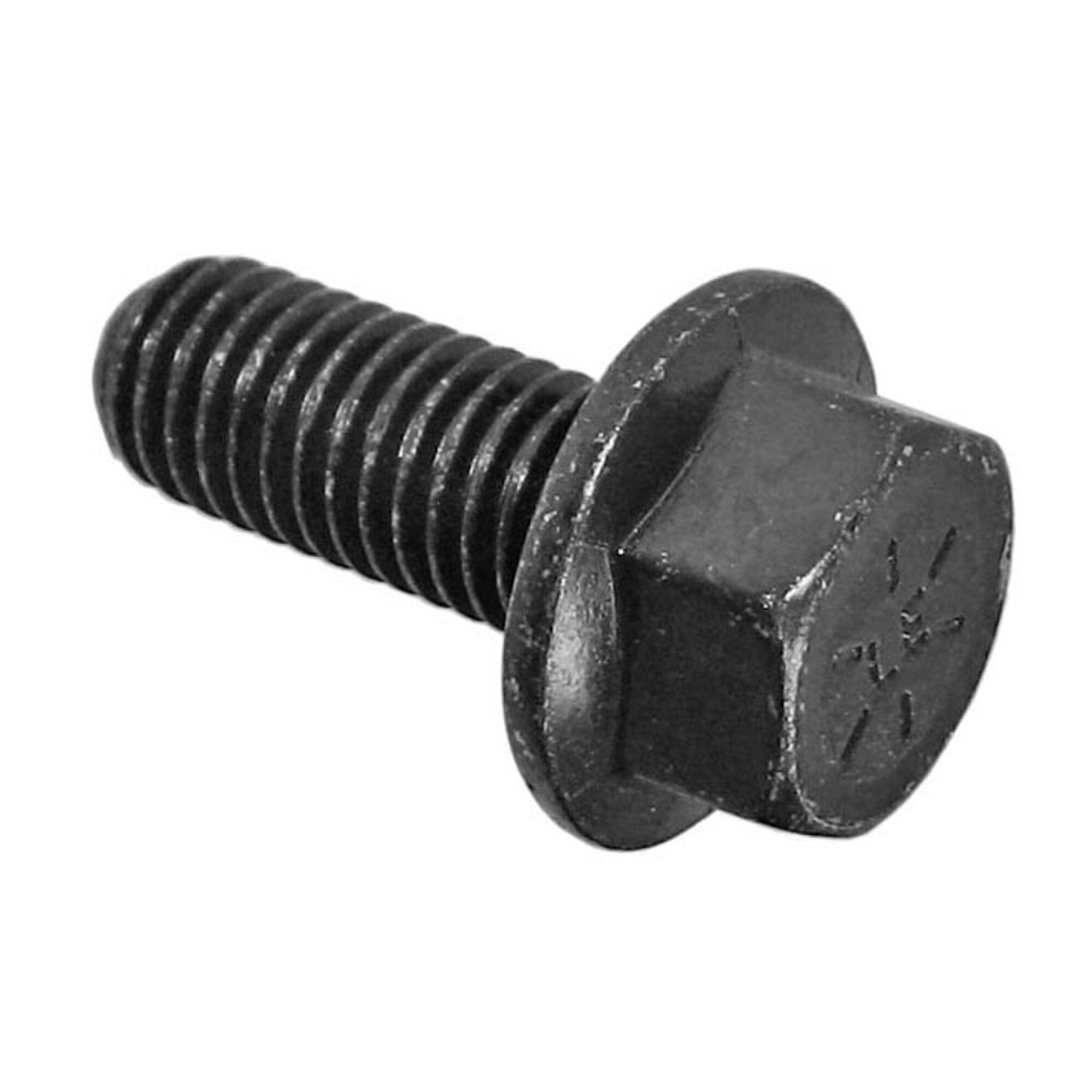

  • (2)  1/2 in.-13 flanged hex head bolt

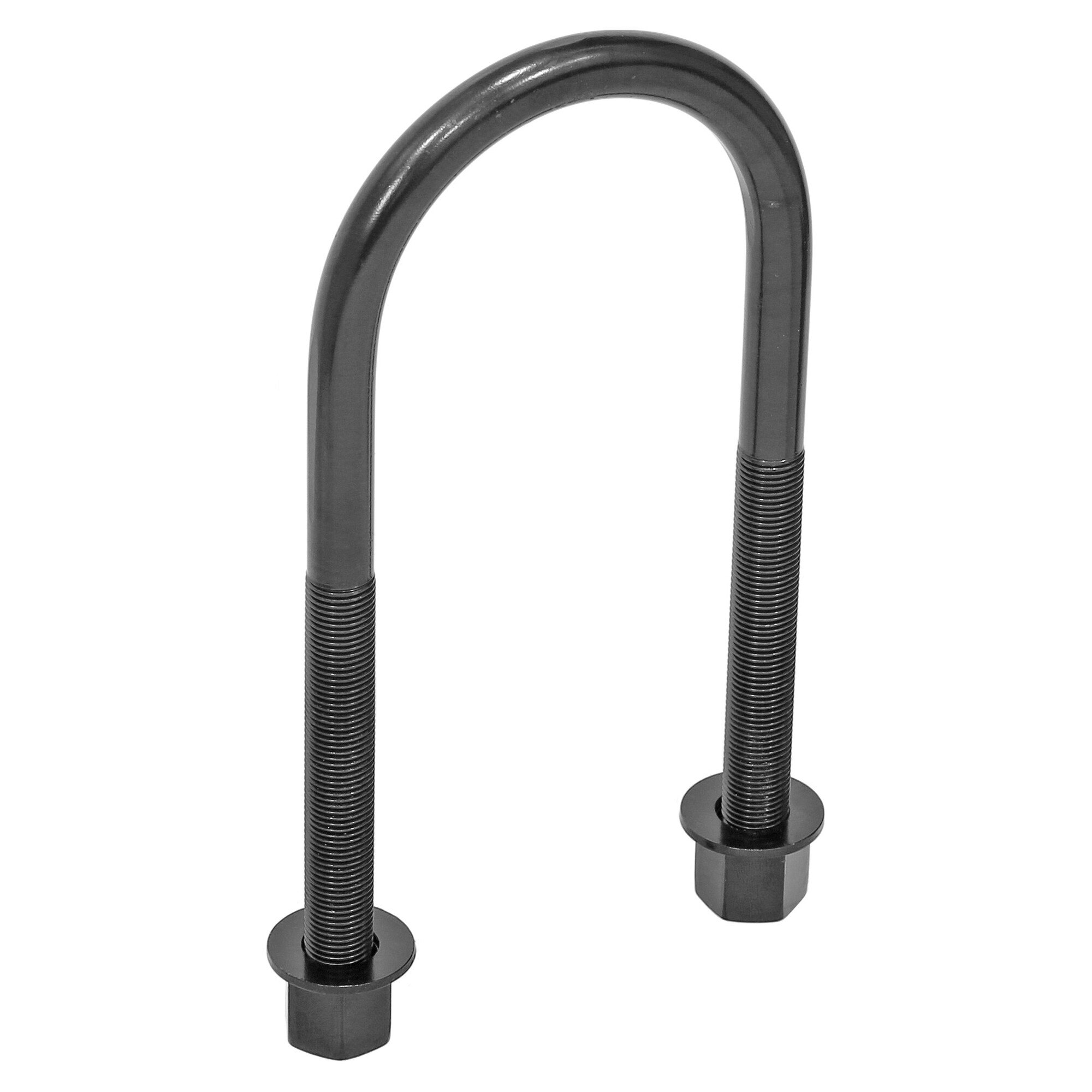

  • (4)  1/2 in. x 6 3/4 in. deep u-bolt w/ hardware

Kit Features:

  • Heavy duty construction for off-roading or racing use

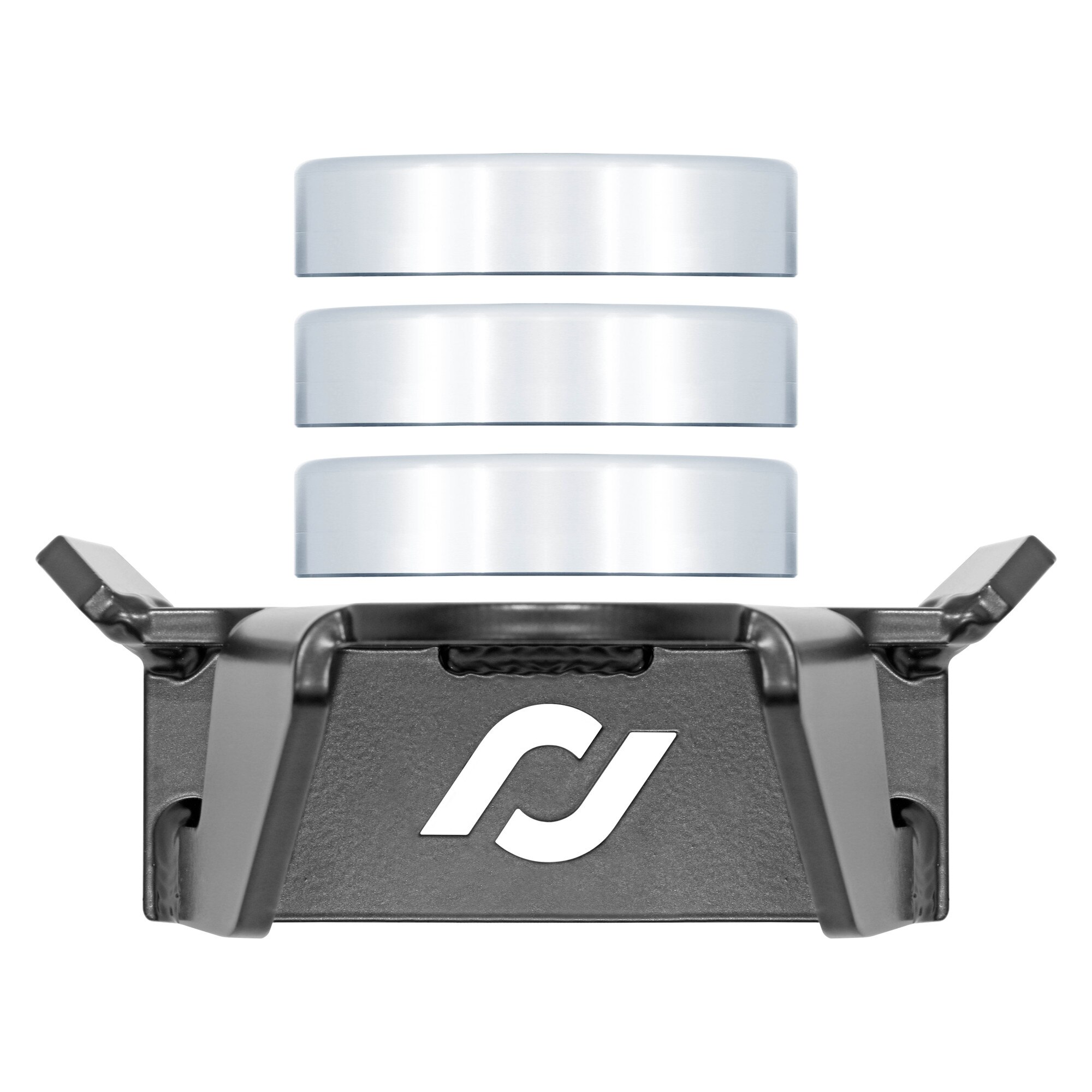

  • Incorporated bump stop mount with ability to stack bump stop pucks to suit individual build's needs
  • Slotted holes allow use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes

Kit Specs.:

  • Plate Construction  =  Laser cut, formed and welded 1/4 in. thick steel
  • U-Bolt Holes  =  1/2 in., slotted (allows use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes)
  • U-Bolt Spacing  =  for 2 1/2 in. wide leaf springs
  • Overall Plate Length  =  7.16 in. tip to tip
  • Overall Plate Width (including bump stop pad)  =  8.062 in.
  • Overall Plate Width (not including bump stop pad)  =  4.9375 in.
  • Overall Plate Height (to flat surface, not including folded ends)  =  2.250 in.
  • Overall Plate Height (to flat surface, including folded ends)  =  2.750 in.
  • Center Indexing Pin Hole  =  .675 in.
  • Bump Stop Provision  =  incorporated and gussetted
  • Bump Stop Puck Mounting Hole  =  threaded 1/2 in.-13
  • Bump Stop Puck  =  3/4 in. tall x 3 1/4 in. OD, billet aluminum w/ counter sunk bolt hole
  • Bump Stop Puck Bolts  =  1/2 in.-13 x 1 in. flanged head
  • U-Bolt  =  1/2 in.-20 x 6 3/4 in. deep (tip of threads to inside of U)
  • U-Bolt Hardware  =  hardened 1/2 in. flat washers and tall style 1/2 in.-20 nuts
  • Plate Finish  =  semi-gloss black powder coat
  • Bump Stop Puck Finish  =  clear anodize
  • U-Bolts and Bump Stop Bolt Finish  =  black zinc coated

Notes:

  • For use with 2 1/2 in. wide leaf springs in a spring-over application only!
  • For use with 2 3/4 in. – 3 1/4 in. OD axle tubes only!
  • For use with 1/2 in. thread u-bolts only!
  • Additional bump stop pucks can be purchased and stacked to the needs of the build but the builder will have to supply their own, longer hardware.
