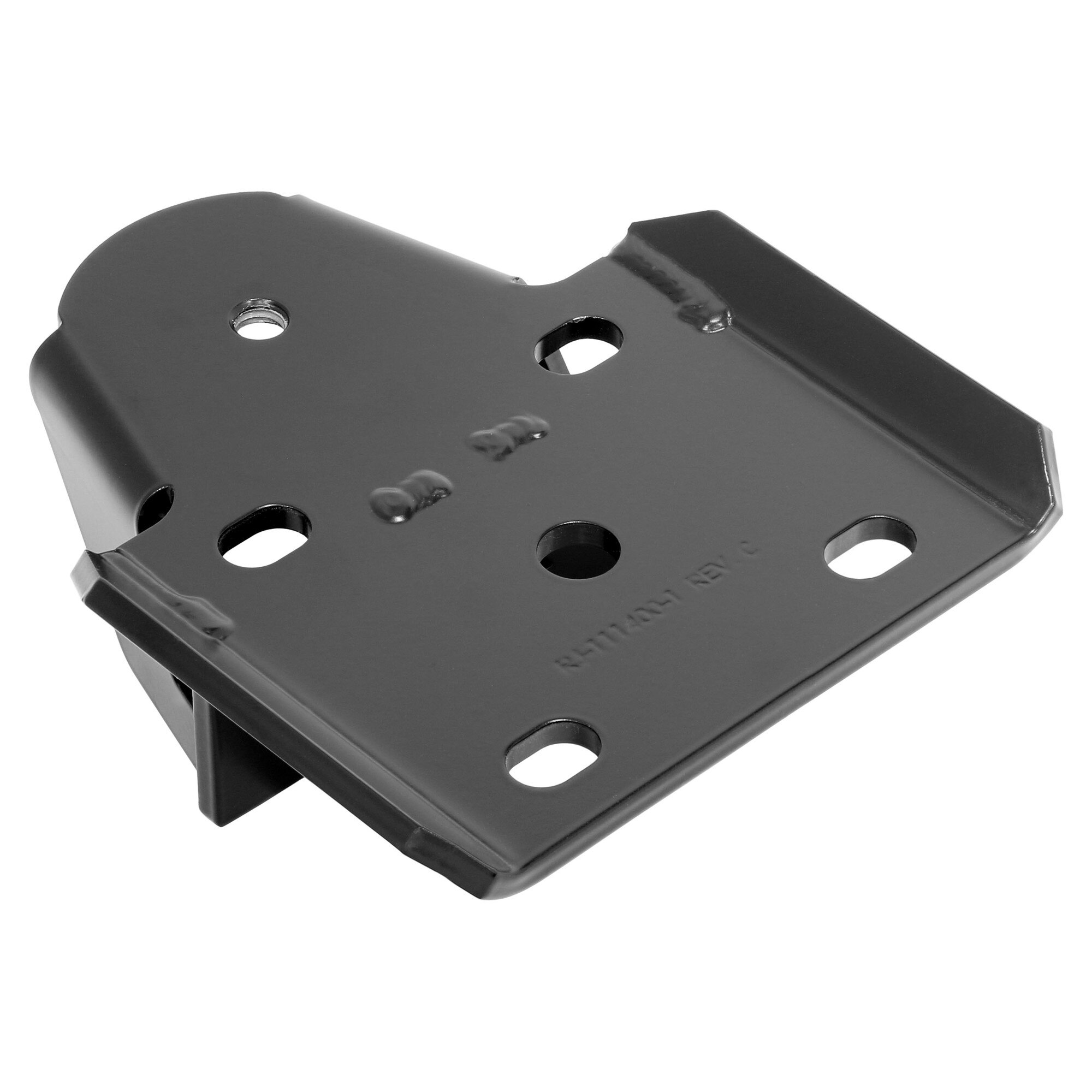

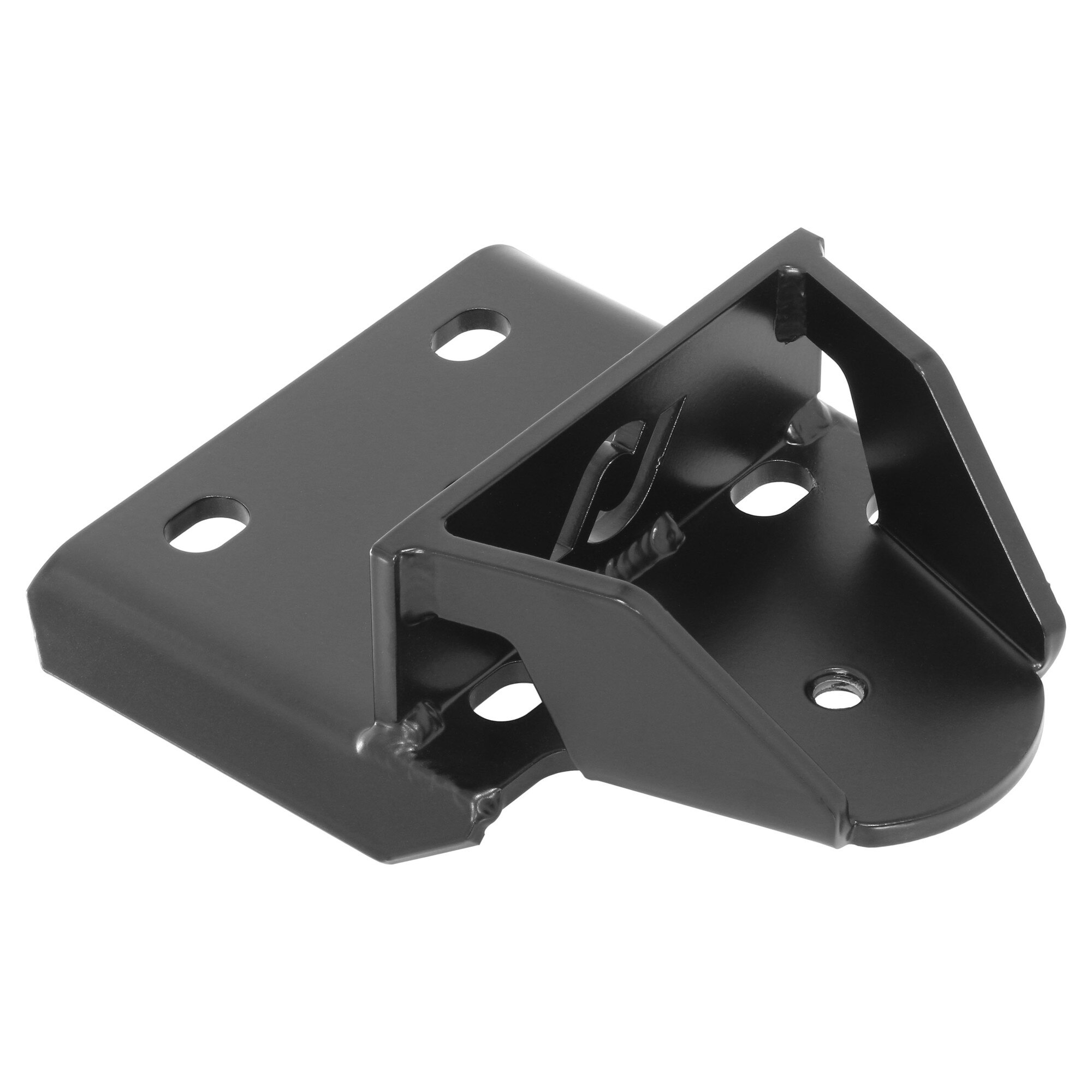

RockJock’s XJ U-Bolt Plate and Bump Stop Mount for off-roaders and racers alike provides an extremely heavy duty 1/4 in. thick u-bolt plate with incorporated bump stop pad.
Designed for use with the rest of the components in our CE-9031XJ U-Bolt Plate Kit, these plates allow you to bolt one or more (via stacking) of our RJ-110000-1 3/4 in. tall bump stop pucks to suit your bump stop spacing needs!
These plates are applicable to axle tube diameters from 2 3/4 in. (stock), up to 3 1/4 in. We offer 1/2 in.-20 x 3 in. tube u-bolts under our part number CE-9019.

Kit Fits:

• 84-01 XJ Cherokee – All Models

Kit Includes:

• (1)  U-bolt plate

Kit Features:

• Heavy duty construction for off-roading or racing use
• Incorporated bump stop mount with ability to stack bump stop pucks to suit individual needs
• Slotted holes allow use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes

Kit Specs.:

• Plate Construction  =  Laser cut, formed and welded 1/4 in. thick steel
• U-Bolt Holes  =  1/2 in., slotted (allows use with 2 3/4 in., 3 in. or 3 1/4 in. axle tubes)
• U-Bolt Spacing  =  for 2 1/2 in. wide leaf springs
• Overall Plate Length  =  7.16 in. tip to tip
• Overall Plate Width (including bump stop pad)  =  8.062 in.
• Overall Plate Width (not including bump stop pad)  =  4.9375 in.
• Overall Plate Height (to flat surface, not including folded ends)  =  2.250 in.
• Overall Plate Height (to flat surface, including folded ends)  =  2.750 in.
• Center Indexing Pin Hole  =  .675 in.
• Bump Stop Provision  =  incorporated and gussetted
• Bump Stop Puck Mounting Hole  =  threaded 1/2 in.-13
• Plate Finish  =  semi-gloss black powder coat

Notes:

• For use with 2 1/2 in. wide leaf springs in a spring-over application only!
• For use with 2 3/4 in. – 3 1/4 in. OD axle tubes only!
• For use with 1/2 in. thread u-bolts only!

Used With:

• Bump Stop Spacer:  RJ-110000-1
• 1/2 in.-13 x 1 in. Flanged Head Bolt:  CE-H0010
• U-Bolt (w/ hardware):  CE-9019
