• CE-9077 - CJ Main Eye Bushing Set

CE-9077 - CJ Main Eye Bushing Set

Details

Details

For 1976-1986 CJ's with the RockJock CE-9067 main eye bushing kit. Improve suspension performance on and off the road by replacing worn or damaged urethane bushings on RockJock main eye bushing kits with the same high quality Energy Suspension in. Tough 88 in. urethane bushings that the kit came with new. These bushings have fluted inner cores to retain grease for smooth operation and longer life, and they resist rotting, cracking and damage from the weather. Each kit rebuilds one set of main eye bushings.

To improve suspension performance on and off the road, you may need to replace worn main eye bushings in RockJock urethane main eye bushing kit equipped 1976-1986 CJs.
This bushing kit features the exact same high-quality Energy Suspension urethane bushings that came in the bushing kit new!
Bushings have fluted inner cores to retain grease for smooth operation and longer life.
This bushing kit includes 8 bushing halves - enough to rebuild all 4 main eye bushings.


Kit Fits:

  • CJ-5 (w/ RockJock main eye bushing kit)
  • CJ-7 (w/ RockJock main eye bushing kit)
  • CJ-8 (w/ RockJock main eye bushing kit)

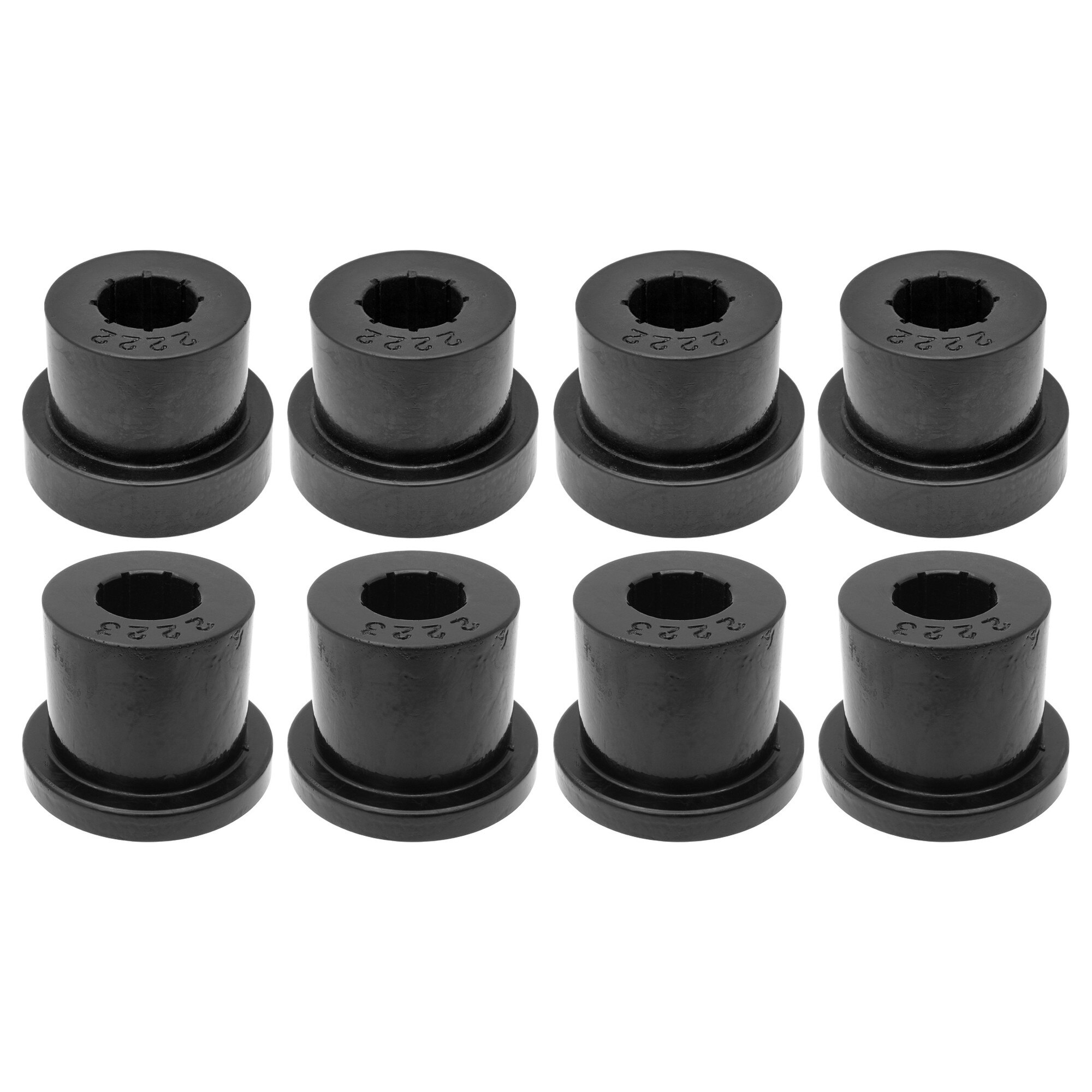

Kit Includes:

  • (4)  Urethane bushing half (front)
  • (4)  Urethane bushing half (rear)

Component Specs.:

  • Front Bushing Height (not including flange)  =  .950 in.
  • Front Bushing O.D. (portion that inserts into the spring)  =  1.500 in.
  • Front Bushing Flange Thickness  =  .500 in.
  • Front Bushing Flange O.D.  =  2.000 in.
  • Front Bushing Thru-Hole I.D.  =  .750 in. (to accept steel inner sleeve)
  • Rear Bushing Height (not including flange)  =  1.250 in.
  • Rear Bushing O.D. (portion that inserts into the spring)  =  1.500 in.
  • Rear Bushing Flange Thickness  =  .250 in.
  • Rear Bushing Flange O.D.  =  2.000 in.
  • Rear Bushing Thru-Hole I.D.  =  .750 in. (to accept steel inner sleeve)

Note:

  • Intended for use as replacement parts for our YJ Main Eye Bushing Kit.
