• ES-2223 - Bushing Half (YJ Front or Rear Shackle w/ ProComp Springs, YJ Main Eye, CJ Rear Main Eye)

ES-2223 - Bushing Half (YJ Front or Rear Shackle w/ ProComp Springs, YJ Main Eye, CJ Rear Main Eye)

Details

Details

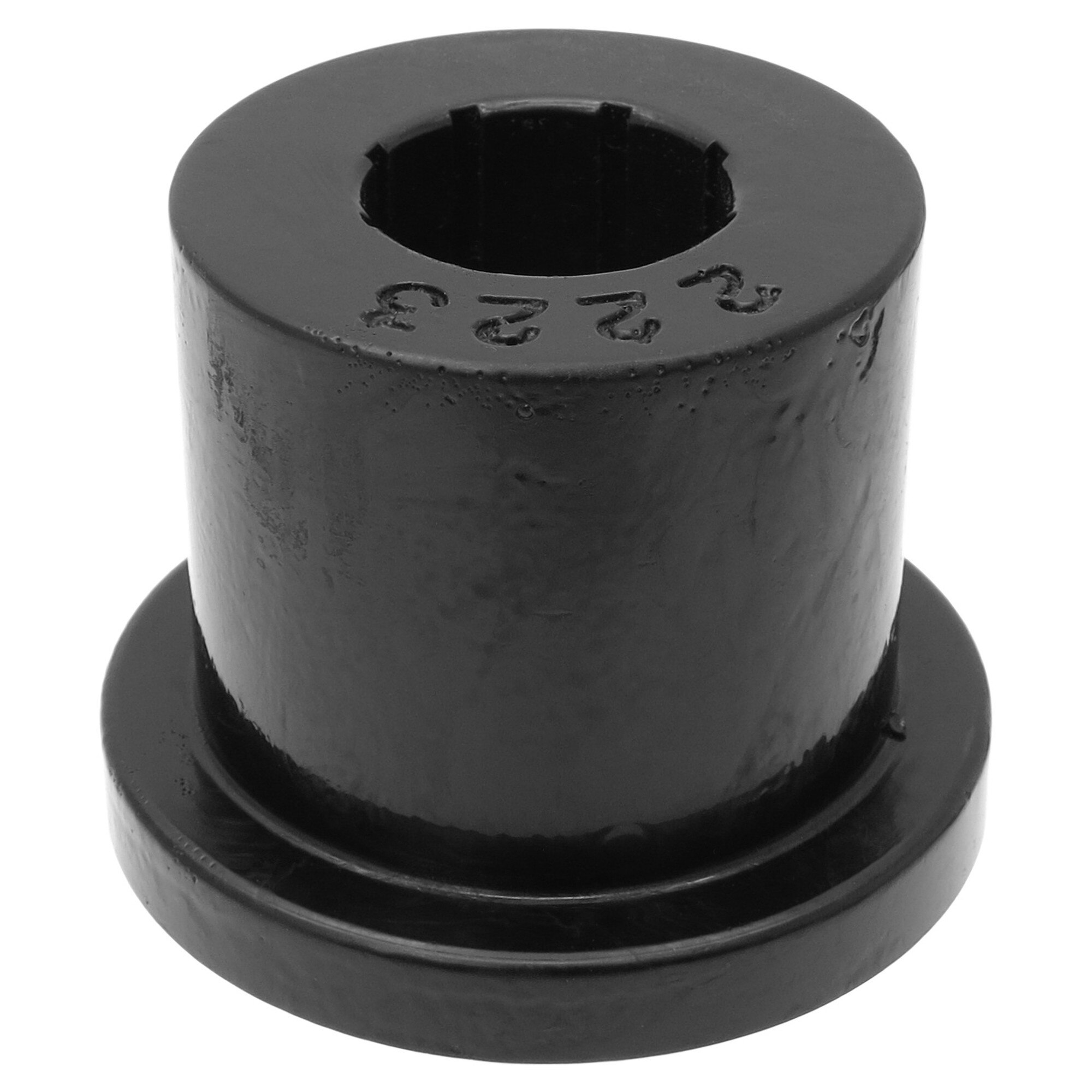

This RockJock Urethane Bushing Half is found in all of our front and rear that are intended to be used in conjunction with Pro-Comp, Black Diamond or Trail Master springs only, as well as the front spring main eye bushings for CJs found in our main eye bushing kit.
Bushings are made from Energy Suspension’s secret recipe of urethane for maximum durability. Fluted grooves in the internal bores of the bushings fill with grease when used in conjunction with our . The fluted, greasable design ensures smooth, quiet operation.


Kit Fits:

  • YJ Wrangler (w/ Pro-Comp, Black Diamond or Trail Master springs only)
  • CJ Rear Spring Main Eye (front end of rear spring)
  • Universal Application (2 1/2 in. wide springs w/ 1 1/2 in. I.D. spring eyes)

Kit Includes:

  • (1)  Urethane Shackle Bushing Half

Applicable Springs:

  • YJ Wrangler aftermarket leaf springs (Pro-Comp, Black Diamond or Trail Master only)
  • CJ rear spring main eyes (front ends of rear springs)
  • Any 2 1/2 in. wide leaf spring with a 1 1/2 in. spring eye bore

Components Specs.:

  • Bushing Surface Height (that inserts into the spring)  =  1.250 in.
  • Bushing Surface O.D. (that inserts into the spring)  =  1.500 in. tall
  • Bushing Flange Thickness  =  .250 in.
  • Bushing Flange O.D.  =  2.000 in.
  • Bushing Thru-Hole  =  .750 in.

Notes:

  • This bushing is intended to be a replacement for the bushing in any of our YJ Wrangler greasable shackles, when used with with Pro-Comp, Black Diamond or Trail Master springs only.
  • May be used as a replacement in any, universal application where the leaf spring is 2 1/2 in. wide and features a 1 1/2 in. I.D. spring eye.
