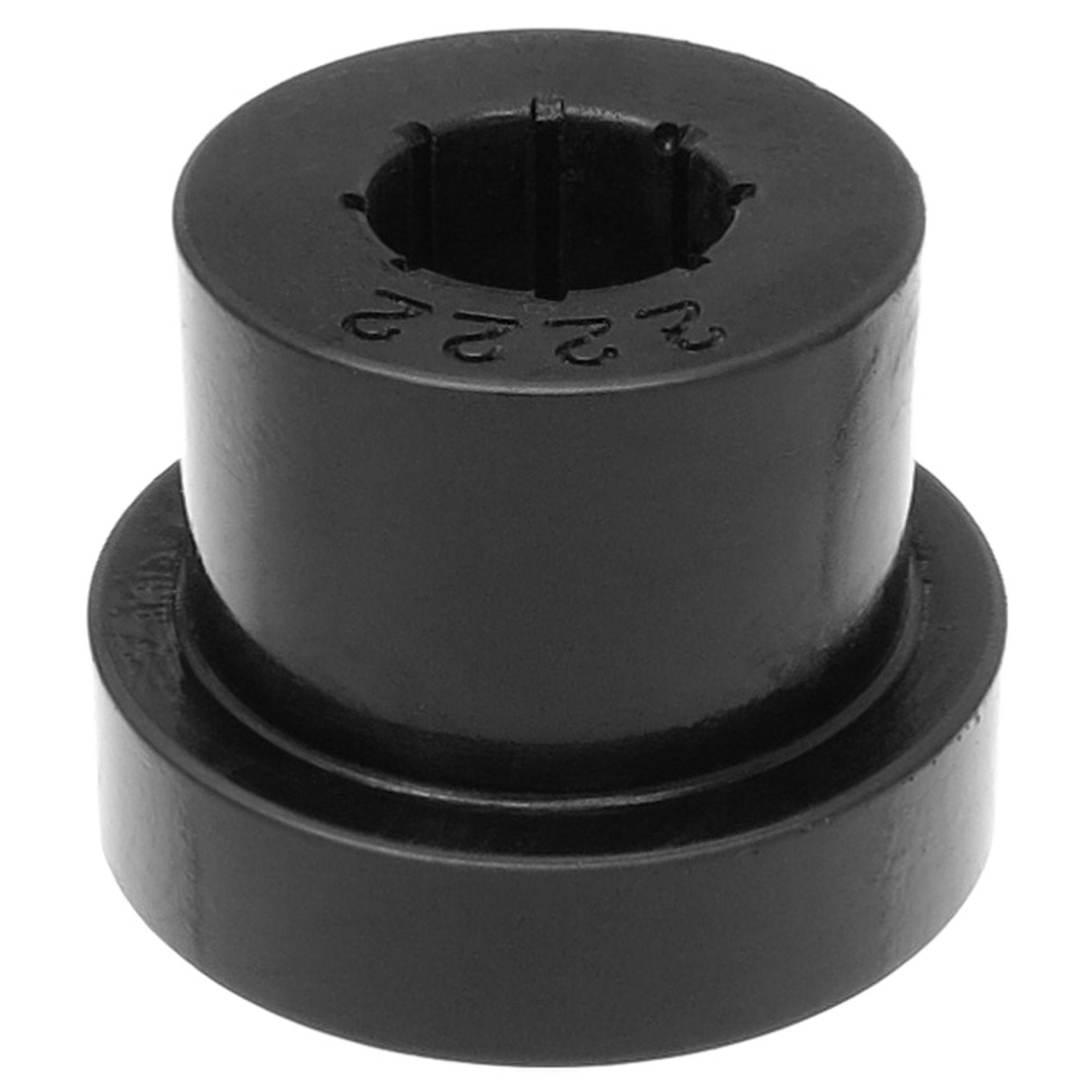

This RockJock Urethane Bushing Half is found in all of our front spring main eye bushings for CJs that are included in our CE-9067 main eye bushing kit.
Bushings are made from Energy Suspension’s secret recipe of urethane for maximum durability. Fluted grooves in the internal bores of the bushings fill with grease when used in conjunction with our greasable bolts. The fluted, greasable design ensures smooth, quiet operation.

Kit Fits:

• CJ Rear Spring Main Eye (front end of rear spring)
• Universal Application (2 1/2 in. wide springs w/ 1 1/2 in. I.D. spring eyes)

Kit Includes:

• (1)  Urethane Main Eye Bushing Half

Applicable Springs:

• CJ rear spring main eyes (front ends of rear springs)
• Any 2 1/2 in. wide leaf spring with a 1 1/2 in. spring eye bore

Components Specs.:

• Bushing Surface Height (that inserts into the spring)  =  .950 in.
• Bushing Surface O.D. (that inserts into the spring)  =  1.500 in. tall
• Bushing Flange Thickness  =  .500 in.
• Bushing Flange O.D.  =  2.000 in.
• Bushing Thru-Hole  =  .750 in.

Notes:

• May be used as a replacement in any, universal application where the leaf spring is 2 in. wide and features a 1 1/2 in. I.D. spring eye.
