32″ Bar Universal Antirock Kits

The 32″ Bar category features universal Antirock sway‑bar kits built around a 32-inch long torsion bar—ideal for custom rigs, rock-buggies, and off-road builds that don’t use stock sway‑bar locations. These kits give builders the flexibility to weld-in and fabricate mounting points while delivering high articulation, traction, and stability for solid-axle, lifted, or custom 4×4 vehicles.To ensure your custom installation follows the correct assembly procedures and technical specifications, please consult our Instruction Manuals .

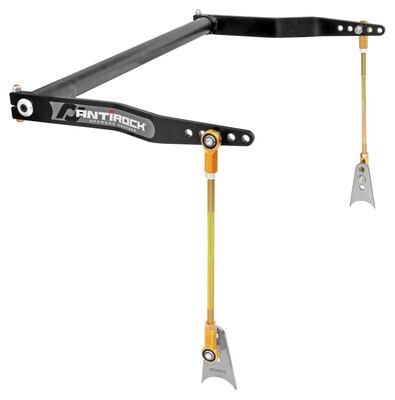

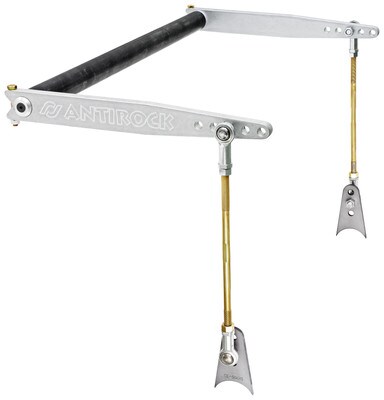

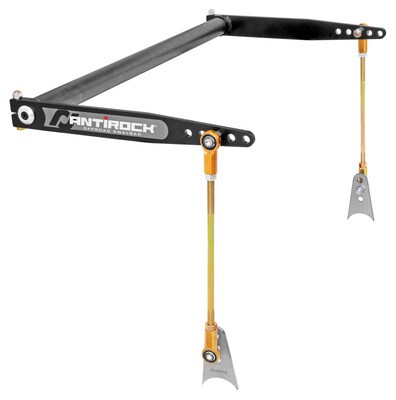

What’s Inside a 32″ Bar Kit

• 32″ Torsion Bar — 0.700 in. diameter, 4340 heat-treated chromoly, forming the core of the Antirock system for strength and durability.

• Mounting Tube — 1.75″ O.D. × 0.095″ wall DOM tube, cut to fit the torsion bar setup.

• Side Arms — Fabricated steel (17", 18", or 20") or optional aluminum and bent steel arms, connecting the torsion bar to the axle and chassis while optimizing strength.

• Adjustable Vertical End‑Links — Heim-joint rod-end style with long threaded rods, trim-able to fit custom suspension geometry, lift heights, or non-stock axle widths.

• Bushings & Hardware — UHMW bushings, weld-on axle/fabrication tabs, and full hardware packs to mount and install the kit properly.

Why Use a 32″ Antirock Kit

• Universal Fitment for Custom Builds — Works with tube-frame rigs, lifted suspensions, or non-OEM axle widths where bolt-on sway bars are not available or won’t fit.

• Improved Off-Road Articulation & Traction — Balances suspension flex between front and rear axles, keeping tires planted over rough terrain for better traction and smoother off-road performance.

• Strength & Durability — Made from 4340 chromoly steel, the same material used in professional off-road components, ensuring reliability under heavy loads and repeated articulation cycles.

• Fabricator / Builder Flexibility — Link length, arm length, and mounting geometry can be customized to match axle width, lift height, suspension travel, and vehicle weight.

Fitment & Use Cases

• Custom-built trucks, Jeeps, or 4×4 rigs with tube frames, lifted suspensions, or non-stock axle widths.

• Solid-axle off-road rigs needing improved articulation, traction, and suspension flex—especially for rock-crawling, trail runs, or rugged terrain.These universal kits and professional fabrication support can be found through authorized shops via our Dealer Locator.

• Builds where bolt-on sway bars do not fit due to lift, axle swaps, or frame modifications but still require sway-control and roll stability.

• Fabricators creating rigs from scratch—kit provides core components; builder supplies mounting geometry.

Important Considerations & Trade-offs

• Welding / Fabrication Required — 32″ Bar kits are not bolt-on and require welding the mounting tube and axle tabs to your frame and axle.

• On-Road Behavior — Vehicles may exhibit increased body roll during high-speed cornering or sharp turns due to greater off-road articulation compared to stock sway bars.

• Correct Geometry & Link-Length Tuning Needed — Improper arm length, link angles, or mounting positions can reduce performance, cause binding, or lead to premature wear.

• Balanced Performance — Separate front and rear kits may be required for symmetrical flex and consistent suspension behavior, depending on rig layout and axle configuration.

If you have questions about selecting the right torsion ar rate or arm length for your custom chassis, please Contact Us to speak with one of our experts.
