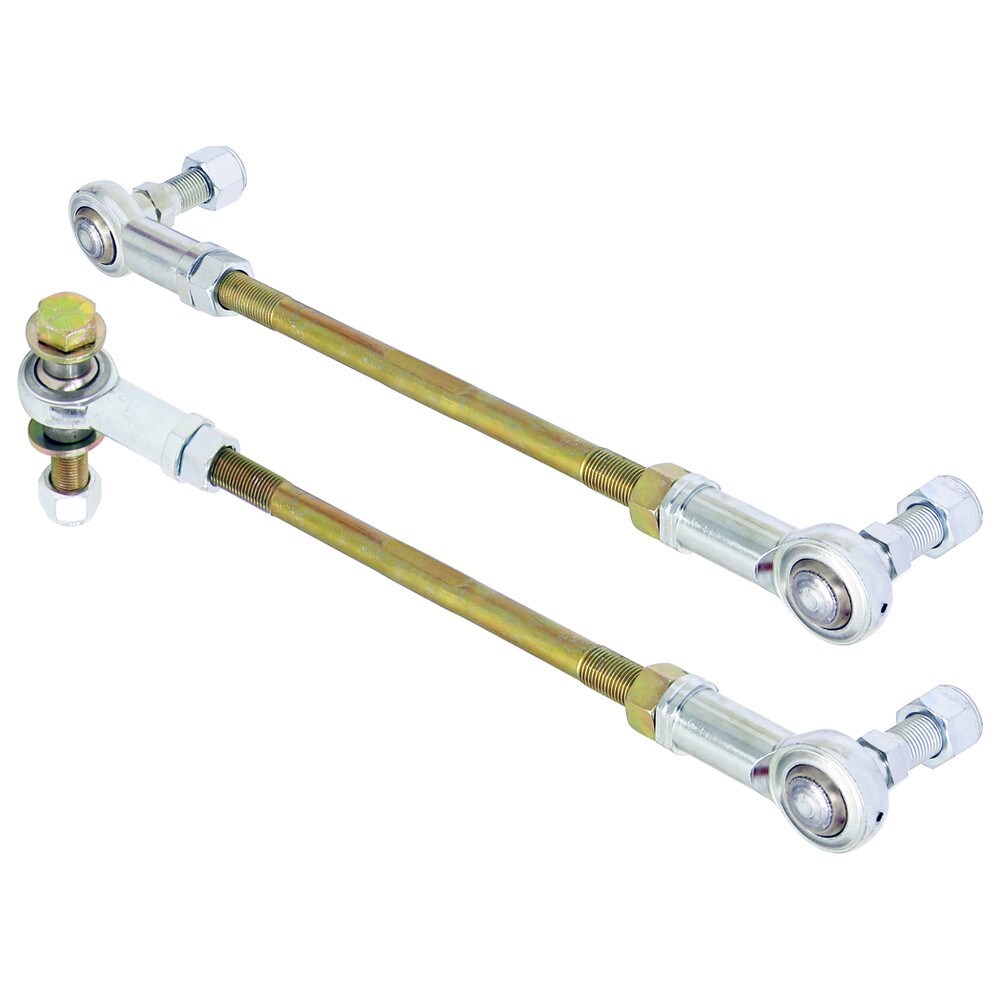

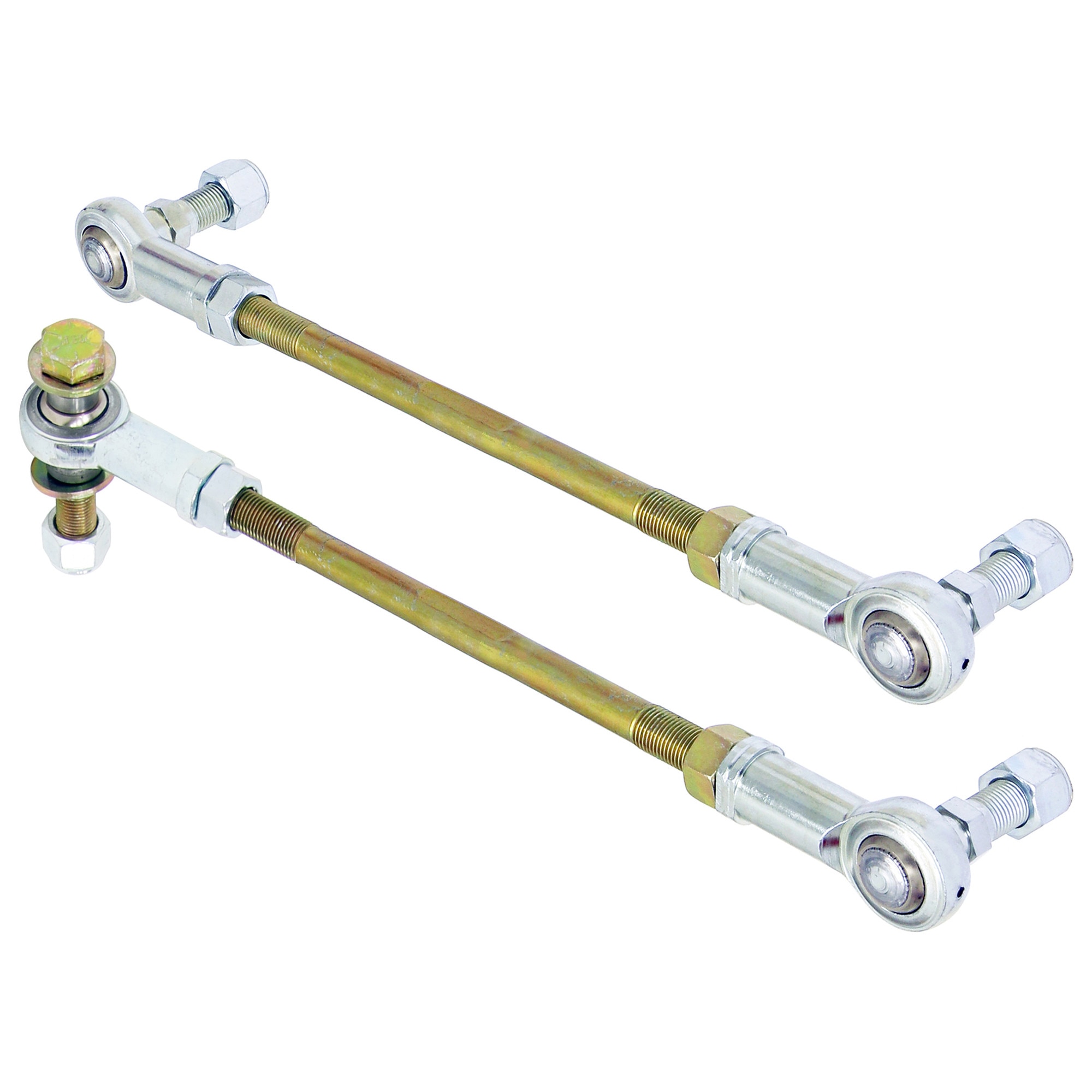

RJ-253101-101 - JL/JT Extended Front Sway Bar End Links w/ Heims (10 1/2 in. Rods)

SKU: RJ-253101-101
$199.00
Quantity discounts available
QuantityPrice

In Stock

Current Stock: 62

Details

Details

RockJock's Adjustable Sway Bar End Link Set for the front of JL Wrangler, JL Unlimited and JT Gladiator vehicles features 10 1/2 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
To accommodate the JL and JT application, this kit includes 3 heim joints that feature 1/2 in.-20 RH thread studs and and one thru-bolt heim joint, high-misalignment spacers and hardware for use at the passenger's side axle housing location. Nyloc nuts & jam nuts are included.


Kit Fits:

  • Universal Use
  • Included in JL and JT front Antirock Sway Bar Kits - All

Kit Includes:

  • (2) 10 1/2 in. Link Rods (gold)
  • (1) JL/JT Front Sway Bar End Link Hardware Pack

Adjustment Range:

  • Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the heims & jam nuts screwed on til they meet the smooth area of the rod), C-C is 10 3/8 in.
  • Extended – Uncut rods with heims installed safely adjust out to 13 3/4 in. C-C

Component Specs.:

  • Gold Rod Length = 10 1/2 in.
  • Gold Rod Diameter = 1/2 in.
  • Gold Rod LH Threads = 1/2 in.-20 x 2 5/8 in. Long
  • Gold Rod RH Threads = 1/2 in.-20 x 2 5/8 in. Long
  • Gold Rod Center Smooth Area = 5 1/4 in. Long
  • Gold Rod Wrench Flat = req. 11mm wrench
  • Heim Joints = req. 19mm wrench
  • Jam Nuts = req. 3/4 in. wrench

Notes:

  • These are the end links that we include in our JL/JT front Antirock Sway Bar Kits

Parts List:

  • 10 1/2 in. Link Rods (gold): CE-9901RD5
  • JL/JT Front Sway Bar End Link Hardware Pack: CE-99005JLF
