RJ-202012-101 - Antirock Sway Bar Billet 7075 Aluminum Arms (17 in.)

SKU RJ-202012-101
$500.00
Back

Details

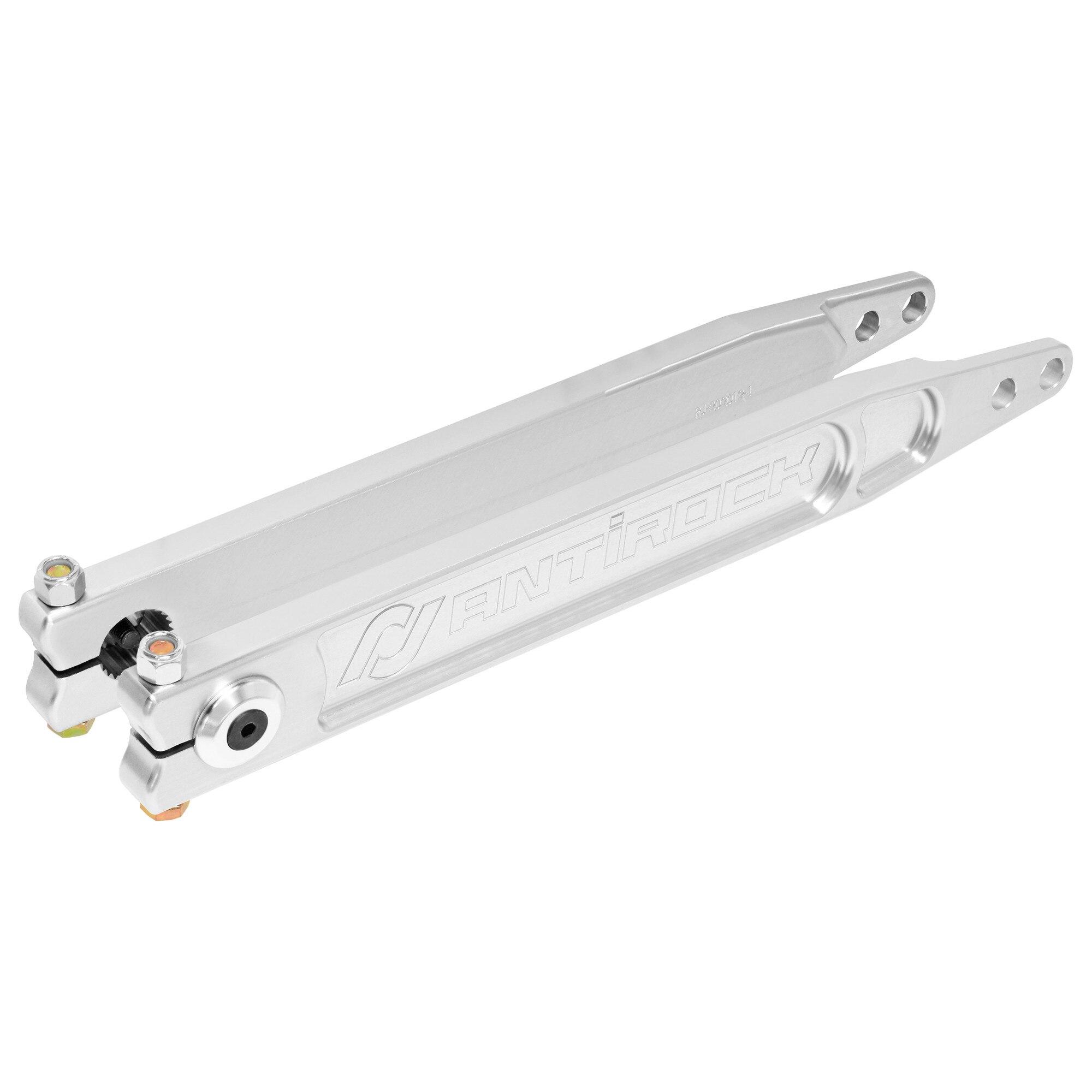

Billet Aluminum Antirock Sway Bar Arms are beautifully constructed, yet offer race quality strength for aggressive off road applications!
Made entirely in house on our own machines, we start with premium 7075T6 aluminum material, CNC machine the arms to shape, CNC machine the pocketed design and the logo etchings, broach the 25 splines and finish them off in clear anodizing!
These specific arms are 17 in. long from tip to tip, 3/4 in. thick (with the exception of the tip being machined to 3/8 in. thick for end link mounting). At the arm mounting end, you’ll find our standard 25 spline that fits all common Antirock torsion bars. Our billet aluminum finishing washers and flat head allen bolts that thread into the end of the sway bar torsion bar are also included, as well as the arm-to-torsion-bar pinch bolts and nuts.
At the end link mounting end, the arms trim down to 3/8 in. thick and you’ll find two 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar. These 2 holes are commonly used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.


Arms Fit:

  • Universal Application (in 25 spline torsion bar applications)
  • JL Wrangler Unlimited (4-door) rear Antirock Kits CE-9900JLR4
  • JL Wrangler (2-door) rear Antirock Kits CE-9900JLR4
  • XJ Cherokee front Antirock Kits CE-9900XJF
  • MJ Comanche front Antirock Kits CE-9900XJF

    • Kit Includes:


    Component Specs.:

    • Overall length = 17 in.
    • Thickness = 3/4 in. (with the exception of the tip being machined to 3/8 in. thick for end link mounting)
    • Material = 7075T6 aluminum
    • Spline count = 25
    • Center of splined hole to center of nearest 1/2 in. hole = 14.195 in.
    • Center of splined hole to center of middle 1/2 in. hole = 15.195 in.
    • Weight = 3.5 lbs. (for the pair)

    Notes:

    • These arms are for upgrading our CE-9900JLR4 JL rear Antirock Sway Bar Kits as well as our CE-9900XJF XJ Cherokee and MJ Comanche front Antirock Sway Bar Kits
    • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
    • See CE-99005A for sway bar arm hardware kit.
