RJ-202007-105 - Antirock® Sway Bar Fabricated Steel Arms (20" Long)

SKU RJ-202007-105
$135.00

Details

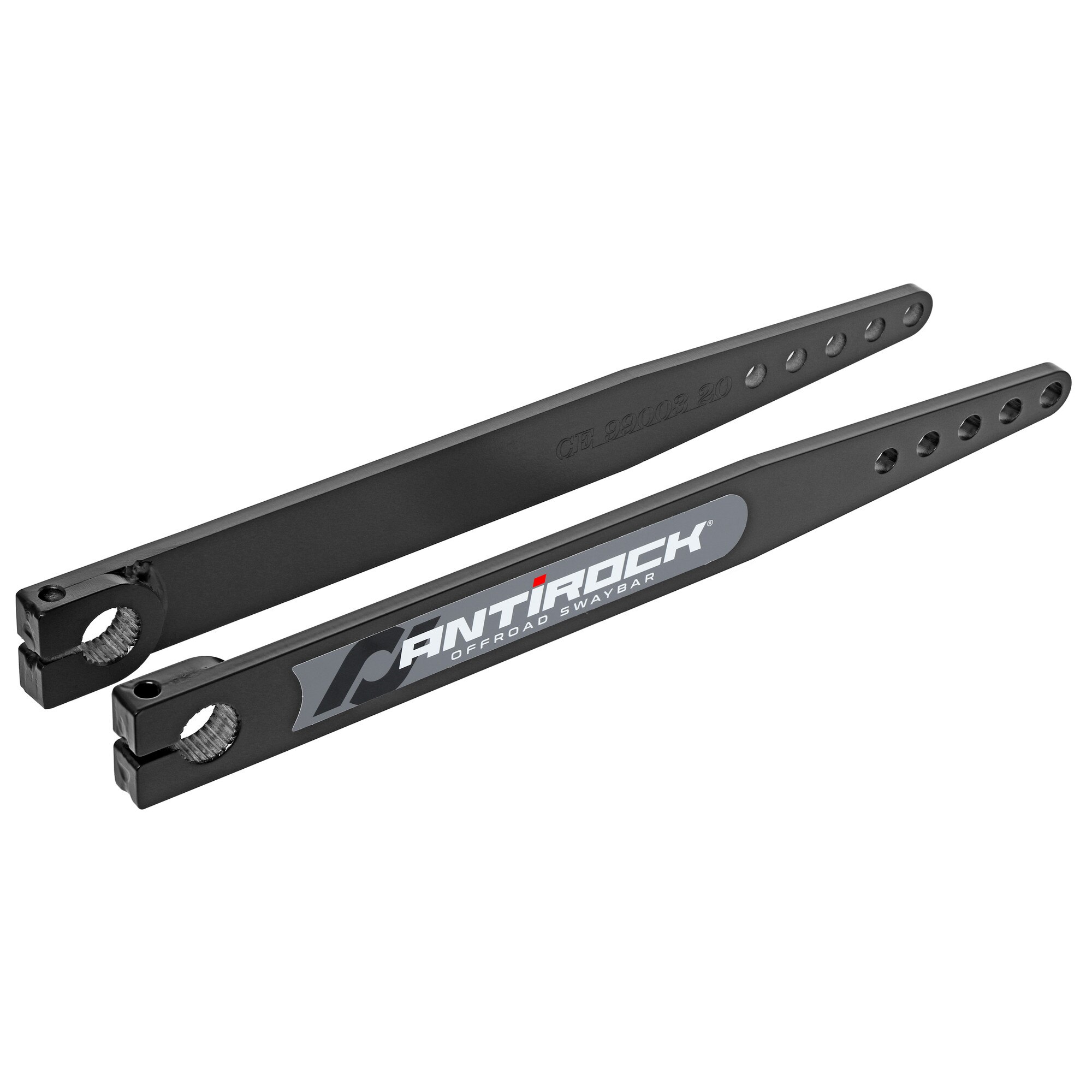

20” Fabricated Steel Antirock® Sway Bar Arms are available separately for custom builders or as replacement parts for existing kits.
These arms would be replacements for our Jeep YJ Wrangler Antirock kit.
Arms are laser cut & welded steel, 20” long, 3/8" thick and feature 5 adjustable sway bar link mounting holes, allowing them to be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit.


Arms Fit:

  • Jeep Wrangler YJ – front
  • Universal Applications

Kit Includes:

  • 20” Antirock® Sway Bar Arms (pair)
  • Arm Stickers (pair)

Specs. & Dimensions:

  • Overall length  =  20”
  • Thickness  =  3/8”
  • Material  =  laser cut steel
  • Spline count  =  25
  • Center of splined hole to center of 1/2" hole #1 (nearest)  =  14.195”
  • Center of splined hole to center of 1/2" hole #2  =  15.195”
  • Center of splined hole to center of 1/2" hole #3 (middle)  =  16.195”
  • Center of splined hole to center of 1/2" hole #4  =  17.195”
  • Center of splined hole to center of 1/2" hole #5 (farthest)  =  18.195”
  • Weight  =  9lbs. (for the pair)

Notes:

  • These are the replacement arms for a Jeep YJ front Antirock kit.
  • Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2" in arm length and the ability to offset the end link up to 1 1/4".
  • See CE-99005A for arm hardware kit.
