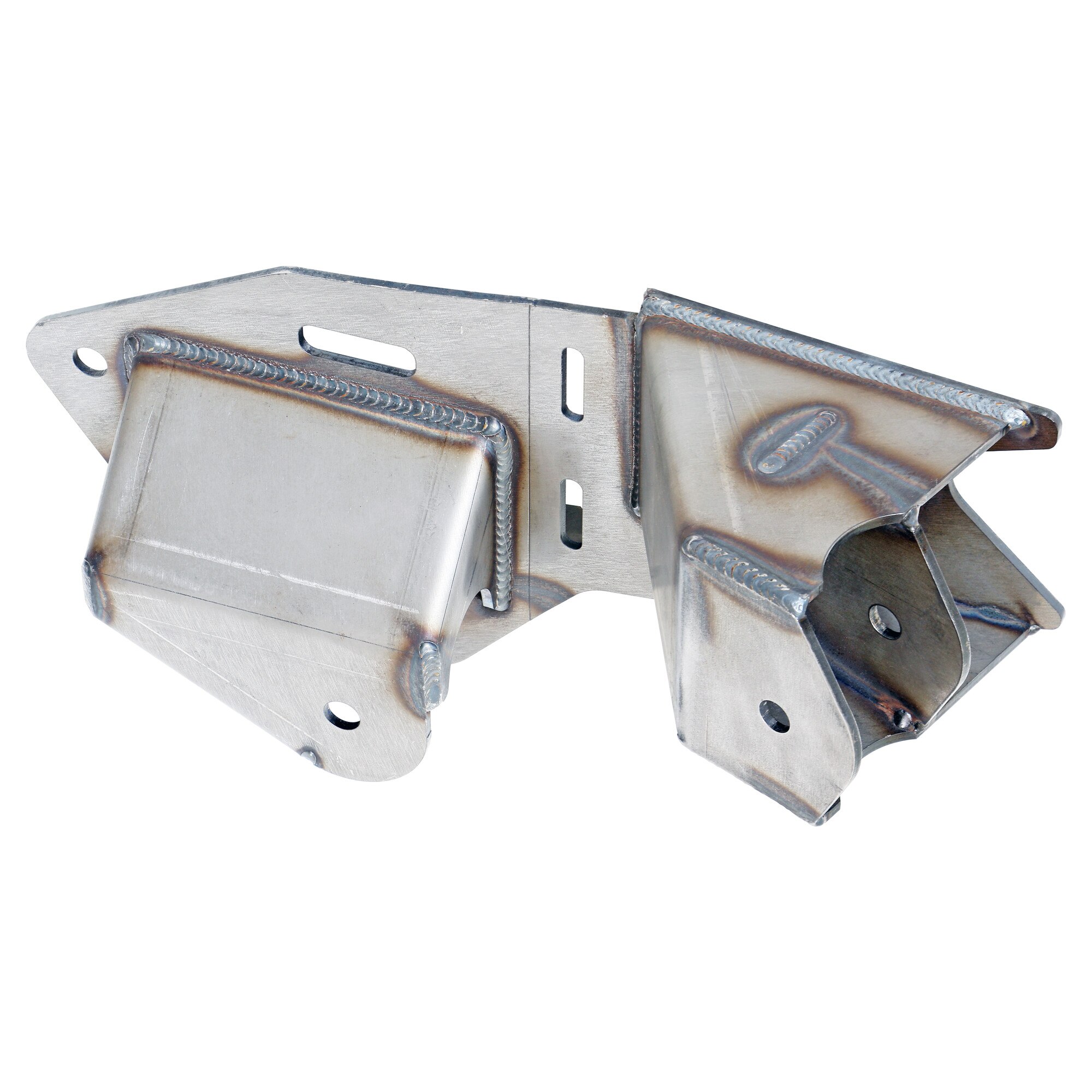

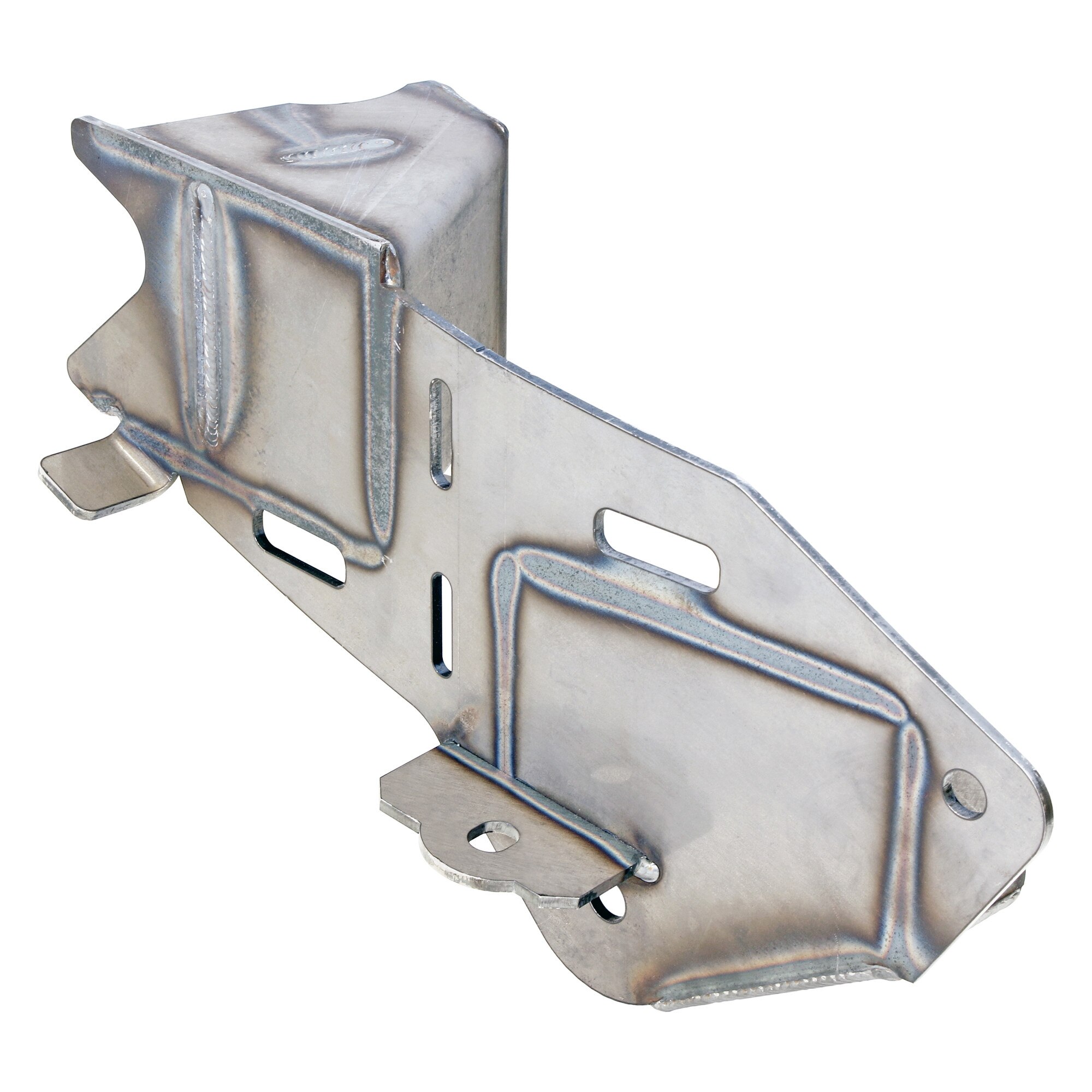

RockJock’s Left Front JL/JT Long Arm Suspension Kit Frame Bracket (only sold in our RJ-141000-101 bracket set) is laser cut and fabricated from 3/16 in. steel and is designed to give you a simple to install long arm bracket that simply just replaces your factory frame brackets.
Installation of this bracket requires your factory control arm brackets be cut off and the frame rail ground smooth, This bracket then easily indexes on the to the vehicle's frame for location for proper positioning and then gets welded on! See our installation guide for more information.
This is not an entry level installation and should only be installed by a well-equipped, experienced shop!

Kit Fits:

• JL Wrangler Unlimited (4-door) - All Models with a minimum of 70 in. wide axles
• JL Wrangler JL (2-door) - All Models with a minimum of 70 in. wide axles
• JT Gladiator - All Models with a minimum of 70 in. wide axles

Kit Includes:

• LF Long Arm Bracket

Notes:

• ***IMPORTANT*** - Our long arm components require modifications and welding to the frame of your vehicle! It is highly recommended that only a well-equipped, experienced shop perform the installation of these components!
• Due to the straight control arms featured in our long arm kit, these components are ONLY for use on vehicles with a minimum of 70 in. wide axles to retain steering radius.
• Our long arm kits are ideally designed to work with the balance of our 3.5 in. lift components.

Parts List:

• JL/JT Long Arm Frame Bracket (LF)

This bracket is used in conjunction with:

• 9/16 in.-18 x 3 1/2 in. Long Hex Bolt: RJ-511200-1
• 9/16 in.-18 Stover Lock Nut: CE-H0025

Installation Guide:

• JL/JT Long Arm Kit Guide
