  • RJ-141000-2 - JL Long Arm Body Mount Relocator (RR)

RJ-141000-2 - JL Long Arm Body Mount Relocator (RR)

Details

Details

*** NOT AVAILABLE FOR PURCHASE - only available in our JL Long Arm Suspension Bracket Set. ***

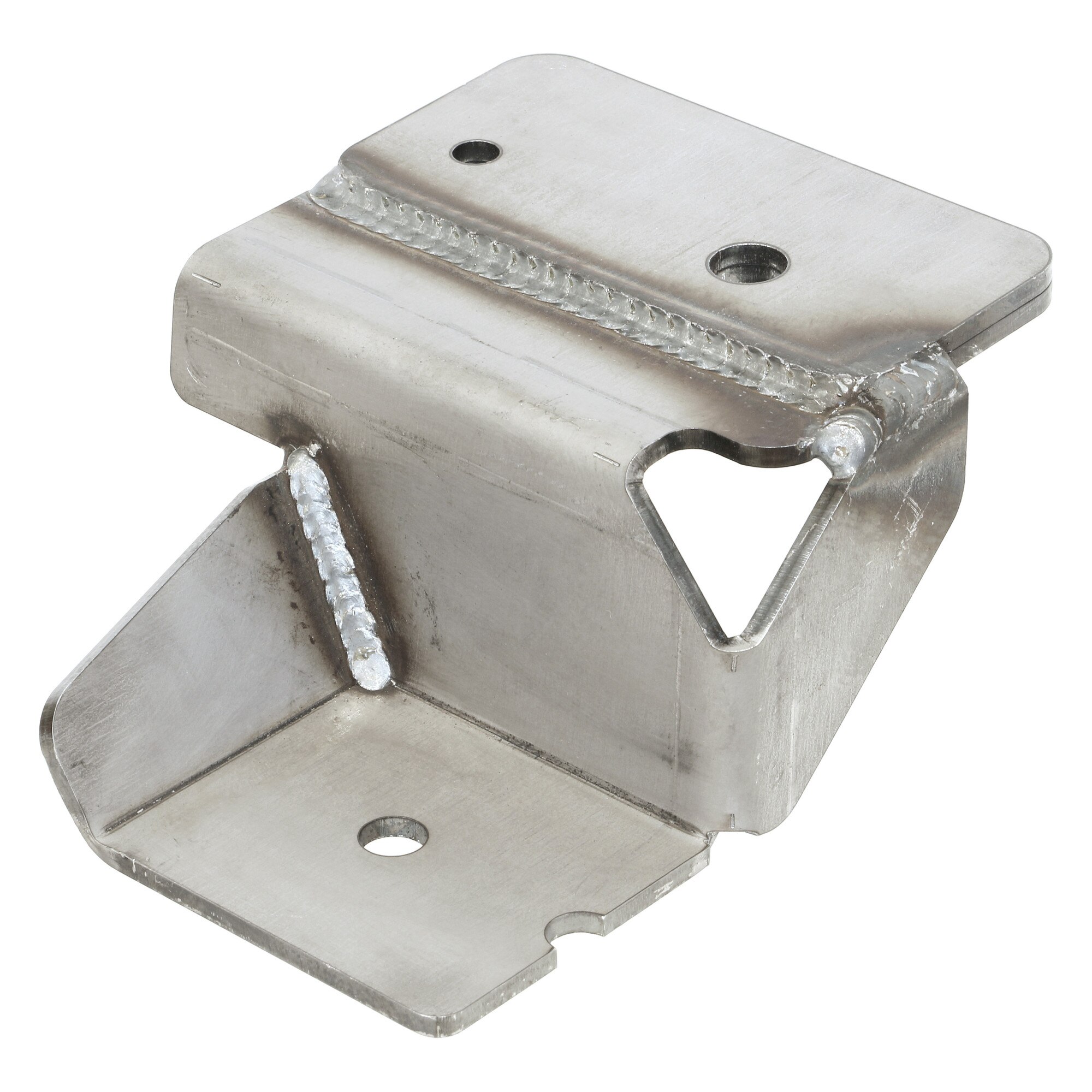

RockJock’s Right Rear JL Long Arm Suspension Kit Body Mount Relocation Bracket is laser cut and fabricated from 3/16 in. steel and is designed to give you an easy to install bracket that simply relocates your factory body mount forward to it's new location to allow room for the long arm suspension bracket to be installed.
Installation of this bracket requires you to have RockJock's rear long arm control arm bracket installed and the rearmost factory body mount that is in front of the back tire cut off and the frame rail ground smooth. The lower hole of this bracket then aligns with the original body mount hole on the floor of the body, and the bracket's upper hole lands in the body mount's new location on the floor of the body. New provided plates, washers and hardware then have you drill thru the floor of the body and bolt the body mount and the bracket into the new location. See our for more information.
This is not an entry level installation and should only be installed by a well-equipped, experienced shop!


Kit Fits:

  • JL Wrangler Unlimited (4-door) - All Models with RockJock Long Arm brackets installed
  • JL Wrangler JL (2-door) - All Models with RockJock Long Arm brackets installed

Kit Includes:

  • RR Body Mount Relocation Bracket

Notes:

  • ***IMPORTANT*** - Our long arm components require modifications and welding to the frame of your vehicle! It is highly recommended that only a well-equipped, experienced shop perform the installation of these components!
  • Due to the straight control arms featured in our long arm kit, these components are ONLY for use on vehicles with a minimum of 70 in. wide axles
  • Our long arm kits are ideally designed to work with the balance of our 3.5 in. lift components.

Parts List:

  • JL Long Arm Body Mount Relocation Bracket (RR)

This bracket is used in conjunction with:
