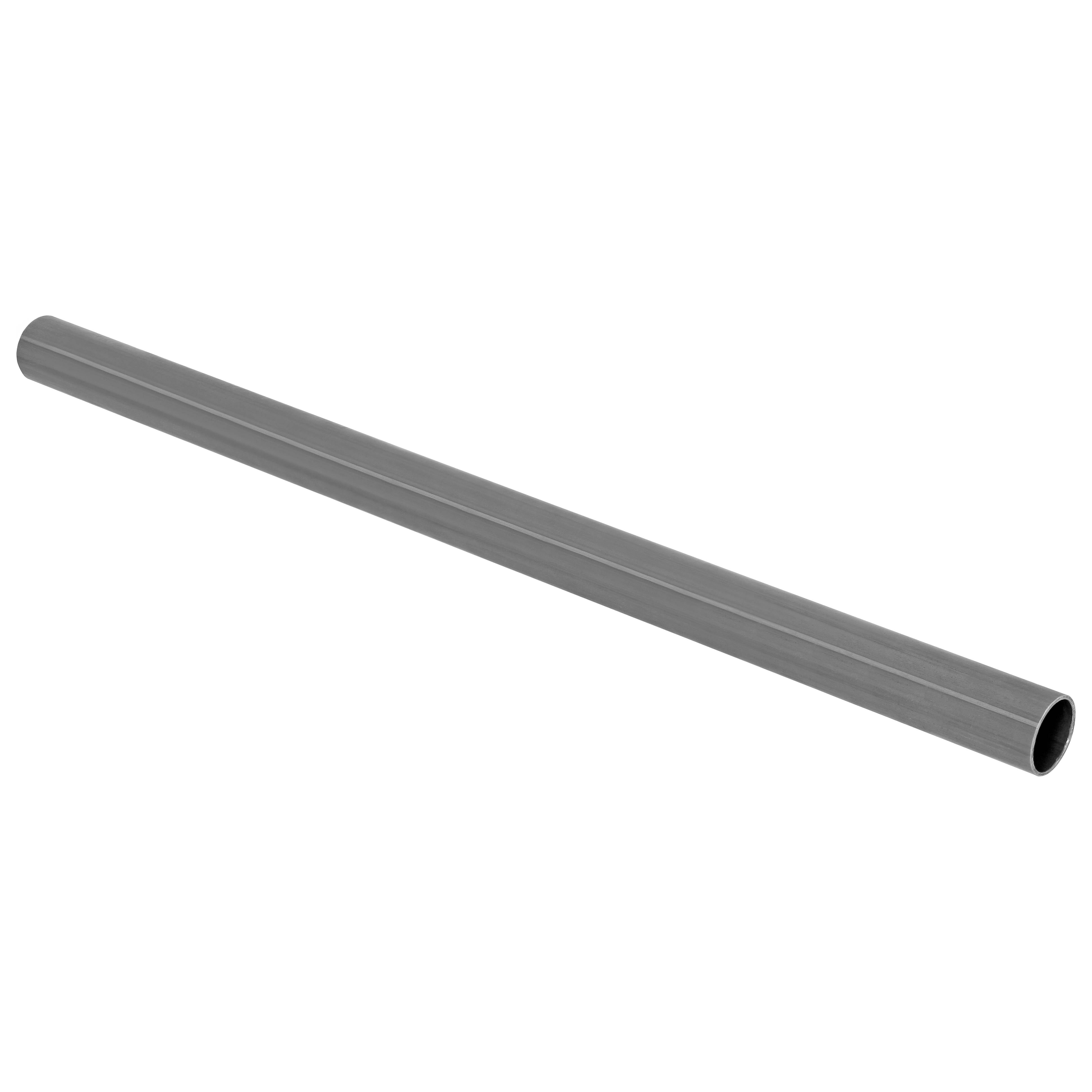

CE-9906H - Universal Antirock Mounting Tube (for 50 in. Bar)
Details
RockJock’s Universal Antirock Sway Bar Mounting Tubes are available in various lengths to accommodate all of our options of Antirock sway bar torsion bar lengths.
These weld-in tubes provide fabricators with an easy way to get an Antirock installed into a vehicle that a bolt-on Antirock kit is not offered for.
Tubes are 1 3/4 in. x .095 in. wall d.o.m. steel and feature machined trued ends to accept either our CE-9901D bushing for 25 spline bars or our RJ-207001-1 bushing for 28 spline bars.
This specific tube is 48 in. long from tip to tip to accommodate our 50 in. long sway bar torsion bar.
Kit Fits:
Kit Includes:
- (1) Universal Antirock Sway Bar Mounting Tube for 50 in. Torsion Bar
Component Specs.:
- Length = 48 in. (tip to tip)
- OD = 1 3/4 in.
- Wall Thickness = .095 in.
- Ends = machined true, chamfered to easily accept bushing
- Finish = raw steel
Notes:
- Intended for use with our 50 in. long Antirock sway bar torsion bars in 25 or 28 spline.
- Tube is designed to accept either our CE-9901D bushing for 25 spline bars or our RJ-207001-1 bushing for 28 spline bars.
- Tube maybe welded under or on top of your frame, or, some hole-saw thru the side of their frame and slide the tube thru to incorporate it as a frame crossmember. However, because the bushings that are used with this tube only feature a 1 1/4 in. press area – you technically only need 1 1/4 in. of tube per side to support the bushing and leave the bulk of the center of the bar exposed.
