• CE-9903H - Universal Antirock Mounting Tube (for 32 in. Bar)

CE-9903H - Universal Antirock Mounting Tube (for 32 in. Bar)

Details

Details

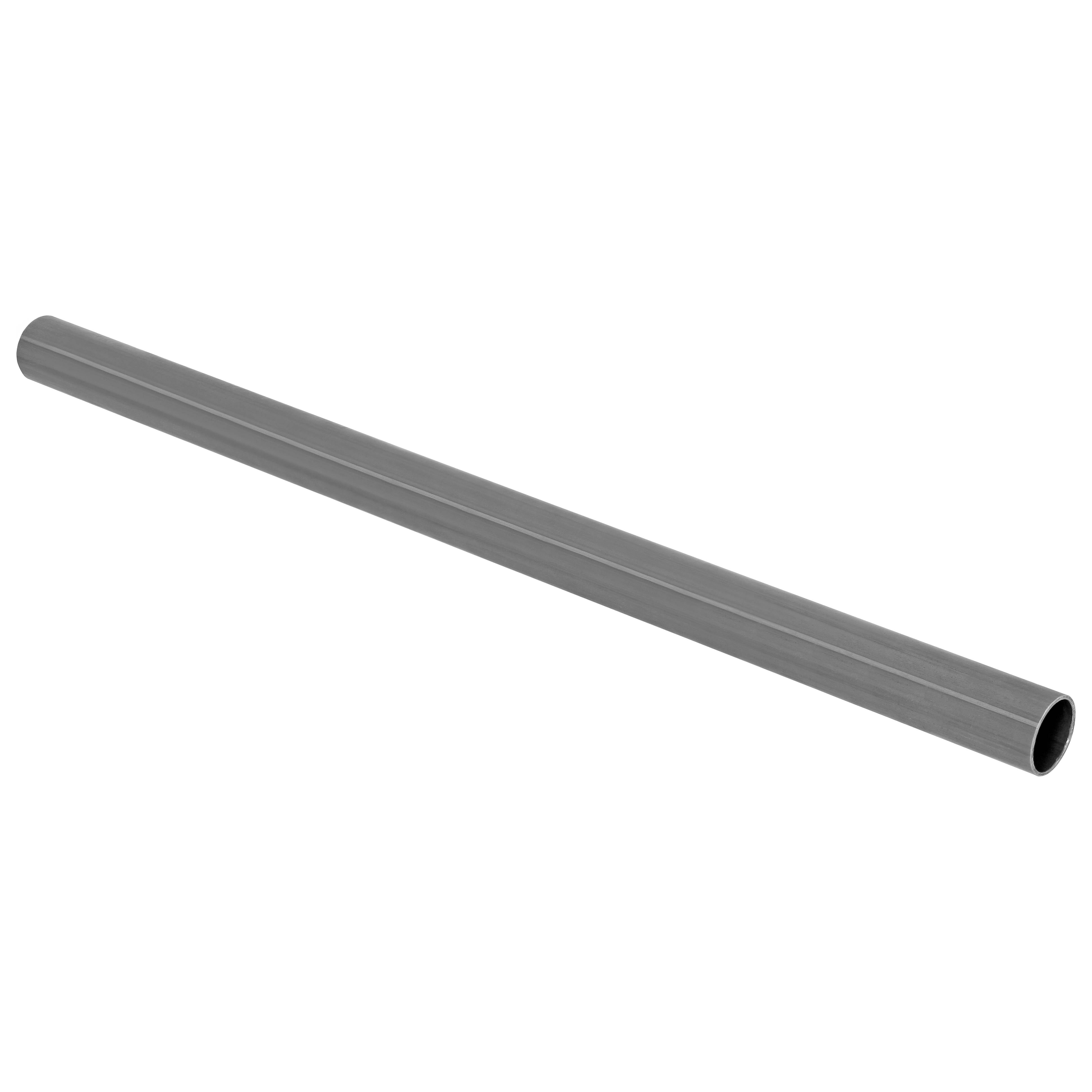

RockJock’s Universal Antirock Sway Bar Mounting Tubes are available in various lengths to accommodate all of our options of Antirock sway bar torsion bar lengths.
These weld-in tubes provide fabricators with an easy way to get an Antirock installed into a vehicle that a bolt-on Antirock kit is not offered for.
Tubes are 1 3/4 in. x .095 in. wall d.o.m. steel and feature machined trued ends to accept either our bushing for 25 spline bars or our bushing for 28 spline bars.
This specific tube is 30 in. long from tip to tip to accommodate our 32 in. long sway bar torsion bar.


Kit Fits:

  • Universal Application
  • Included in our series Universal Antirock Kits

Kit Includes:

  • (1) Universal Antirock Sway Bar Mounting Tube for 32 in. Torsion Bar

Component Specs.:

  • Length = 30 in. (tip to tip)
  • OD = 1 3/4 in.
  • Wall Thickness = .095 in.
  • Ends = machined true, chamfered to easily accept bushing
  • Finish = raw steel

Notes:

  • Intended for use with our 32 in. long Antirock sway bar torsion bar.

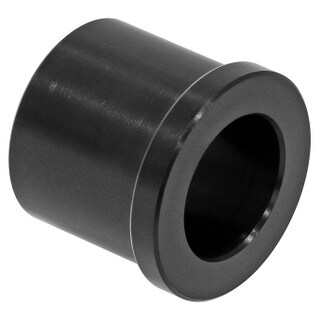

  • Tube is designed to accept our bushing for 25 spline bars.
  • Tube maybe welded under or on top of your frame, or, some hole-saw thru the side of their frame and slide the tube thru to incorporate it as a frame crossmember. However, because the bushings that are used with this tube only feature a 1 1/4 in. press area – you technically only need 1 1/4 in. of tube per side to support the bushing and leave the bulk of the center of the bar exposed.
