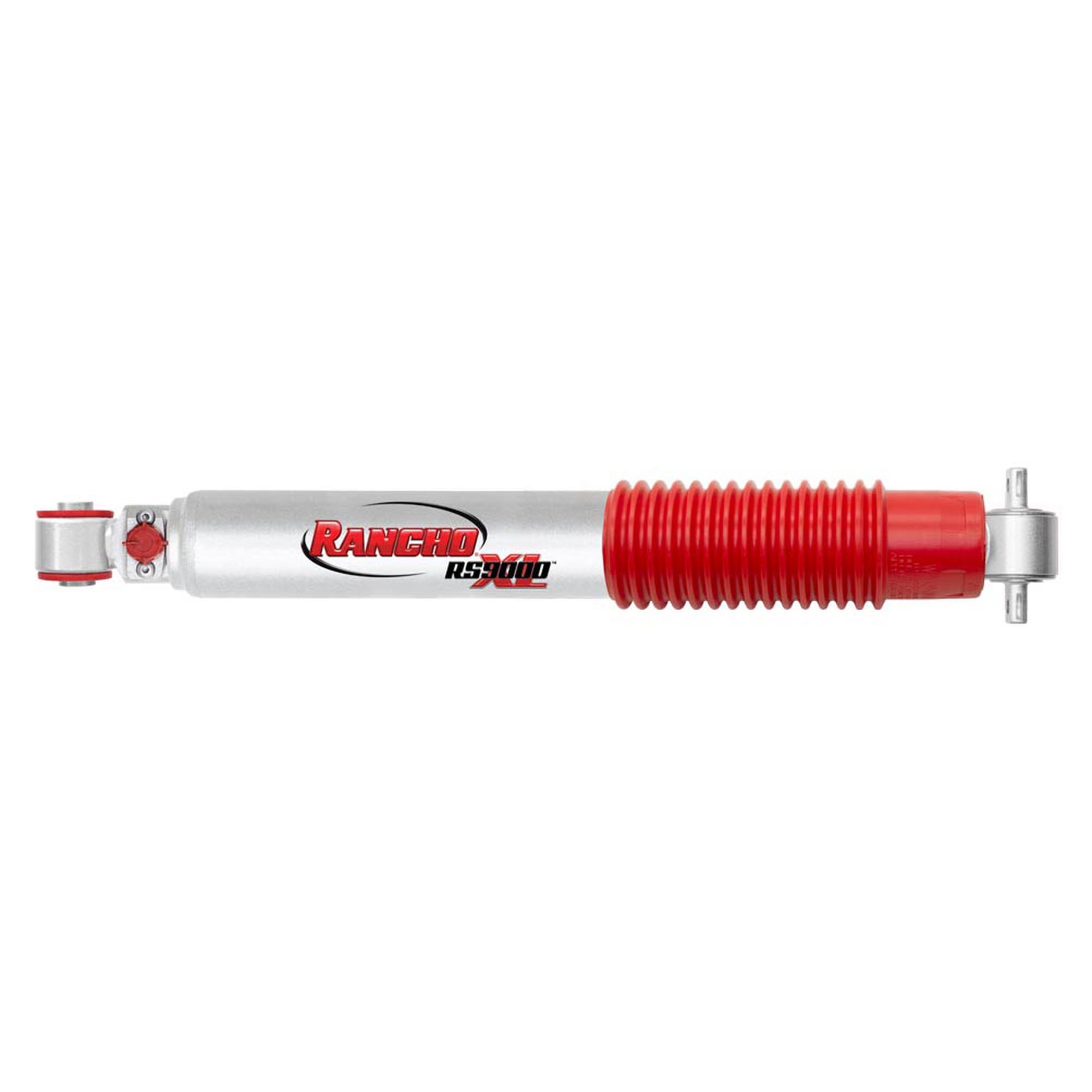

CE-9152 - Rancho RS9000XL Shock (TJ/LJ/XJ Rear for RJ Lifts)

Rancho RS9000XL Adjustable Rear Shock Absorbers for use with the RockJock TJ Wrangler and Unlimited (LJ) suspension systems, as well as our XJ Cherokee suspension systems, are a 9-position adjustable series delivers nine levels of performance to on and off-road vehicles. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S.

Shocks Fit:

• TJ Wrangler – All Models (w/ RockJock Lift)
• TJ Wrangler Unlimited (LJ) – All Models (w/ RockJock Lift)
• XJ Cherokee – All Models (w/ RockJock Lift)

Travel Specs.:

• Extended  =  24.220 in.
• Compressed  =  15.360 in.
• Travel  =  8.860 in.

Notes:

• Adjustability  =  9-position knob allows for fine tuning to your liking and application
• Lift  =  We only carry Rancho shocks that are compatible with our suspension systems
• Brake Hoses  =  Long travel shocks may overextend your brake hoses! Always cycle your suspension before operating your vehicle!
• Mounting  =  In most (TJ/LJ) bolt-on applications, use of the RockJock CE-9601 lower shock mount relocation bracket kit is mandatory
• Finish  =  Painted metallic silver
• Sold As  =  Each

Media Hub

• Installation Instruction Manual:  CE-9152 Shocks
