  • CE-91102-14 - Johnny Joint 2 1/2 in. Ball (2.585 in. x .562 in. Hole, Externally Greased)

CE-91102-14 - Johnny Joint 2 1/2 in. Ball (2.585 in. x .562 in. Hole, Externally Greased)

SKU CE-91102-14
$32.00

Details

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.
Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.
Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.
All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

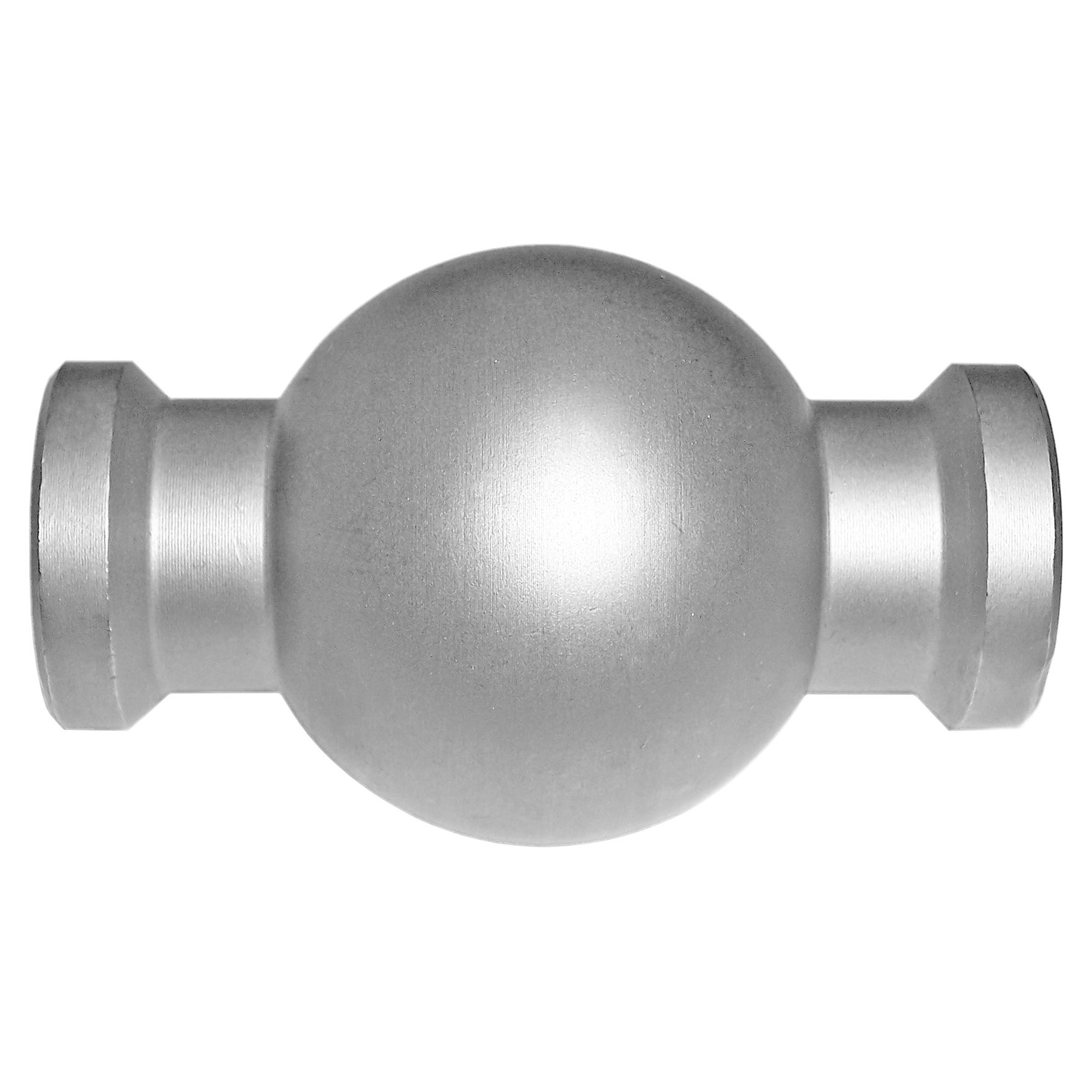

This Johnny Joint Pivot Ball for use in any 2 1/2 in. Johnny Joint outer body (narrow or wide) features CNC machined steel construction, heat treating for maximum strength and durability, a 2.585 in. overall width and a .562 in. thru hole.
This ball does not feature a grease passage for internal greasing so it is only intended for use in externally greased Johnny Joint bodies (those that feature an external grease zerk fitting on the body).



Ball Fits:

  • Universal Application
  • Some Models of Dodge Truck
  • 65-77 Impala - R upper control arms
  • 65-96 Impala - R lower control arms


Ball Includes:

  • (1) Johnny Joint Pivot Ball


Ball Features:

  • CNC machined steel construction
  • Heat treated for strength and durability
  • 2.585 in. width x .562 in. thru-hole
  • Accepts a 9/16 in. bolt
  • For use in narrow or standard width Johnny Joint bodies

Notes:

  • Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
  • Applicable Johnny Joint Tool for this component: CE-9110T
  • *** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Instruction Manual:
