CE-9076R - YJ Rear Shackle Bushing Set

Details

Details

To improve suspension performance on and off the road, you may need to replace worn shackle bushings in RockJock rear equipped 1987-1995 YJ Wranglers.
This bushing kit features the exact same high-quality Energy Suspension urethane bushings that came in the shackles new!
Bushings have fluted inner cores featuring 8 grooves to retain grease for smooth operation and longer life.

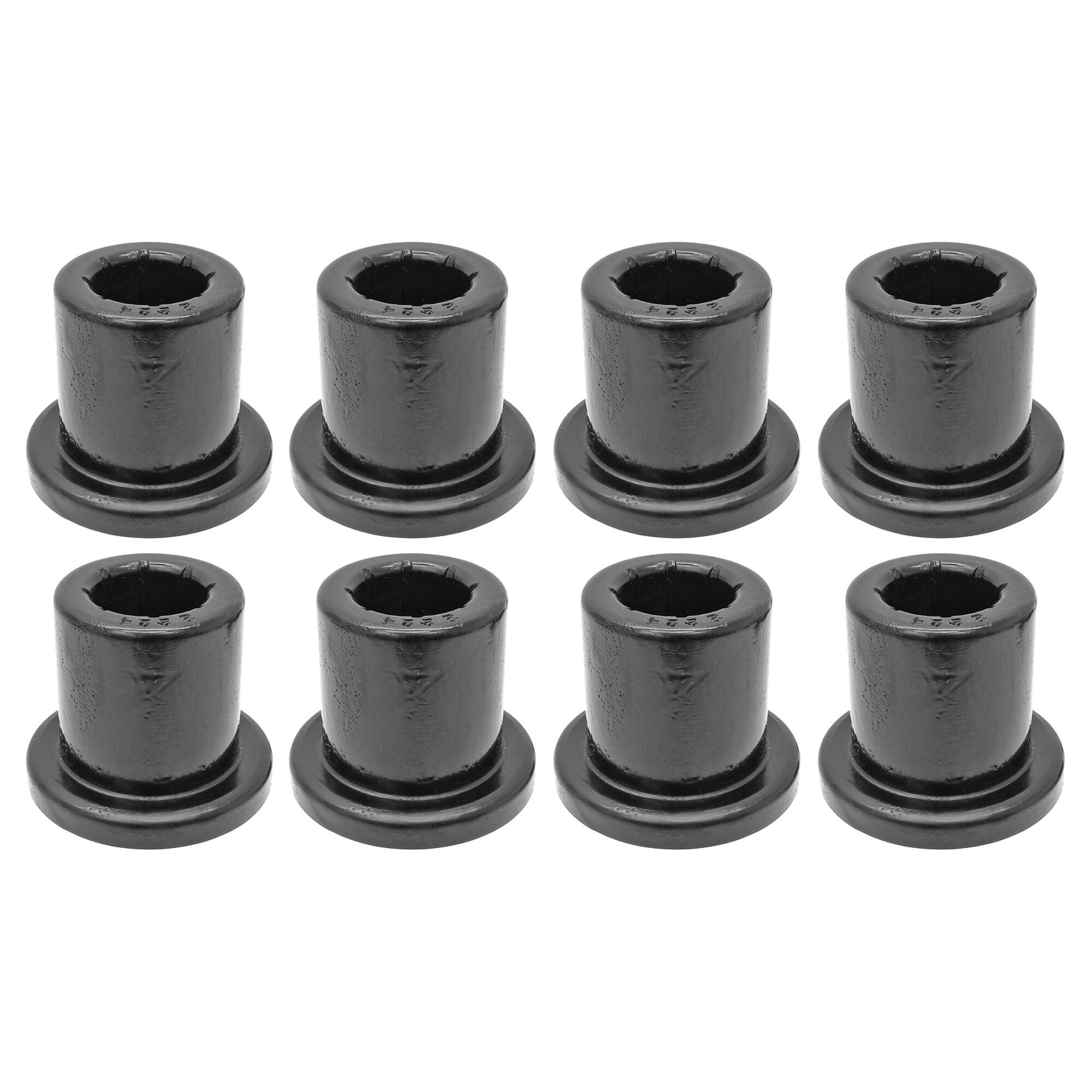

Kit includes 8 bushing halves - enough to rebuild 1 pair of shackles.


Kit Fits:

  • YJ Wrangler (w/ RockJock rear shackles and stock configuration spring eyes)

Kit Includes:

  • (8)  Urethane bushing half

Component Specs.:

  • Bushing Surface Height (that inserts into the spring)  =  1.250 in.
  • Bushing Surface O.D. (that inserts into the spring)  =  1.250 in.
  • Bushing Flange Thickness  =  .250 in.
  • Bushing Flange O.D.  =  1.750 in.
  • Bushing Thru-Hole I.D.  =  .750 in. (to accept steel inner sleeve)

Note:

  • Intended for use as replacement parts for RockJock and leaf springs that feature the stock I.D. on the spring eyes.
