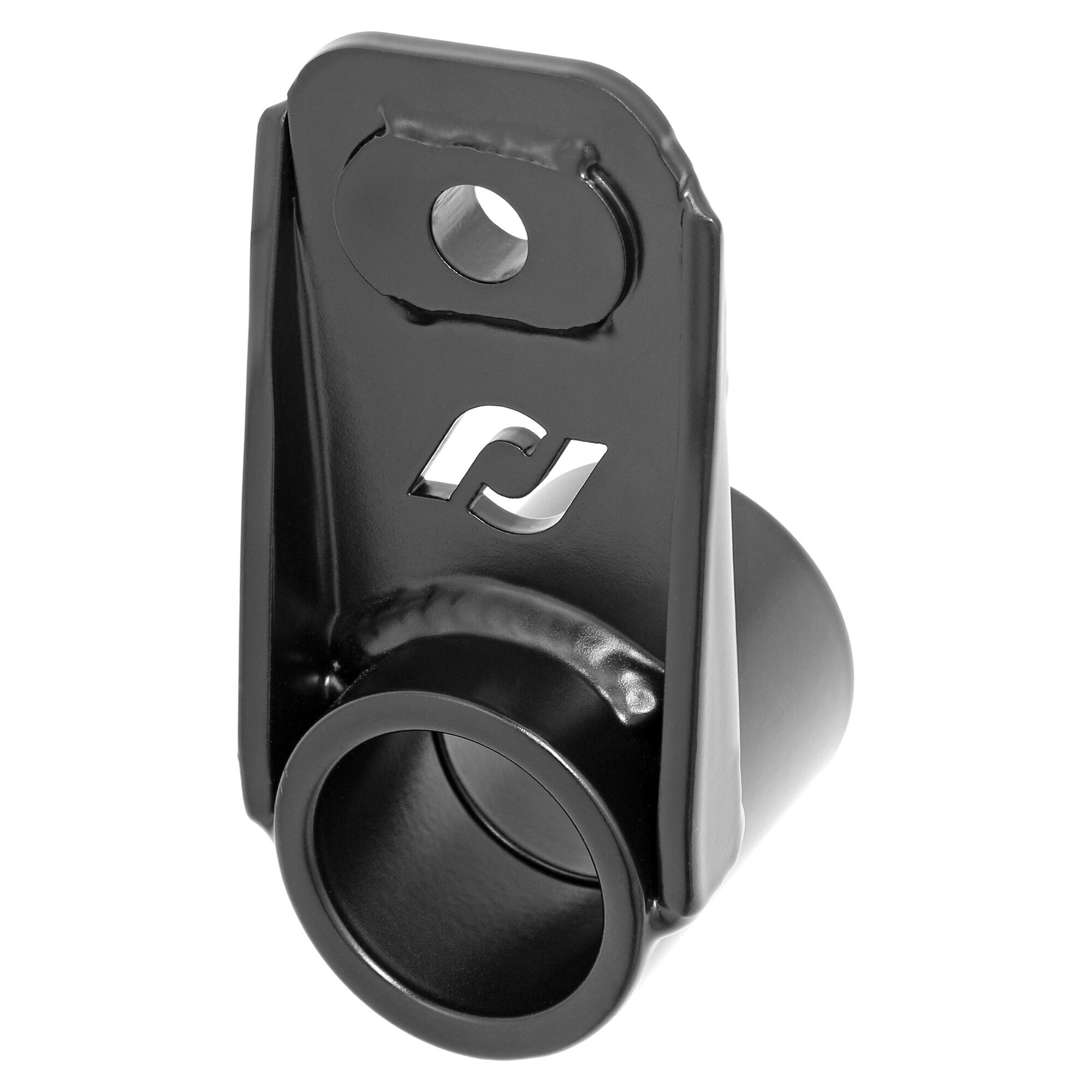

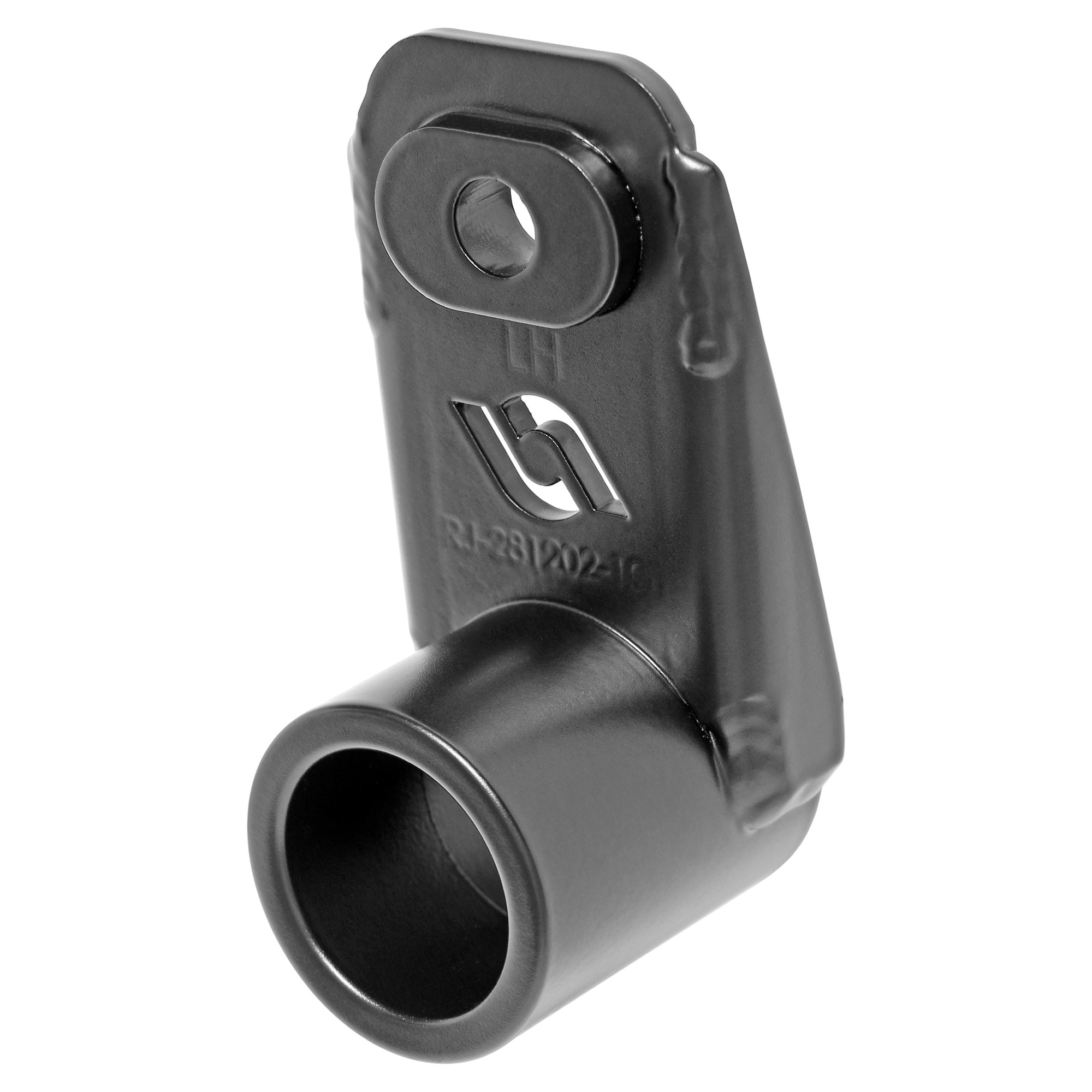

RockJock's left rear Bronco Antirock Sway Bar Frame Bracket is found in our complete Bronco Rear Antirock Kit, or may be purchased separately.
Bracket is fabricated from laser cut and formed 3/16 in. steel, welded and finished in semi-gloss black powder coat.

Bracket Fits:

• (Included in) RJ-286200-101 Bronco rear Antirock Sway Bar Kit

Kit Includes:

• (1) Bronco left rear Antirock Sway Bar Frame Bracket

Component Specs.:

• Construction = laser cut, formed and welded 3/16 in. steel
• Bushing Bore = for use with CE-9901D
• Fitment = bolts onto side of frame rail behind rear axle centerline
• Finish = semi-gloss black powder coat

Notes:

• This bracket is only intended for use with the balance of the components included in our RJ-286200-101 Bronco rear Antirock Sway Bar Kit
• Bracket installs onto the side of the frame rail behind axle center line, as per the complete sway bar kit’s instruction manual.

Mandatory Installation Components:

• 1/2 in.-20 x 1 1/2 in. Long Hex Bolt:  RJ-501201-1
• 1/2 in. Flat Washer:  CE-H0014
• 1/2 in.-20 Internal Frame Rail Nut:  RJ-522200-1

Associated Components:

• Delrin Sway Bar Bushing:  CE-9901D
• Bronco Right Rear Antirock Sway Bar Frame Bracket:  RJ-281202-102
