RJ-201001-101 - Antirock Double Shear End Link Bracket Kit (35 Spl. Pre-Runner Arms)

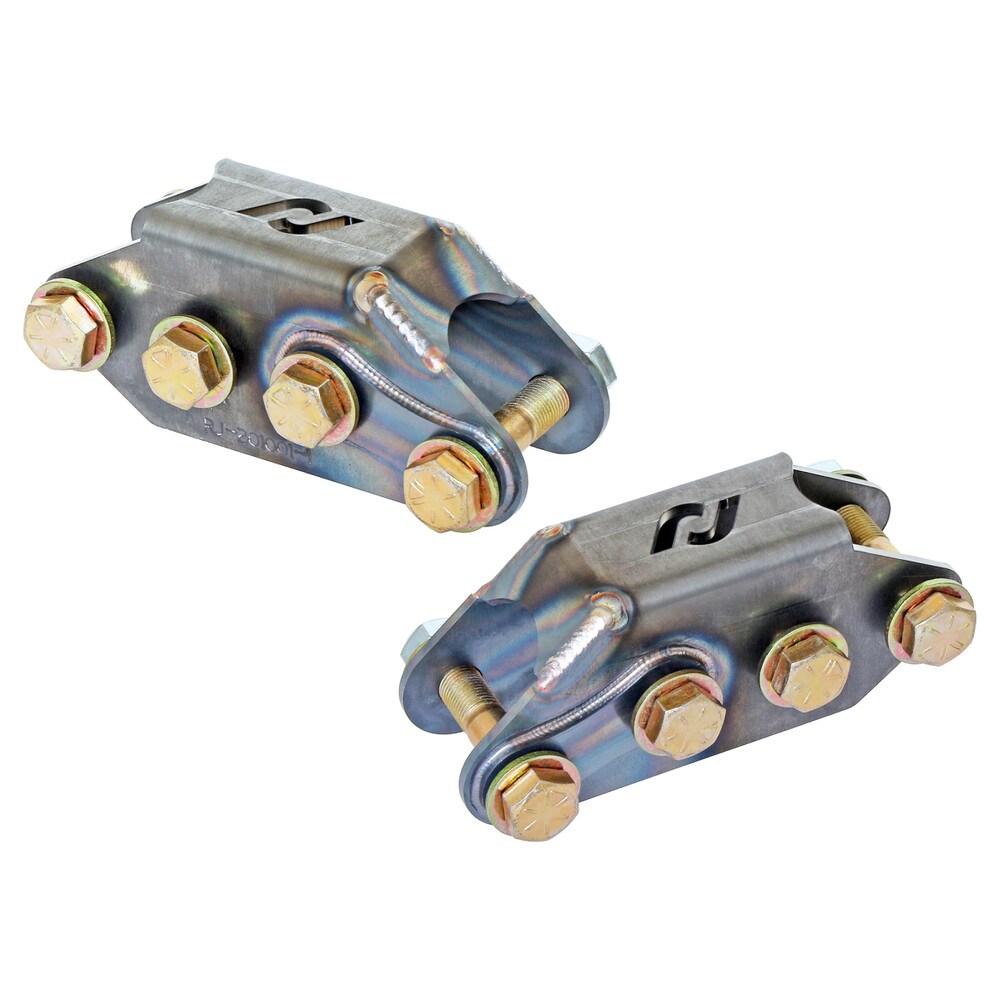

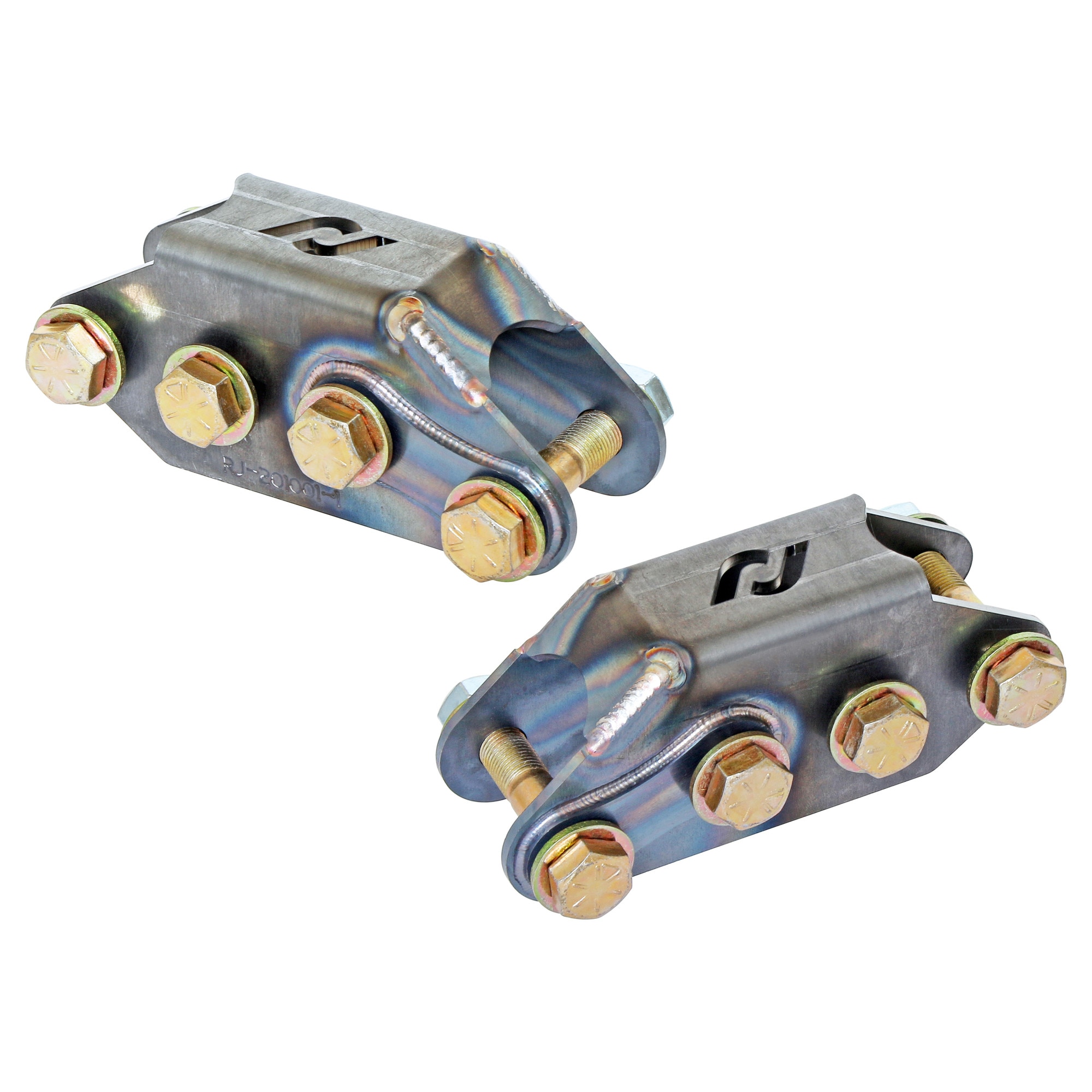

RockJock's Pre-Runner Chromoly Double Sheer End Link Bracket Kit is used in conjunction with our 35 spline Pre-Runner Antirock Sway Bar Arms.

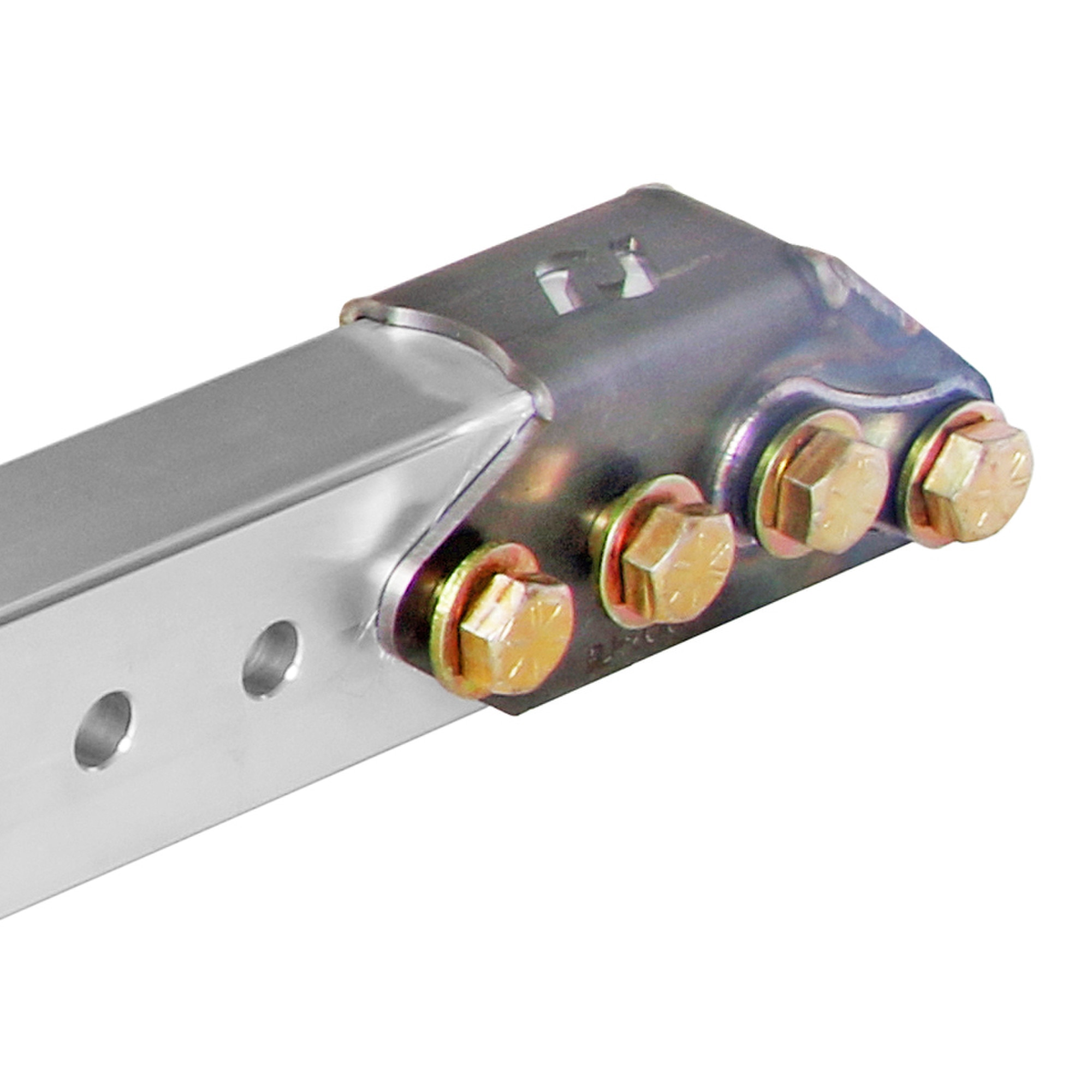

These arms bolt to 3 holes on the end of our Pre-Runner Sway bar arms and then provide a fourth hole for mounting of your sway bar end link heim joint. If you end up trimming the length of the sway bar arms, make sure to leave 3 holes available so that you are able to use this easy to install kit.
Grade 8 hardware is included, but all heim joint, misalignment spacer and sway bar end link hardware is not included.

Kit Fits:

• RockJock Pre-Runner Antirock Sway Bar Arms (RJ-202005-101)

Kit Includes:

• (2) Chromoly Double Sheer End Link Brackets
• (8) 1/2 in.-20 x 2 3/4 in. Long Grade 8 Bolts
• (16) 1/2 in. Grade 8 Flat Washers
• (8) 1/2 in.-20 Stover Nuts

Notes:

• Fitment - Fits RockJock Pre-Runner Antirock Arms only.

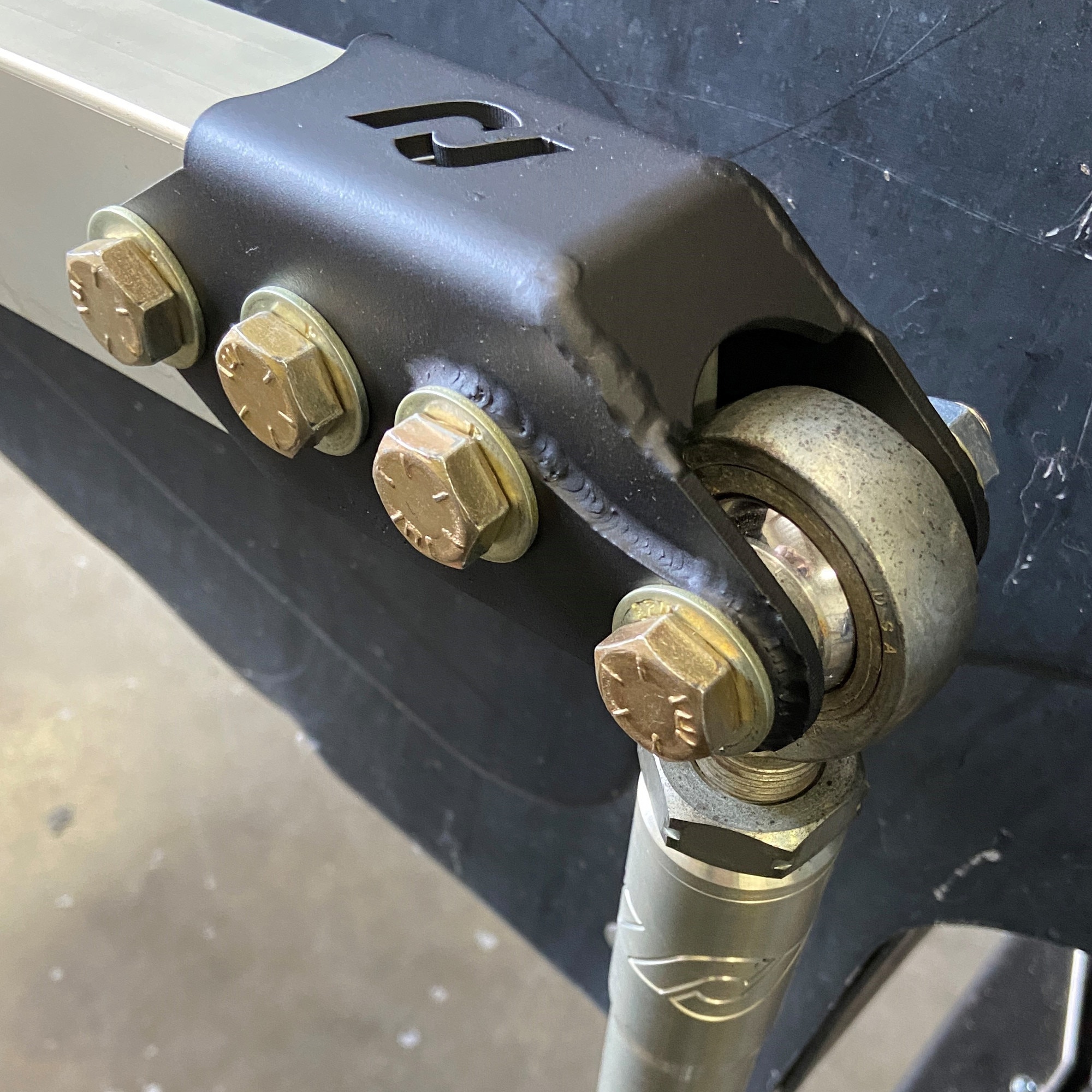

• Intended Rod End - use with a rod end that features a 1/2 in. thru hole and high-misalignment spacers to accomomdate these brackets' 1 1/2 in. gap.
• Installation - These are custom vehicle builder parts. The Sway Bar Arms may require trimming and grinding for installation of these brackets.
• End Links - Again, being that these are custom vehicle builder parts, we do not offer vertical end links or their hardware to be used in conjunction with these brackets.

Kit Includes:

• Double Sheer End Link Bracket: RJ-201001-1
• 1/2 in.-20 x 2 3/4 in. Long Hex Bolt: CE-91257A744
• 1/2 in. Flat Washer: CE-H0014
• 1/2 in.-20 Stover Nut: CE-92501A440
