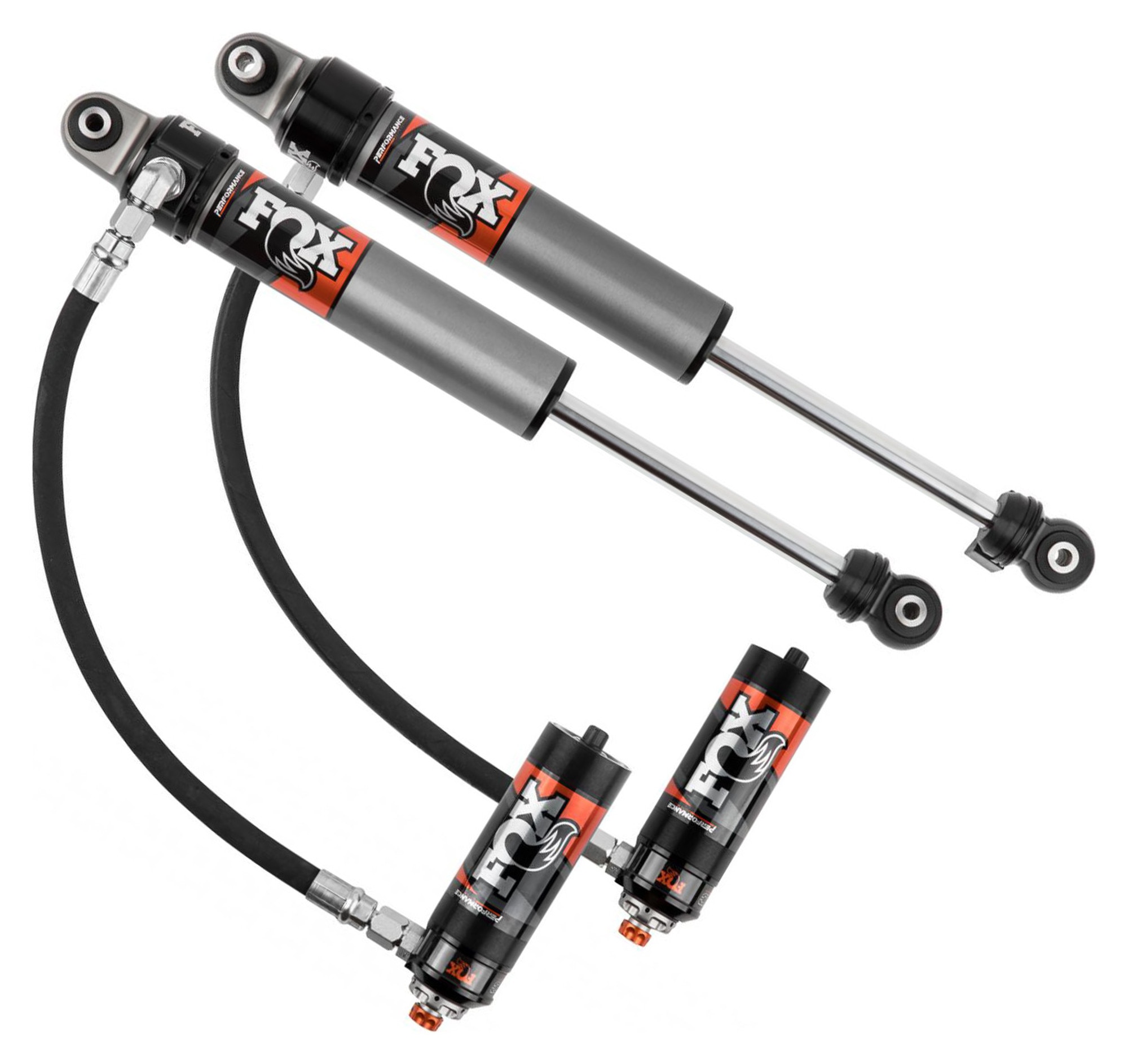

RJ-145101-101 - Fox Factory Race Series 2 1/2 in. Adjustable Reservoir Shocks (JL/JT Front for RJ Lifts)

Fox 2.5 Performance Elite Series Reservoir Smooth Body Front Shocks for use with RockJock JL Wrangler, JL Unlimited and JT Gladiator suspension systems give you enhanced ride quality and the control you need when heading off the pavement. They take their design from Fox’s Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Fox’s athletes push the boundaries in competition to develop race-proven performance you can bolt onto your JL or JT.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Fox’s complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

Shocks Fit:

• JL Wrangler Unlimited (4-door) – All Models (w/ RockJock Lift)
• JL Wrangler (2-door) – All Models (w/ RockJock Lift)
• JT Gladiator – All Models (w/ RockJock Lift)

Travel Specs.:

• Extended  =  28.510 in.
• Compressed  =  7.340 in.
• Travel  =  11.170 in.

Notes:

• Construction  =  Body is 2.5 in. impact extruded and CNC machined 6061-T6 hard anodized aluminum and ends are CNC machined 6061-T6 billet aluminum (shaft see below)
• End Bearings  =  PTFE-lined, heat-treated, alloy steel spherical
• Finish  =  Body is hard-anodized, ends are finished in black anodize
• Lift  =  We only carry Fox Shocks that are compatible with our (3.5 in.-4 in. lift) suspension kits
• Shaft  =  7/8 in. hard chrome plated heat-treated alloy steel
• Sold As  =  Pair

Media Hub

• Installation Instruction Manual:  RJ-145101-101 Shocks
